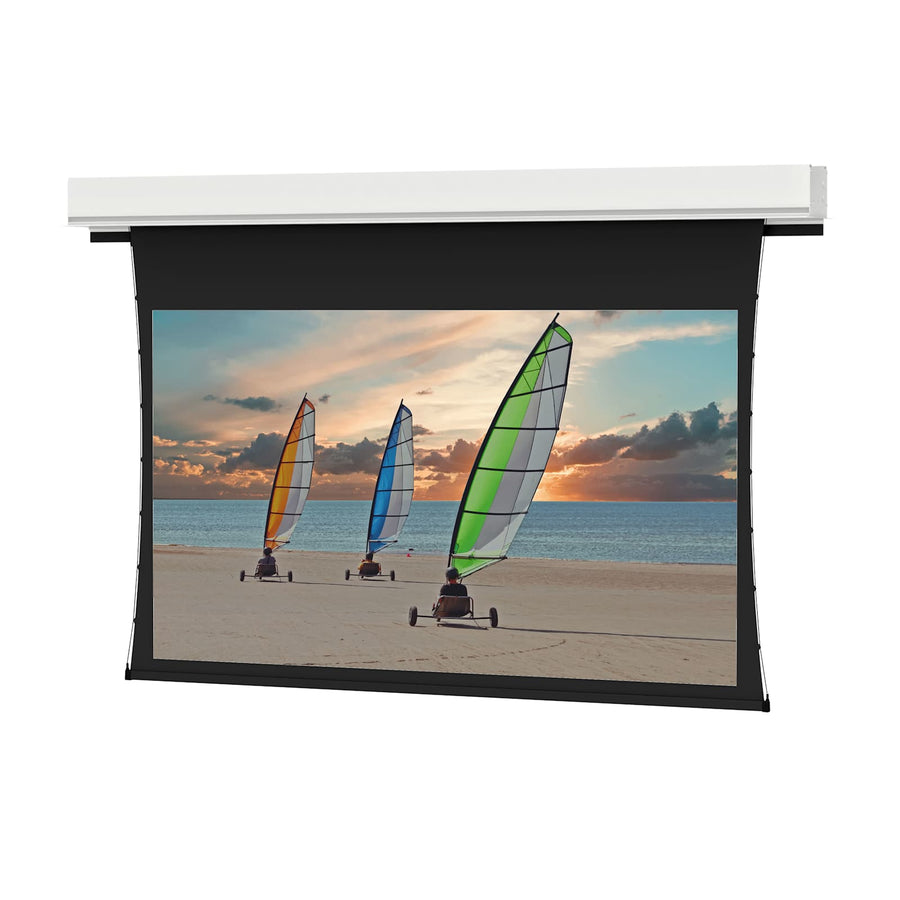

Da-Lite Tensioned Advantage Series, 100" x 160" with HD Progressive 1.3 - 24863EF
Ceiling recessed electric screen for large venues, featuring 100" x 160" dimensions and HD Progressive 1.3 surface
The Da-Lite 24863EF is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue applications. This specific SKU features a 100" x 160" dimensions (189" diagonal) and is outfitted with an HD Progressive 1.3 surface for high-resolution front projection. It is engineered for a wide 16:10 screen format and includes an automatic closure door to protect the surface when not in use. This model is a Surface, Roller, and Motor Assembly Only; the necessary case or box must be ordered separately for a complete installation. For international projects, this unit is equipped with a 220V (50Hz) motor. The series includes Smooth Roll Technology and the TruGuide™ Electric Screen Tensioning System to ensure the screen surface remains perfectly flat. This configuration features a standard black drop and is UL plenum rated. For installation, the two-stage setup allows the case to be installed during rough-in construction, while the surface assembly is mounted during the finishing stage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Screen Height | 100 in (254 cm) |
| Size | 100" x 160" or 189" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
Resources
You'll need these with it
Questions about this part
What is included in this specific part number?
This SKU (24863EF) includes the roller, motor, and screen surface assembly only; the housing case must be ordered separately.
What is the screen format and projection type?
The 24863EF is a front projection screen with a wide 16:10 aspect ratio.
Is the case suitable for plenum environments?
Yes, this series features a UL plenum rated case with a white powder-coated finish.
How is the screen surface tensioned?
It utilizes the TruGuide™ Electric Screen Tensioning System to maintain a smooth, flat surface for viewing.
What control options are available for this screen?
It includes standard Low Voltage Control (LVC), and compatible accessories like the Da-Lite 40975 Low Voltage Wall Switch are available.
