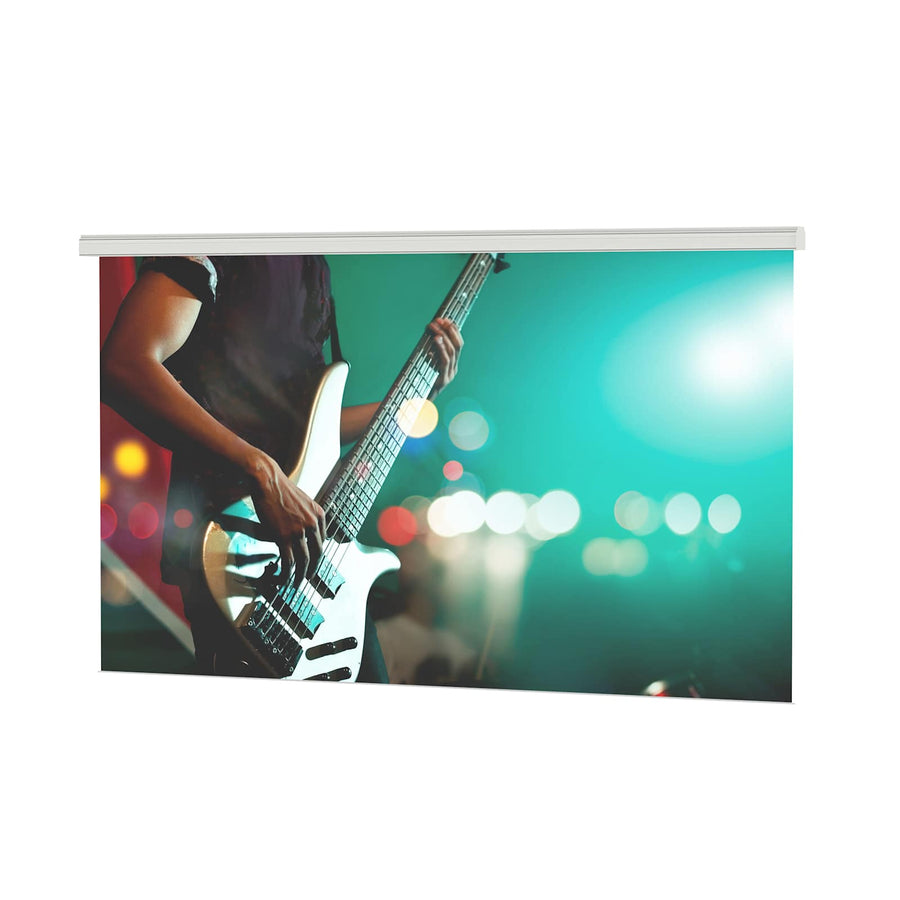

Da-Lite Studio Electrol, 234" x 312" with Matte White - 38836E
Large venue electric projection screen for auditoriums and arenas, featuring a 234" x 312" Matte White borderless surface
The Da-Lite Studio Electrol 38836E is a large-format electric projection screen designed for high-impact environments like auditoriums, stages, and arenas. This specific model features a massive 234" x 312" (390" diagonal) aspect ratio in a 4:3 video format, providing an expansive surface for front projection applications. The borderless screen surface is centered within an aluminum case with a gray finish, ensuring a clean, modern aesthetic for large-scale venues. This export-specific model is equipped with a 220V (50Hz) motor. For installation versatility, it comes with adjustable mounting brackets for ceiling applications, though wall mounting brackets can be substituted if requested at the time of order. The Matte White surface with white backing provides standard resolution performance for professional large-venue presentations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 390 in (990.6 cm) |
| Screen Height | 234 in (594.4 cm) |
| Shipping Dimensions | 338" x 15" x 12" (858.5 x 38.1 x 30.5 cm) |
| Shipping Weight | 1203 lbs (545.7 kg) |
| Size | 234" x 312" or 390" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (White Backing) |
| TAA Compliant | Yes |
| UPC | 717068010024 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
What is the mounting requirement for the Da-Lite 38836E?
This unit includes adjustable mounting brackets for ceiling installation as standard. If your project requires wall mounting, you must request wall mounting brackets at the time of order to substitute for the ceiling version.
Is this screen compatible with 120V power systems?
No, this specific SKU (38836E) is configured for export markets and features a 220V (50Hz) motor. Please verify your site voltage before ordering.
What accessories are available for controlling this screen?
You can integrate this screen with Da-Lite Radio Frequency accessories, including the 28359 single channel wall switch, the 71912 dry contact interface, or the 29243 RS-232 control interface.
What type of projection is required for this screen?
The 38836E is designed for front projection using a Matte White surface. It is specifically sized for a 4:3 video format with a 390" diagonal.
What documentation is available for installation and submittals?
Technical details can be found in the Studio Electrol Installation manual and the official Studio Electrol Specification Sheet available in the resources tab.
