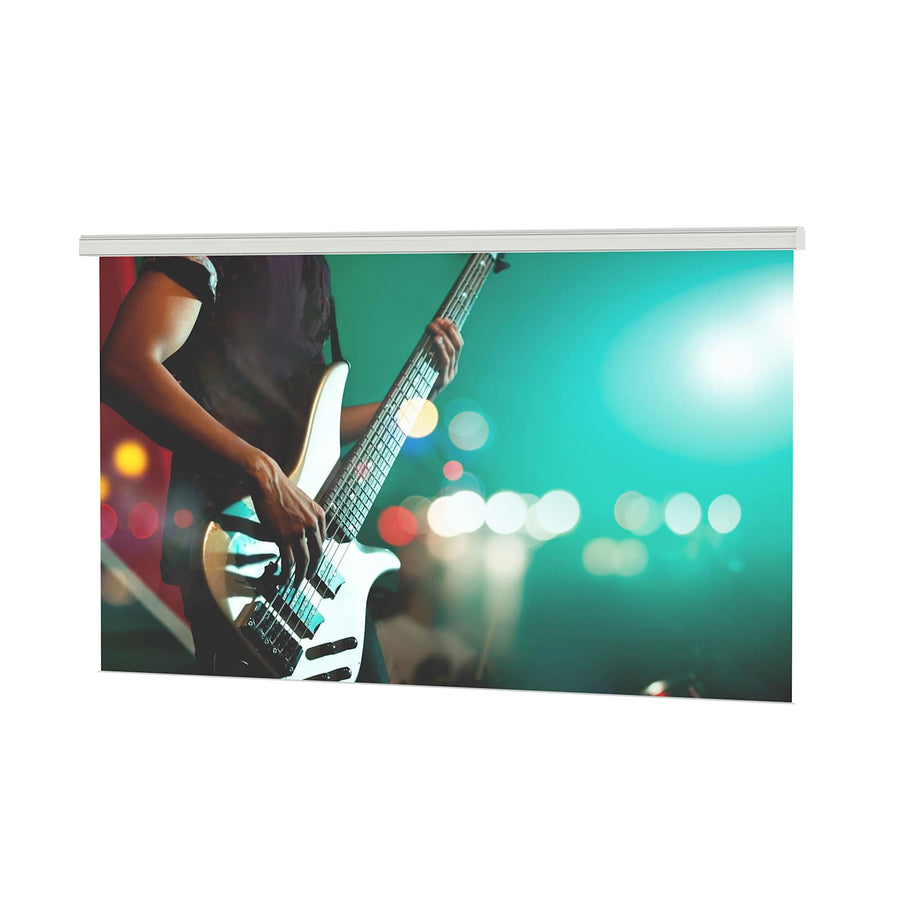

Da-Lite Studio Electrol, 216" x 384" with Perforated Matte White - 20808
Large venue electric screen measuring 216" x 384" with a Perforated Matte White acoustically transparent surface
The Da-Lite Studio Electrol 20808 is a high-performance electric screen designed for large venue applications such as arenas, stages, and auditoriums. This 216" x 384" (440" diagonal) model features a Perforated Matte White surface that is both acoustically transparent and high resolution, making it suitable for front projection in environments where audio pass-through is required. The screen surface is borderless and is centered within an aluminum case with a gray finish. For US-based installations, this model includes a standard 120V (60Hz) motor and comes supplied with a radio frequency remote control. This TAA compliant solution is built for durability and high-quality projection in demanding professional spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 440 in (1,117.6 cm) |
| Screen Height | 216 in (548.6 cm) |
| Shipping Weight | 1442 lbs (654.1 kg) |
| Size | 216" x 384" or 440" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Acoustically TransparentHigh Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Perforated Matte White |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will this Studio Electrol screen work with front projection?
Yes, this 216" x 384" model is specifically designed for front projection applications in large venues.
What is the mounting requirement for the 20808?
The unit includes adjustable mounting brackets for standard ceiling installation. If you require wall installation, you must request adjustable wall mounting brackets at the time of order.
What control options are available for this motor?
This SKU includes a standard radio frequency remote control. You can also add a Da-Lite Radio Frequency Single Channel Wall Switch (SKU 28359) or a Dry Contact Interface (SKU 71912) for wired control.
Does this screen provide acoustic transparency?
Yes, the Perforated Matte White surface is engineered to be acoustically transparent for professional audio integration.
Is this product TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
