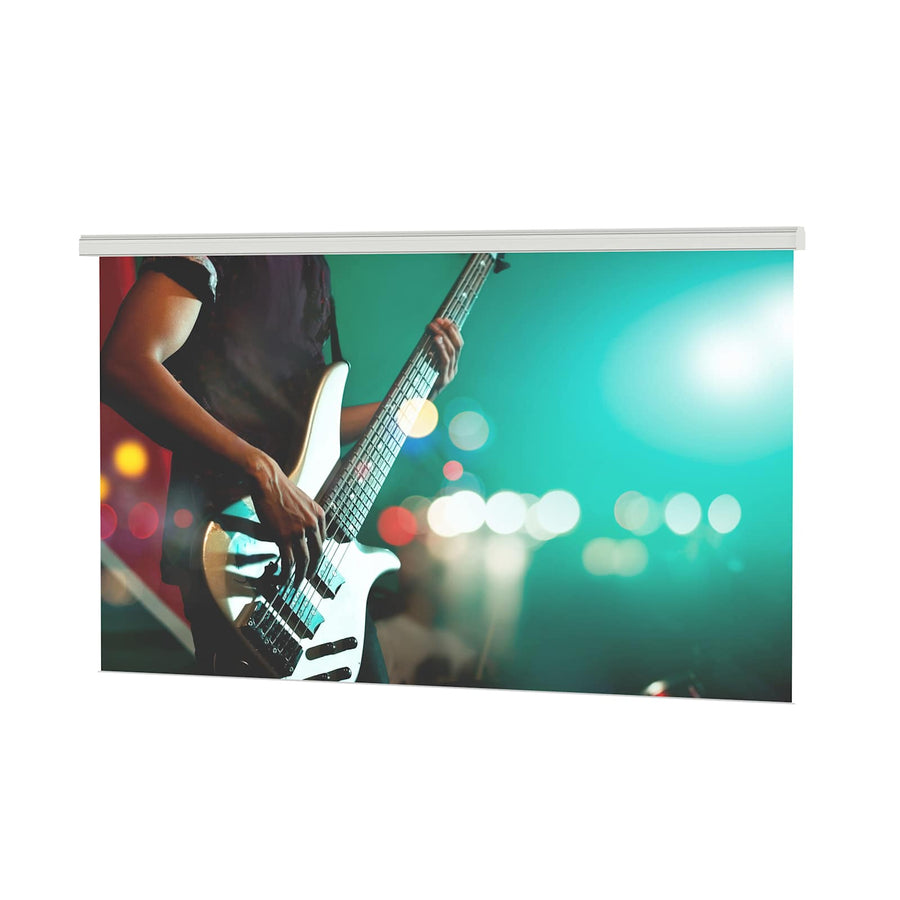

Da-Lite Studio Electrol, 189" x 336" with Perforated Matte White - 20806E
Large format electric projection screen with Perforated Matte White surface, measuring 189" x 336" for professional venues
The Da-Lite 20806E Studio Electrol is a high-performance electric projection screen designed for large-scale applications such as auditoriums, stages, and arenas. This 385 in (977.9 cm) diagonal screen features a 189 in (480.1 cm) height and a 16:9 HDTV format. It utilizes a Perforated Matte White surface, which is both acoustically transparent and high resolution, making it an excellent choice for professional audio-visual environments. The borderless screen surface is centered within a gray finish aluminum case. This specific model is configured with a 220V (50Hz) motor for export and is TAA compliant. For installation, the unit includes adjustable mounting brackets for ceiling applications as standard. While wall installation is possible, these specific brackets must be requested at the time of order to substitute the standard ceiling hardware. This large venue solution provides a professional, high-resolution viewing experience for expansive projection needs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 385 in (977.9 cm) |
| Screen Height | 189 in (480.1 cm) |
| Shipping Dimensions | 362" x 15" x 12" (919.5 x 38.1 x 30.5 cm) |
| Shipping Weight | 1269 lbs (575.6 kg) |
| Size | 189" x 336" or 385" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Acoustically TransparentHigh Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Perforated Matte White |
| TAA Compliant | Yes |
| UPC | 717068364028 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
This Studio Electrol model is designed specifically for Front Projection using a high-resolution, acoustically transparent Perforated Matte White surface.
This Studio Electrol model is designed specifically for Front Projection using a high-resolution, acoustically transparent Perforated Matte White surface.
What is the motor specification for this export model?
This 20806E SKU is equipped with a 220V (50Hz) motor intended for export markets.
Can I mount this screen on a wall instead of the ceiling?
While adjustable ceiling mounting brackets are included as standard, wall installation requires substituting these for wall mounting brackets, which must be requested when ordering.
Is this screen TAA compliant for government contracts?
Yes, the 20806E is TAA compliant and is of US origin.
What accessories are compatible with the Studio Electrol series?
You can integrate the screen with Da-Lite Radio Frequency accessories, including a single channel wall switch (28359), a dry contact interface (71912), or an RS-232 control (29243).
