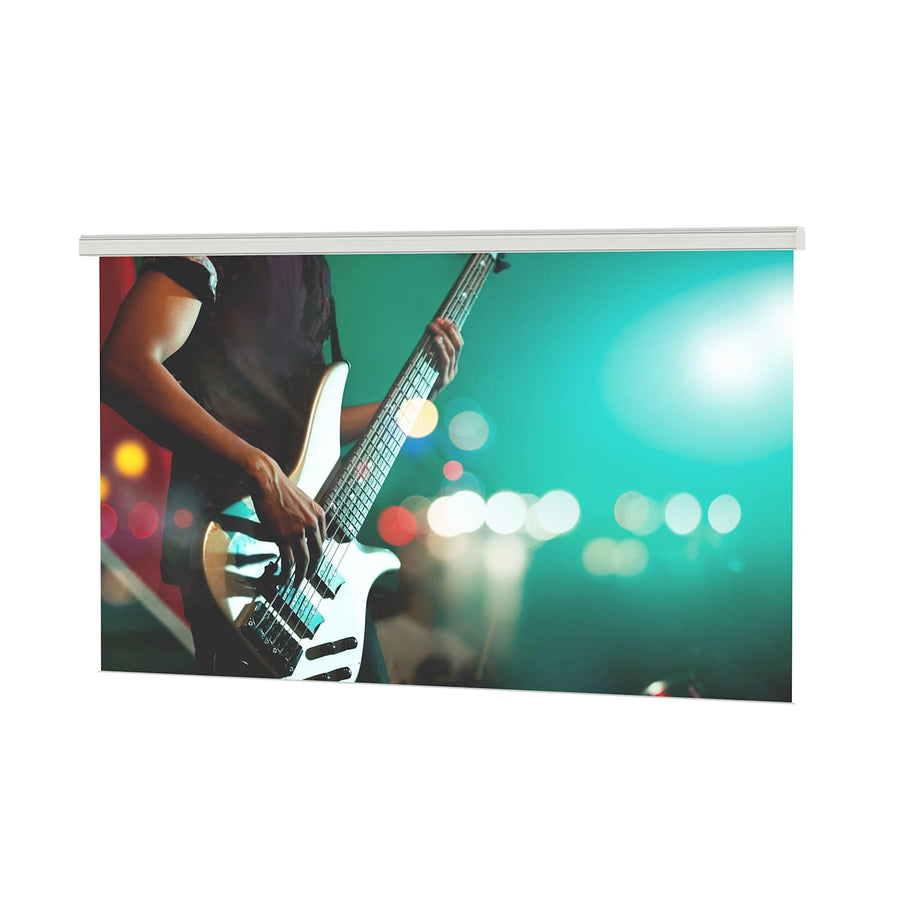

Da-Lite Studio Electrol, 176" x 312" with Perforated Matte White - 20805E
Large venue electric screen for auditoriums and arenas, featuring a 176" x 312" perforated matte white acoustically transparent surface
The Da-Lite 20805E is a Studio Electrol series electric projection screen designed for large venue applications such as auditoriums, stages, and arenas. This specific model features a 176" x 312" (359" diagonal) screen area with a Perforated Matte White surface. Because the surface is acoustically transparent, it is suitable for high-resolution front projection in environments where audio must pass through the screen. The design utilizes a borderless screen surface that is centered within an aluminum case with a gray finish. This unit is TAA compliant and is built for high-performance front projection. For international requirements, this model is equipped with a 220V (50Hz) motor for export. This screen can be installed in either ceiling or wall configurations depending on the mounting hardware selected. Note that while adjustable mounting brackets for ceiling installation are standard, wall installation brackets can be substituted if requested at the time of order.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 359 in (911.9 cm) |
| Screen Height | 176 in (447 cm) |
| Shipping Dimensions | 338" x 15" x 12" (858.5 x 38.1 x 30.5 cm) |
| Shipping Weight | 1195 lbs (542 kg) |
| Size | 176" x 312" or 359" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Acoustically TransparentHigh Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Perforated Matte White |
| TAA Compliant | Yes |
| UPC | 717068364011 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will this screen work for front projection in an auditorium?
Yes, the 20805E is designed for large venue front projection. Its Perforated Matte White surface is acoustically transparent, allowing audio to pass through the screen material.
What is the difference between the ceiling and wall mounting options?
Standard units ship with adjustable mounting brackets for ceiling installation. For wall mounting, you must request the specific wall installation brackets at the time of your order.
Does this model include a remote control?
Models sold in the US include a Radio Frequency remote control. This specific 20805E export model is equipped with a 220V (50Hz) motor.
What accessories are needed for integrated control?
You can integrate this screen into a wireline system using accessories like the Da-Lite Radio Frequency Single Channel Wall Switch (SKU 28359) or the Radio Frequency RS-232 Control (SKU 29243).
Is this product TAA compliant?
Yes, the 20805E is TAA compliant and is manufactured in the US.
