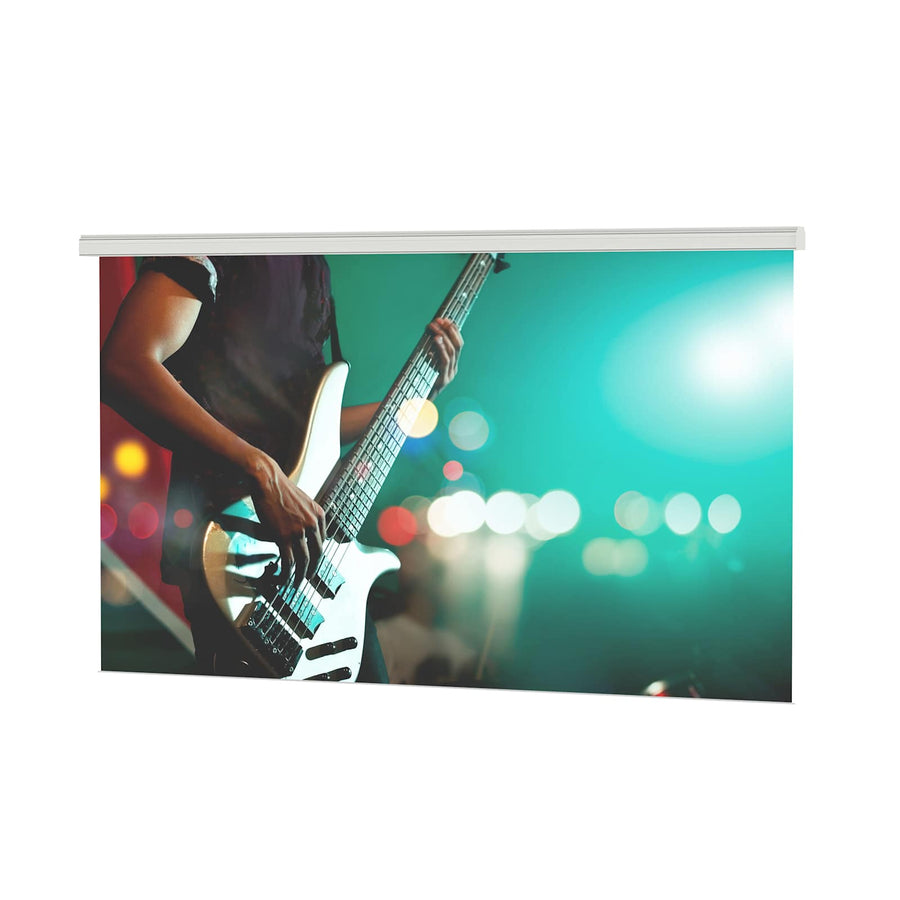

Da-Lite Studio Electrol, 176" x 312" with Perforated Matte White - 20805
Large venue electric projection screen, 176" x 312" with acoustically transparent Perforated Matte White surface
The Da-Lite Studio Electrol 20805 is a large venue electric projection screen designed for auditoriums, stages, and arenas. This 176" x 312" (359" diagonal) screen features a borderless surface centered within the aluminum housing for a clean aesthetic. It is configured with a 16:9 HDTV screen format and a Perforated Matte White surface that provides both high resolution and acoustic transparency. This unit is powered by a standard 120V (60Hz) motor and is suitable for both ceiling and wall applications. For ceiling installations, adjustable mounting brackets are included as standard. If you require wall mounting, the adjustable brackets can be substituted at the time of order. This TAA compliant product is manufactured in the US and is intended for front projection setups where large-format, high-quality imagery is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 359 in (911.9 cm) |
| Screen Height | 176 in (447 cm) |
| Shipping Weight | 1195 lbs (542 kg) |
| Size | 176" x 312" or 359" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Acoustically TransparentHigh Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Perforated Matte White |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Can the 20805 be mounted on a wall instead of the ceiling?
Yes, while adjustable mounting brackets for ceiling installation are standard, wall mounting brackets can be substituted if requested at the time of order.
What type of control interface is compatible with this Studio Electrol screen?
This model is compatible with various Da-Lite accessories, including the 28359 Radio Frequency Single Channel Wall Switch, the 71912 Dry Contact Interface, and the 29243 RS-232 Control.
Is this screen suitable for audio-integrated setups?
The Perforated Matte White surface is acoustically transparent, allowing for audio to pass through the screen for better sound reinforcement in large venues.
Does the 20805 come with a remote control?
Models sold in the US are supplied with a Radio frequency remote control for the motor.
What is required for installation of this large venue screen?
The screen requires a standard 120V (60Hz) power source and utilizes adjustable mounting brackets for either ceiling or wall applications.
