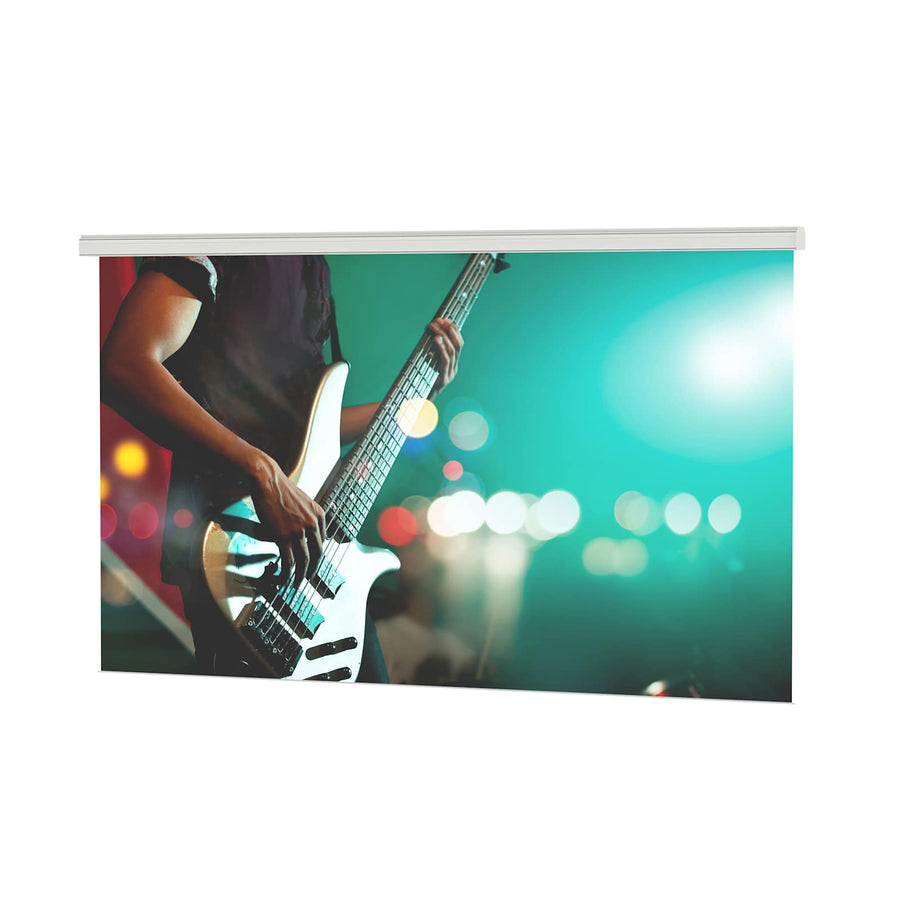

Da-Lite Studio Electrol, 176" x 312" with Matte White - 38837E
Large venue electric projection screen with 176" x 312" dimensions and Matte White surface for front projection
The Da-Lite 38837E is a Studio Electrol series electric projection screen designed for large venue applications such as arenas, stages, and auditoriums. This 176" x 312" (359" diagonal) screen features a borderless screen surface that is centered within the aluminum housing. The housing has a gray finish, though black or white finishes can be requested at an additional charge. This specific model is configured for international export, utilizing a 220V (50Hz) motor. The screen surface is a Matte White with white backing, optimized for standard resolution front projection in an HDTV (16:9) format. For installation, this unit ships with adjustable mounting brackets standard for ceiling applications. If a wall installation is required, adjustable mounting brackets for wall installation can be substituted for the ceiling brackets and must be requested at the time of order. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 359 in (911.9 cm) |
| Screen Height | 176 in (447 cm) |
| Shipping Dimensions | 338" x 15" x 12" (858.5 x 38.1 x 30.5 cm) |
| Shipping Weight | 1195 lbs (542 kg) |
| Size | 176" x 312" or 359" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (White Backing) |
| TAA Compliant | Yes |
| UPC | 717068010048 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will this Studio Electrol screen work for front projection?
Yes, the 38837E is designed for front projection and features a Matte White surface with white backing in a 16:9 HDTV format.
Can I mount this screen on a wall instead of the ceiling?
While it comes with adjustable mounting brackets for ceiling installation, you can request a substitution of wall installation brackets at the time of order.
What motor voltage is included with the 38837E?
This specific SKU is supplied with a 220V (50Hz) motor intended for export use.
What control options are available for the Studio Electrol series?
You can integrate the screen using accessories like the Da-Lite 28359 RF Single Channel Wall Switch or the Da-Lite 29243 RF RS-232 Control.
Is this product TAA compliant?
Yes, this model is TAA compliant and is manufactured in the US.
