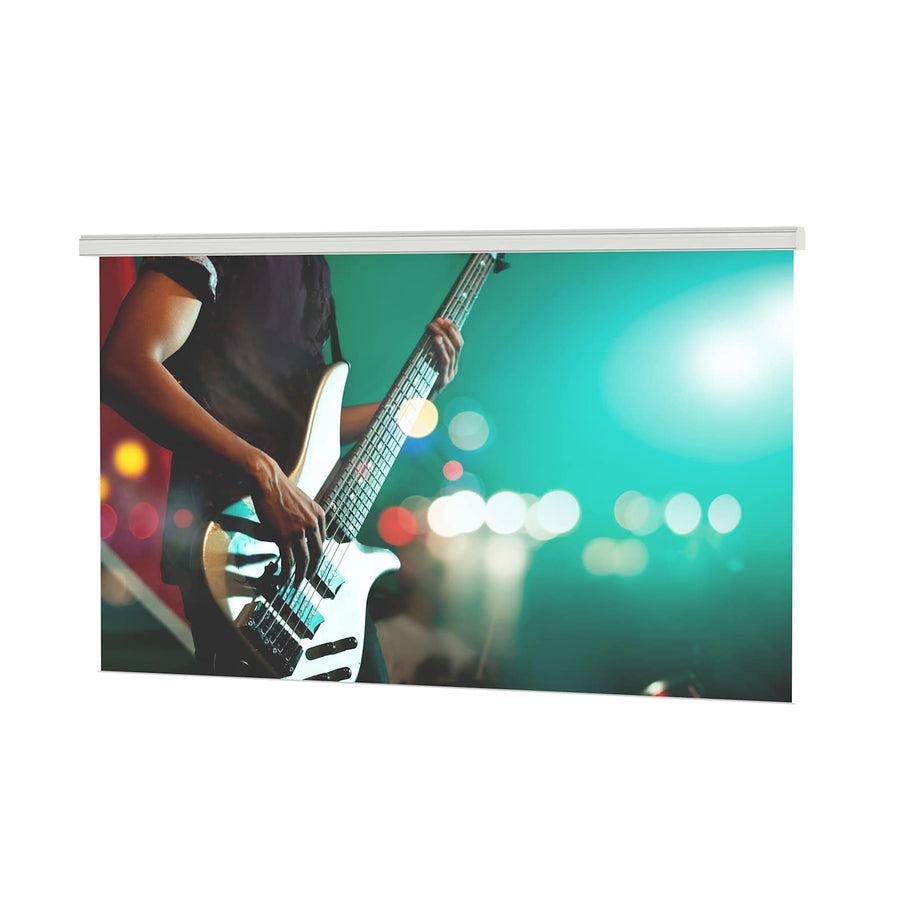

Da-Lite Studio Electrol, 163" x 384" with Perforated Matte White - 20812
Large venue electric projection screen, 163" x 384" with acoustically transparent Perforated Matte White surface
The Da-Lite 20812 is a Studio Electrol series projection screen designed for large-scale applications such as auditoriums, stages, and arenas. This specific model features a 163" x 384" (416" diagonal) Cinemascope 2.35:1 aspect ratio, making it suitable for wide-format cinematic content. The surface is a Perforated Matte White that provides high resolution and acoustic transparency for professional audio integration. This electric screen utilizes a standard 120V (60Hz) motor and features a borderless screen surface centered within an aluminum housing with a gray finish. For installers, this TAA-compliant unit is built for large venues and comes standard with adjustable mounting brackets for ceiling installations. If the project requires a wall mount, the ceiling brackets can be substituted for wall mounting brackets upon request at the time of order. This unit is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 416 in (1,056.6 cm) |
| Screen Height | 163 in (414 cm) |
| Shipping Weight | 1416 lbs (642.3 kg) |
| Size | 163" x 384" or 416" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Cinemascope (2.35:1) |
| Screen Surface Features | Acoustically TransparentHigh Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Perforated Matte White |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will this screen work for front projection setups?
Yes, this 20812 model is specifically designed for front projection applications in large venues like auditoriums or arenas.
Is this screen acoustically transparent?
Yes, the Perforated Matte White surface provides acoustic transparency, allowing for audio integration behind the screen.
Can I mount this screen on a wall instead of a ceiling?
While it ships with adjustable mounting brackets for ceiling installation, wall mounting brackets can be substituted if requested at the time of order.
What control options are available for the motor?
The 120V motor can be paired with accessories like the Da-Lite 28359 Radio Frequency Single Channel Wall Switch or the 29243 Radio Frequency RS-232 Control.
Is this product TAA compliant for government contracts?
Yes, this model is TAA compliant and is manufactured in the United States.
