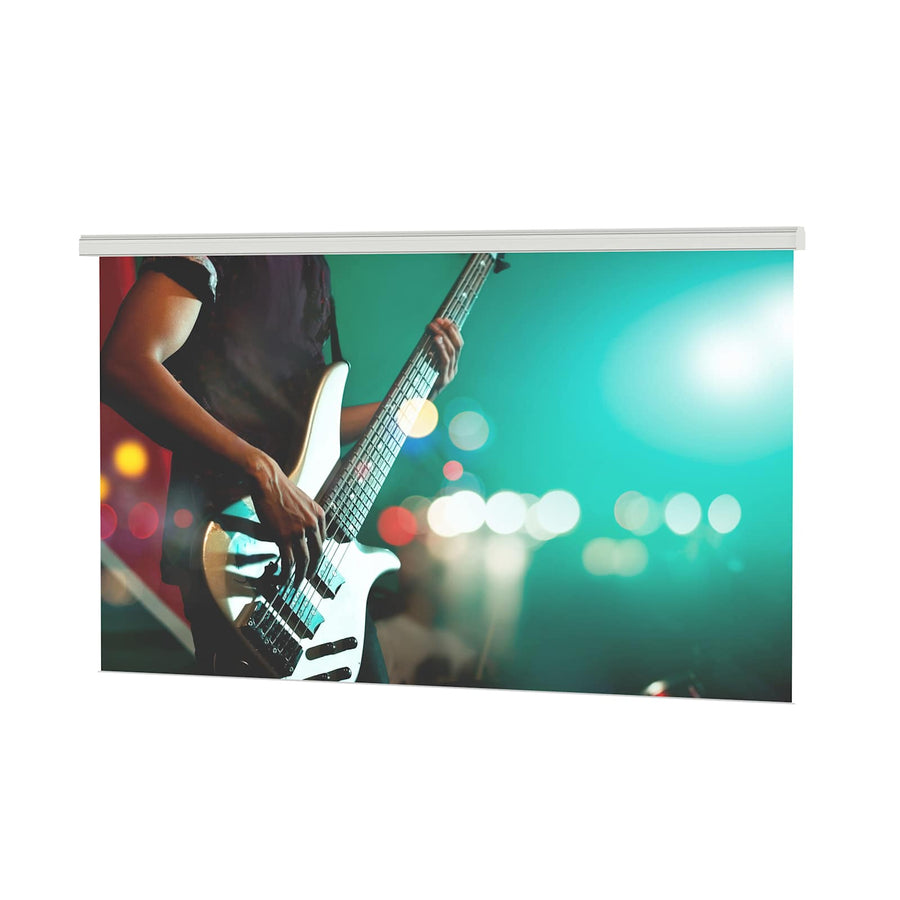

Da-Lite Studio Electrol, 153" x 360" with Perforated Matte White - 20811
Large venue projection screen with Perforated Matte White surface, 153" x 360" dimensions, and 2.35:1 Cinemascope format
The Da-Lite Studio Electrol 20811 is a large venue projection screen designed for high-impact applications in auditoriums, arenas, and stages. This electric screen features a 153" x 360" (391" diagonal) area with a Cinemascope (2.35:1) format, ideal for wide-format cinematic content. The Perforated Matte White surface is both acoustically transparent and high resolution, allowing for integrated audio solutions in front-projection setups. This model is built with a borderless screen surface centered within an aluminum housing that features a gray finish. The unit includes a standard 120V (60Hz) motor and comes with adjustable mounting brackets for ceiling installation as a standard feature. For wall installation, adjustable mounting brackets can be substituted and must be requested at the time of order. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 391 in (993.1 cm) |
| Screen Height | 153 in (388.6 cm) |
| Shipping Weight | 1312 lbs (595.1 kg) |
| Size | 153" x 360" or 391" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Cinemascope (2.35:1) |
| Screen Surface Features | Acoustically TransparentHigh Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Perforated Matte White |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will this screen work for front projection in an auditorium?
Yes, the 20811 is a front projection screen with a high-resolution Perforated Matte White surface that is acoustically transparent.
Can I mount this screen on a wall instead of the ceiling?
Standard units include adjustable mounting brackets for ceiling installation. Wall mounting brackets can be substituted, but you must request them at the time of your order.
What is the aspect ratio of the 20811 screen?
This specific model is configured in a Cinemascope (2.35:1) format with dimensions of 153" x 360".
Does this screen include a remote control?
Models sold in the US will be supplied with a Radio Frequency remote control.
What accessories are available for controlling the Studio Electrol motor?
You can add a Radio Frequency Single Channel Wall Switch (SKU 28359), a Dry Contact Interface (SKU 71912), or an RS-232 Control (SKU 29243).
