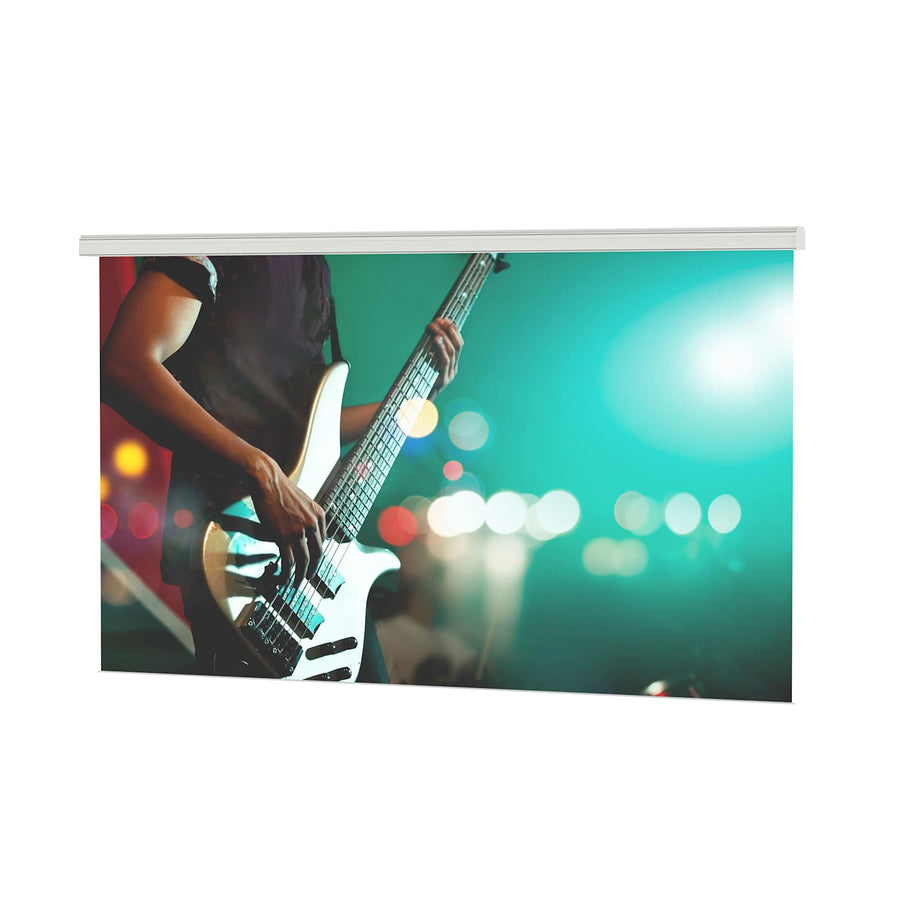

Da-Lite Studio Electrol, 153" x 360" with Matte White - 38843
Large venue motorized projection screen, 153" x 360" with Matte White surface and 2.35:1 Cinemascope format
The Da-Lite 38843 Studio Electrol is a large-format motorized screen designed for professional use in auditoriums, stages, and arenas. This unit features a borderless screen surface that is centered within the aluminum housing, which is finished in gray. The 38843 is configured with a Matte White surface (White Backing) and is built for front projection in a Cinemascope 2.35:1 aspect ratio. Measuring 153" x 360" with a 391" diagonal, this electric screen is TAA compliant and includes a standard 120V (60Hz) motor. For installations, adjustable mounting brackets for ceiling mounting are included as standard. If the application requires wall installation, adjustable wall mounting brackets can be substituted and should be requested at the time of order. This series is capable of sizes up to 32' wide and is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 391 in (993.1 cm) |
| Screen Height | 153 in (388.6 cm) |
| Shipping Weight | 1312 lbs (595.1 kg) |
| Size | 153" x 360" or 391" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Cinemascope (2.35:1) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (White Backing) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will the 38843 fit a Cinemascope aspect ratio?
Yes, this specific 38843 model is configured with a 2.35:1 Cinemascope screen format.
How is the Studio Electrol 38843 mounted?
It includes adjustable mounting brackets for ceiling installation as standard. Wall mounting brackets are available upon request at the time of order.
What motor and control system does this screen use?
The screen utilizes a standard 120V (60Hz) motor and includes a radio frequency remote control for models sold in the US.
What accessories are available for controlling the Studio Electrol?
Compatible control options include the Da-Lite 28359 Radio Frequency Single Channel Wall Switch, 71912 Dry Contact Interface, or 29243 RS-232 Control.
Is the Studio Electrol 38843 TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
