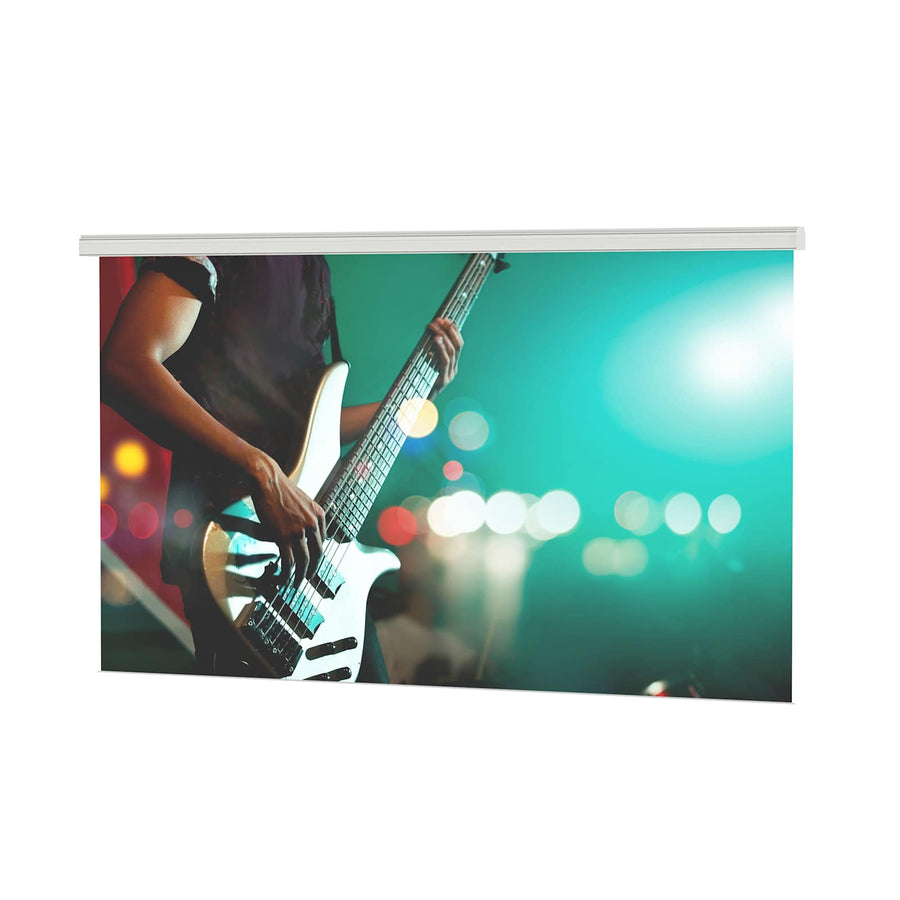

Da-Lite Studio Electrol, 143" x 336" with Matte White - 38842
Large venue electric screen for auditoriums and arenas, 143" x 336" with borderless Matte White surface
The Da-Lite Studio Electrol 38842 is a professional-grade electric projection screen designed for large venue applications such as auditoriums, stages, and arenas. This specific model features a 143" x 336" (365 in (927.1 cm) diagonal) footprint with a Cinemascope (2.35:1) format, making it suitable for wide-format cinematic projection. The borderless screen surface is centered within an aluminum case finished in gray, providing a clean aesthetic for high-end installations. This unit is configured for front projection and utilizes a standard 120V (60Hz) motor for automated operation. The Matte White surface with white backing ensures high-quality image reproduction for standard resolution applications. This TAA-compliant product is manufactured in the US and includes adjustable mounting brackets for standard ceiling installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 365 in (927.1 cm) |
| Screen Height | 143 in (363.2 cm) |
| Shipping Weight | 1254 lbs (568.8 kg) |
| Size | 143" x 336" or 365" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Cinemascope (2.35:1) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (White Backing) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will this screen work for my wide-format projection needs?
Yes, this 38842 model features a Cinemascope (2.35:1) format, which is specifically intended for wide-aspect ratio applications in large venues.
How is the 38842 screen mounted in a professional installation?
This unit comes standard with adjustable mounting brackets for ceiling installation. For wall installation, adjustable mounting brackets can be substituted and must be requested at the time of order.
What control options are available for the Studio Electrol motor?
Models sold in the US include a radio frequency remote control. Additional control options include the Da-Lite RF Single Channel Wall Switch (SKU 28359) or RF Dry Contact Interface (SKU 71912).
Does this screen support different surface finishes?
While this specific SKU features a Matte White surface, the Studio Electrol series also offers Perforated Matte White surface options.
What documentation is available for submittals and installation?
Installers can access the Studio Electrol Specification Sheet and Product Information PDF for submittals, as well as the installation and connection instructions for setup.
