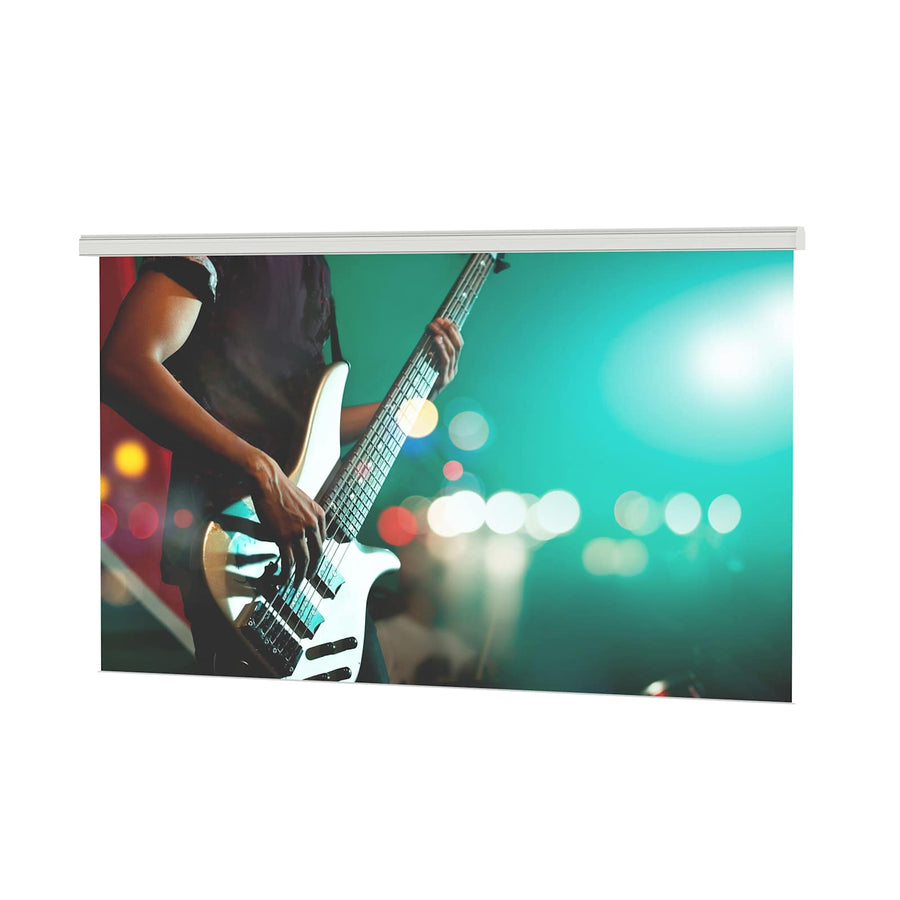

Da-Lite Studio Electrol, 133" x 312" with Matte White - 38841
Large venue Cinemascope projection screen, 133" x 312" size, featuring a Matte White surface for front projection
The Da-Lite 38841 is a Studio Electrol® series projection screen designed for large venue applications such as auditoriums, stages, and arenas. This electric screen features a 133" x 312" (340" diagonal) Cinemascope (2.35:1) format, making it suitable for wide-aspect ratio content. The Matte White surface with white backing provides standard resolution performance for front projection applications. This unit is housed in an aluminum case with a gray finish, which is centered to provide a borderless screen surface. For installation, this model includes adjustable mounting brackets for ceiling applications as a standard feature. It is TAA compliant and manufactured in the USA. The motor is a standard 120V (60Hz) model, and units sold in the US include a radio frequency remote control for operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 340 in (863.6 cm) |
| Screen Height | 133 in (337.8 cm) |
| Shipping Weight | 1186 lbs (538 kg) |
| Size | 133" x 312" or 340" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Cinemascope (2.35:1) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (White Backing) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will the 38841 fit my Cinemascope projection content?
Yes, this model is specifically configured in a 133" x 312" format with a 2.35:1 Cinemascope aspect ratio.
Can this screen be mounted on a wall instead of the ceiling?
While it comes standard with adjustable ceiling mounting brackets, wall installation brackets can be substituted if requested at the time of order.
What control options are available for the Studio Electrol motor?
This US model includes a radio frequency remote control. Additional options include the Da-Lite 28359 single channel wall switch or the 71912 dry contact interface.
Is the Da-Lite 38841 TAA compliant?
Yes, this product is TAA compliant and is manufactured in the USA.
What is the required mounting style for this large format screen?
The screen is supplied with adjustable mounting brackets designed for ceiling installation, but it can also be configured for wall mounting upon request.
