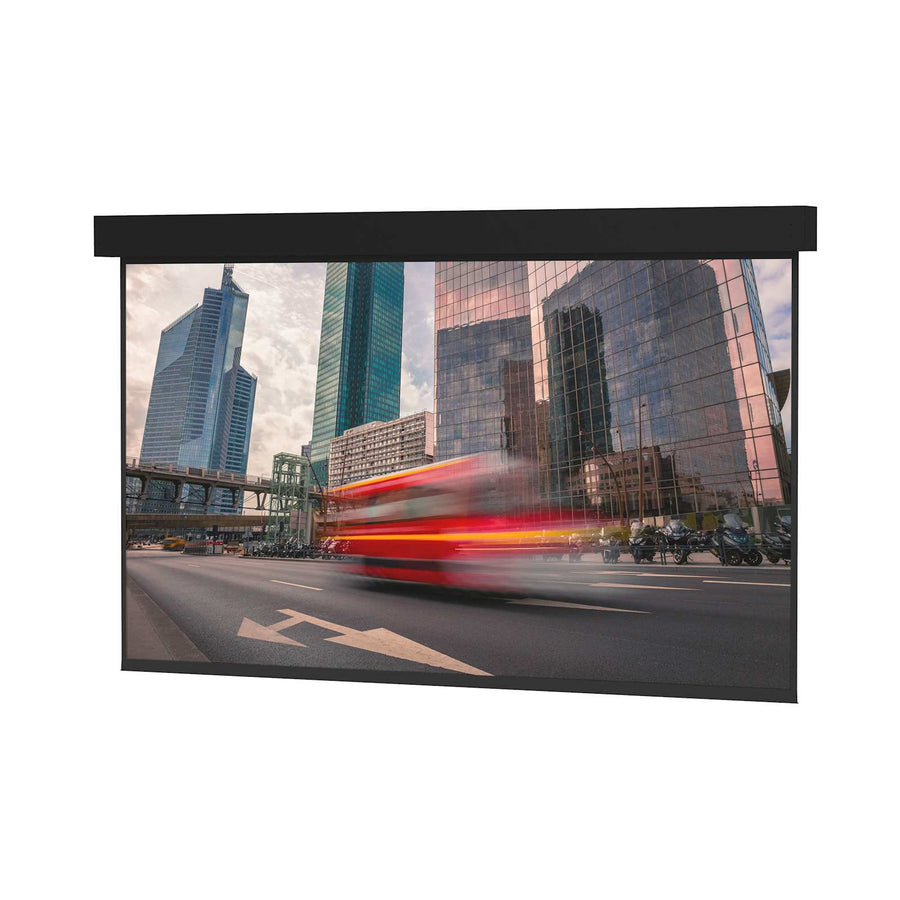

Da-Lite Professional Electrol, 264" x 264" with Matte White - 81680E
Large venue square projection screen, 264" x 264" dimensions, with non-tensioned Matte White surface
The Da-Lite 81680E is a Professional Electrol series electric projection screen designed for large venue applications. This square format screen measures 264" x 264" (670.6 x 670.6 cm) and features a 373 in (947.4 cm) diagonal. It is equipped with a 220V (50Hz) motor intended for export use. The screen utilizes a Matte White non-tensioned surface and is constructed with a black painted case and standard black backing to help retain projected brightness. For installation flexibility, the wooden housing includes adjustable brackets, allowing this unit to be ceiling recessed, wall mounted, or suspended from a ceiling. This specific model is not a tensioned screen; installers looking for a Tensioned Professional Electrol with a Tensioning Cable System should select that alternative. This TAA compliant model is built for high-impact environments requiring reliable front projection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 373 in (947.4 cm) |
| Screen Height | 264 in (670.6 cm) |
| Shipping Dimensions | 281" x 15.75" x 26.13" (713.7 x 40 x 66.4 cm) |
| Shipping Weight | 706.6 lbs (320.5 kg) |
| Size | 264" x 264" |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068513327 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 81680E fit my large venue installation?
This screen is specifically designed for large venue applications, featuring a 264" x 264" square format and a 373 in (947.4 cm) diagonal.
What are the mounting options for this Professional Electrol screen?
The wooden housing includes adjustable brackets that allow for ceiling recessed, wall mounted, or suspended ceiling installations.
Does this screen include a tensioning system?
No, the 81680E is a non-tensioned model. If your application requires a Tensioning Cable System, you should purchase the Tensioned Professional Electrol instead.
What voltage is required for the 81680E motor?
This model is configured with a 220V (50Hz) motor, specifically intended for export use.
What documentation is available for submittals?
You can access the Professional Electrol Specification Sheet, Product Information Sheet, and CAD/BIM models for your project submittals.
