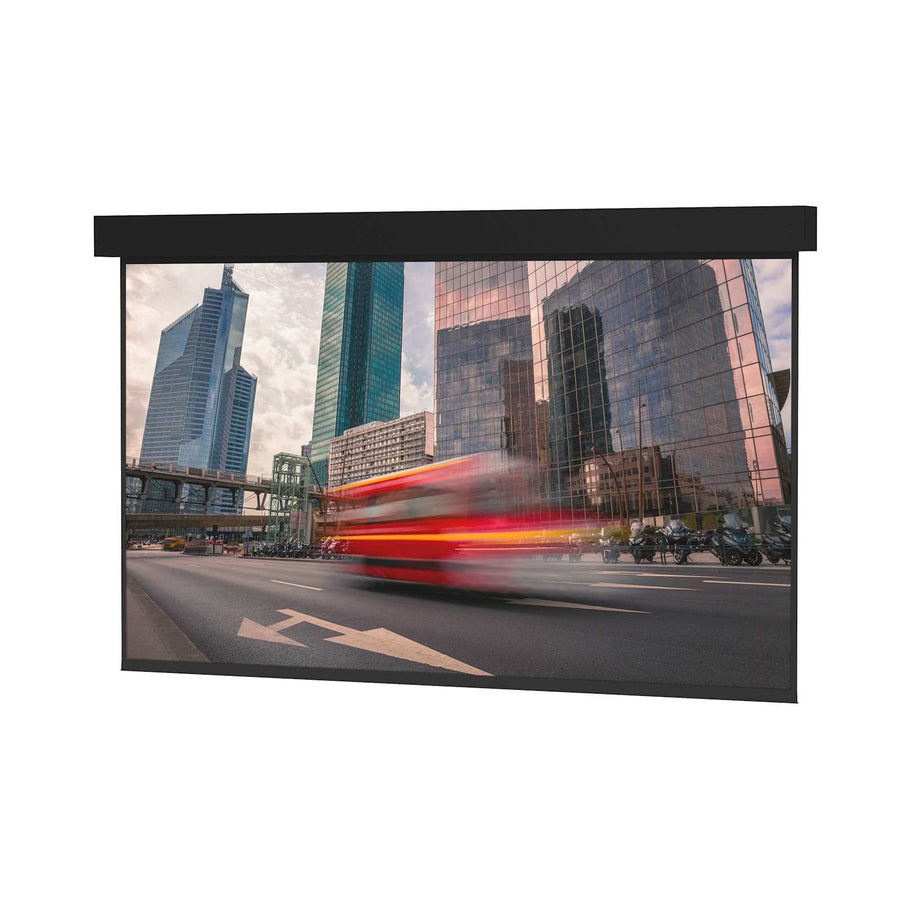

Da-Lite Professional Electrol, 264" x 264" with Matte White - 81680
Large venue electric projection screen with Matte White non-tensioned surface, 264" x 264" dimensions, and TAA compliance
The Da-Lite 81680 is a large venue electric projection screen designed for expansive installation environments. This 264" x 264" square format screen features a Matte White non-tensioned surface and is optimized for front projection applications. The unit is housed in a black painted wooden case equipped with adjustable brackets, allowing for versatile mounting as either a ceiling recessed, wall-mounted, or suspended installation. This specific model utilizes a standard 120V (60Hz) motor to drive the screen mechanism. Please note that this is a non-tensioned model; for environments requiring a Tensioning Cable System, installers should look for the Tensioned Professional Electrol series. This product is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 373 in (947.4 cm) |
| Screen Height | 264 in (670.6 cm) |
| Shipping Weight | 932.31 lbs (422.9 kg) |
| Size | 264" x 264" |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
How can I mount the Da-Lite 81680 in my facility?
The 81680 can be installed in three ways: ceiling recessed, wall mounted, or suspended from the ceiling using the provided adjustable brackets.
Is this screen suitable for high-end tensioned requirements?
The 81680 is a non-tensioned model using a Matte White surface. If your installation requires a Tensioning Cable System, you should select the Tensioned Professional Electrol series instead.
What voltage is required to operate this screen motor?
This model is equipped with a standard 120V (60Hz) motor for electric operation.
Does this product meet TAA compliance requirements?
Yes, the Da-Lite 81680 is TAA compliant and is produced in the US.
Can I add control accessories to this installation?
Yes, you can integrate accessories such as the Da-Lite Single Motor Low Voltage Control System 120 Volt (SKU 40973) or a Key Operated 110 Volt Switch (SKU 74490).
