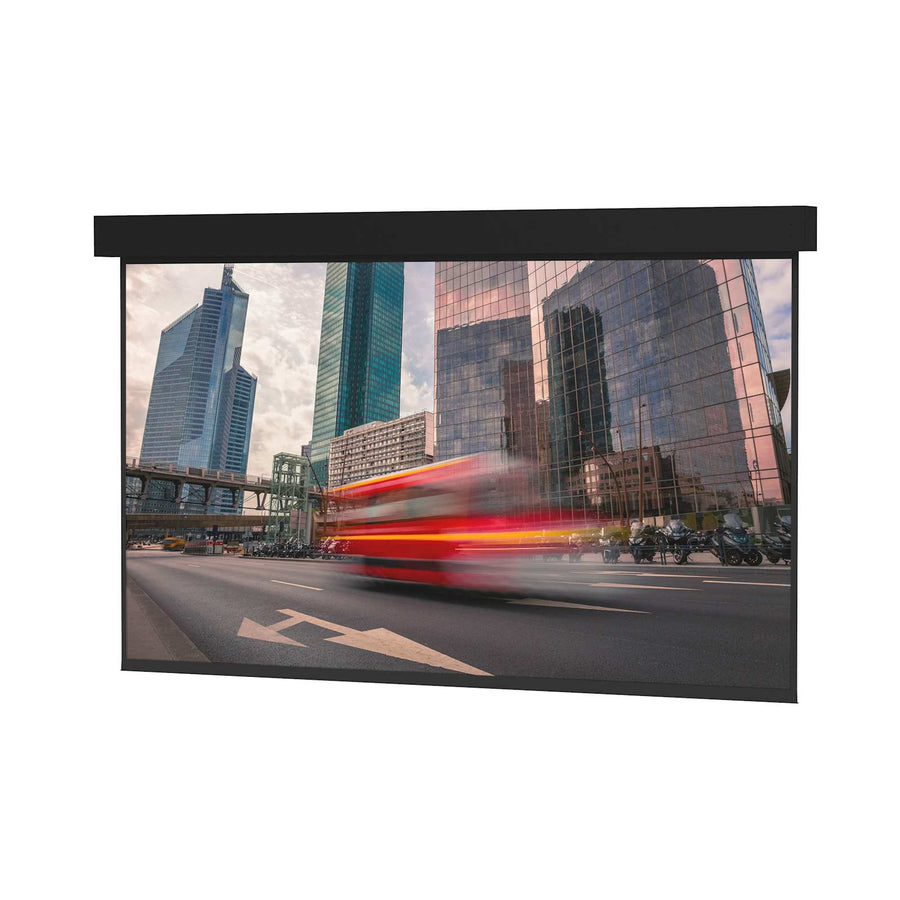

Da-Lite Professional Electrol, 240" x 240" with Matte White - 81630E
Square 240" x 240" electric projection screen with Matte White surface and 220V export motor
The Da-Lite 81630E is a large-format Professional Electrol® projection screen designed for high-impact visual needs in large venues. This 240" x 240" square format screen features a Matte White, non-tensioned surface, specifically engineered to provide seamless surfaces for installations up to and including 16’ high. Designed for front projection, the screen utilizes a black painted case and standard black backing to maximize projected brightness and maintain high visual contrast. The unit is equipped with a 220V (50Hz) motor intended for export markets. Installation flexibility is a core feature of the Professional Electrol series, as this model can be ceiling recessed, wall mounted, or suspended from the ceiling via the included wooden housing and adjustable brackets. This specific SKU is a non-tensioned version; integrators requiring a Tensioning Cable System should look for the Tensioned Professional Electrol variant. The system is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 339 in (861.1 cm) |
| Screen Height | 240 in (609.6 cm) |
| Shipping Dimensions | 295.75" x 15.75" x 25.3" (751.2 x 40 x 64.3 cm) |
| Shipping Weight | 766.53 lbs (347.7 kg) |
| Size | 240" x 240" |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068512283 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the installation method for the 81630E?
This Professional Electrol screen can be ceiling recessed, wall mounted, or suspended from the ceiling using the included adjustable brackets and wooden housing.
Does this screen include a tensioning system?
No, this SKU (81630E) features a non-tensioned Matte White surface. For models requiring a Tensioning Cable System, you must select the Tensioned Professional Electrol version.
Is the 81630E suitable for international export?
Yes, this model is equipped with a 220V (50Hz) motor specifically designed for export applications and is TAA compliant.
How is the screen controlled?
The screen uses a three-position, Decora-style switch. For low voltage control, the Da-Lite Single Motor Low Voltage Control System 220 Volt (SKU 40973E) is a compatible option.
What type of projection is this screen designed for?
The 81630E is a front projection screen designed to maintain brightness through the use of standard black backing.
