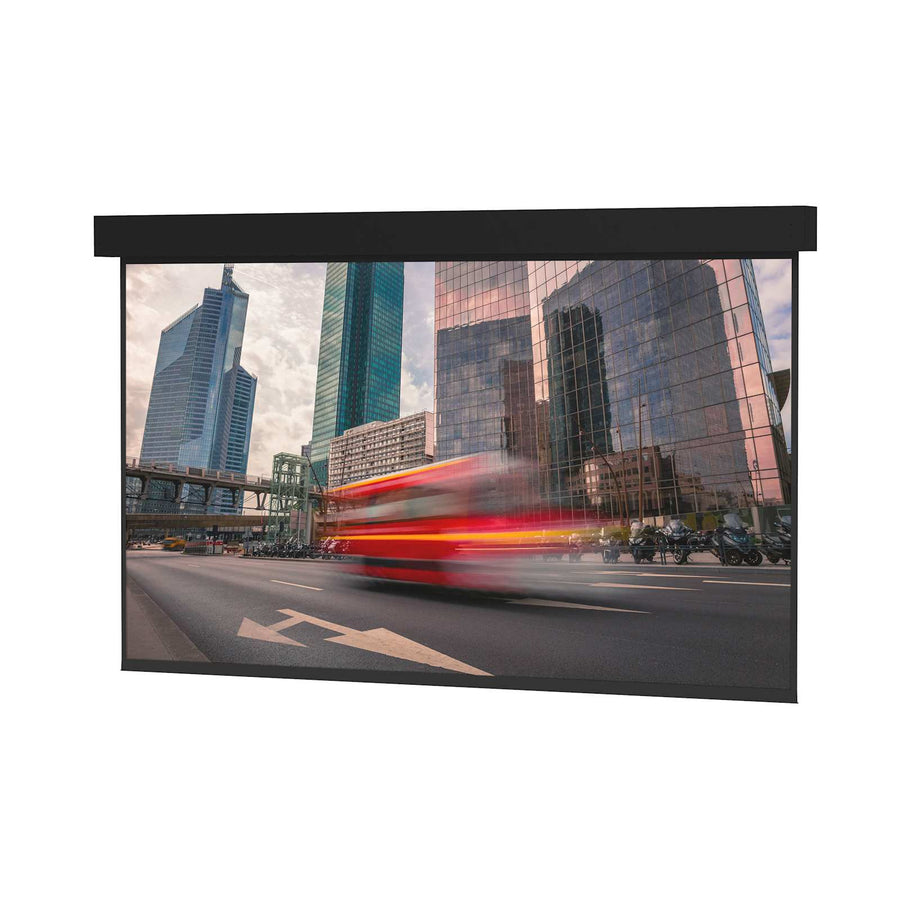

Da-Lite Professional Electrol, 240" x 240" with Matte White - 81630
Large venue square projection screen, 240" x 240" with Matte White non-tensioned surface for ceiling or wall mounting
The Da-Lite 81630 is a Professional Electrol series electric projection screen designed for large venue environments. This square format screen measures 240" x 240" (609.6 x 609.6 mm) with a 339 in (861.1 cm) diagonal. It features a Matte White non-tensioned surface and a standard black backing to retain projected brightness. For installation flexibility, this unit can be ceiling recessed, wall mounted, or suspended from the ceiling using the included wooden housing and adjustable brackets. This specific model utilizes a standard 120V (60Hz) motor for operation and is TAA compliant. Note that this SKU is a non-tensioned model; installers requiring a Tensioning Cable System should instead select the Tensioned Professional Electrol version.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 339 in (861.1 cm) |
| Screen Height | 240 in (609.6 cm) |
| Shipping Weight | 864.77 lbs (392.3 kg) |
| Size | 240" x 240" |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Where can the Da-Lite 81630 be installed?
This screen is designed for multiple mounting configurations: it can be ceiling recessed, mounted on a wall, or suspended from the ceiling using its adjustable brackets.
Does this screen include a tensioning system?
No, the 81630 is a non-tensioned model. If your installation requires a Tensioning Cable System, you must purchase the Tensioned Professional Electrol version instead.
What electrical requirements are needed for the motor?
The motor is a standard 120V (60Hz) unit. You can further customize control using the Da-Lite Single Motor Low Voltage Control System (SKU 40973) or a Key Operated 110 Volt Switch (SKU 74490).
Is this screen TAA compliant?
Yes, the Da-Lite 81630 is TAA compliant and is manufactured in the US.
Can I customize the wall switch for the 81630?
Yes, you can utilize the Da-Lite Locking Switch Cover Plate (SKU 98837) or choose alternative wall switches like the Stainless Steel (SKU 92055) or White (SKU 80575) models.
