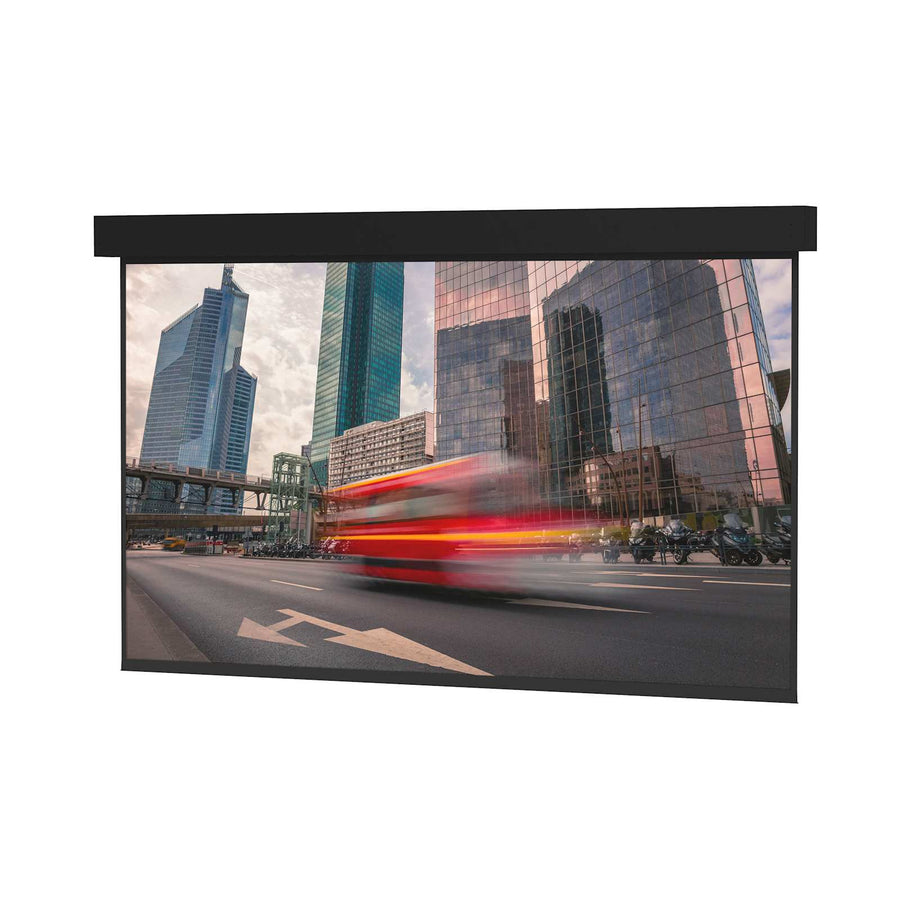

Da-Lite Professional Electrol, 216" x 216" with Matte White - 81628E
Large venue square projection screen, 216" x 216" dimensions, featuring a non-tensioned Matte White surface and a 220V (50Hz) motor
The Da-Lite 81628E is a Professional Electrol® projection screen designed for large venue applications where a massive square format is required. This 216" x 216" screen features a Matte White surface that is non-tensioned, providing a seamless appearance for surfaces up to 16’ high. It is designed for front projection and is suitable for ceiling recessed, wall mounted, or suspended installations. The housing is finished in a black painted case and includes a wooden housing with adjustable brackets to accommodate various mounting requirements. This specific model is equipped with a 220V (50Hz) motor intended for export markets. It operates using a three-position, Decora-style switch. Please note that this is a non-tensioned model; if your installation requires a Tensioning Cable System, you should look for the Tensioned Professional Electrol series. This unit is TAA compliant and is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 305 in (774.7 cm) |
| Screen Height | 216 in (548.6 cm) |
| Shipping Dimensions | 233" x 15.75" x 26.13" (591.8 x 40 x 66.4 cm) |
| Shipping Weight | 599.38 lbs (271.9 kg) |
| Size | 216" x 216" |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068512207 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Does the Da-Lite 81628E include a tensioning system?
No, this is a non-tensioned Matte White surface. For installations requiring a Tensioning Cable System, you must select the Tensioned Professional Electrol series.
What voltage motor is included with this screen?
The 81628E is equipped with a 220V (50Hz) motor specifically designed for export markets.
Can this screen be installed in a recessed ceiling?
Yes, this Professional Electrol model is designed for ceiling recessed, wall mounted, or suspended installation via adjustable brackets.
