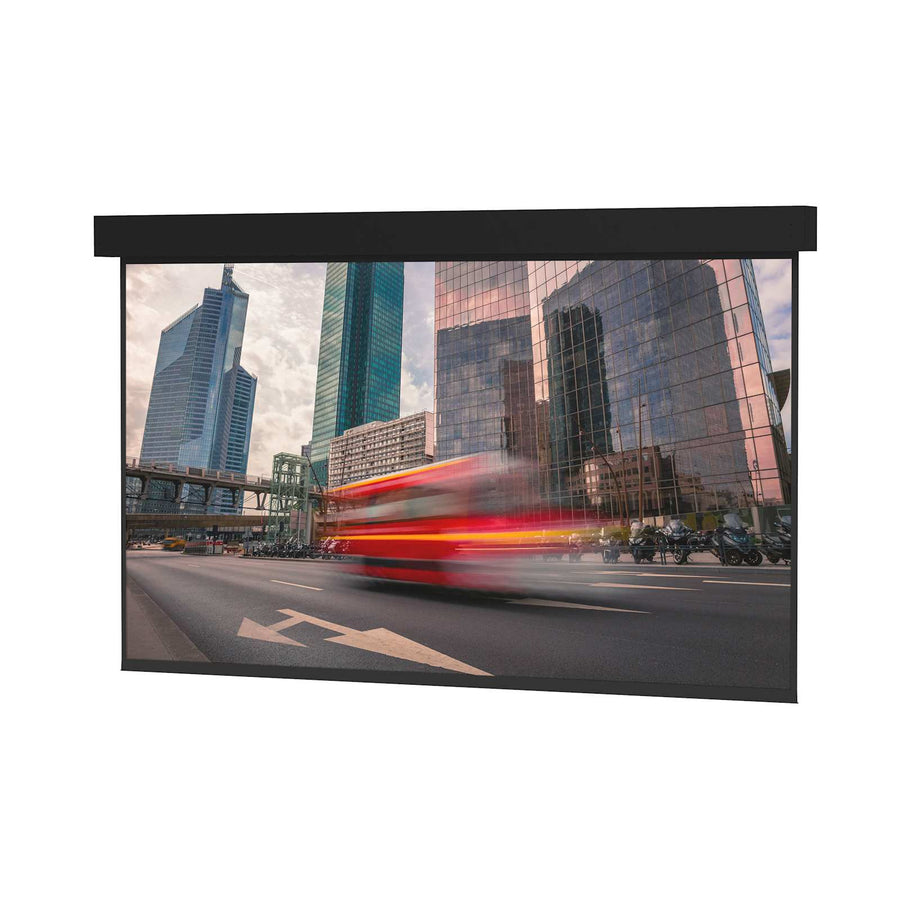

Da-Lite Professional Electrol, 213" x 284" with Matte White - 38699E
Large venue 355" diagonal electric screen with 213" x 284" Matte White non-tensioned surface and 220V motor
The Da-Lite 38699E is a Professional Electrol series screen designed specifically for large venue installations requiring a 355" diagonal projection surface. This electric screen features a 213" x 284" Matte White non-tensioned surface optimized for standard resolution front projection. To ensure high image quality in large spaces, the unit includes a standard black backing to retain projected brightness. The 38699E is built with a wooden housing and equipped with adjustable brackets, providing flexibility for ceiling recessed, wall mounted, or suspended ceiling installations. This specific model is configured with a 220V (50Hz) motor intended for export markets. Note that this is a non-tensioned model; installers requiring a Tensioning Cable System should instead specify a Tensioned Professional Electrol. The housing is finished in a black paint and includes a three-position, Decora-style switch for operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 355 in (901.7 cm) |
| Screen Height | 213 in (541 cm) |
| Shipping Dimensions | 305" x 15.75" x 26.13" (774.7 x 40 x 66.4 cm) |
| Shipping Weight | 783.83 lbs (355.5 kg) |
| Size | 213" x 284" or 355" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068642430 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen fit my large venue projection setup?
The 38699E provides a 213" x 284" projection area with a 355" diagonal, making it suitable for large-scale front projection in commercial venues.
Does this screen include a tensioning system?
No, this SKU is a non-tensioned model with a Matte White surface. For versions featuring a Tensioning Cable System, you must select the Tensioned Professional Electrol.
What are the mounting requirements for the 38699E?
This screen can be installed using the included adjustable brackets for wall mounting, ceiling recessed applications, or suspension from the ceiling.
Is this model TAA compliant?
Yes, the Da-Lite 38699E is TAA compliant and features a 220V (50Hz) motor designed for export use.
What accessories are compatible with this electric screen?
You can integrate the Da-Lite Single Motor Low Voltage Control System 220 Volt (40973E) or use a locking switch cover plate (98837) with this unit.
