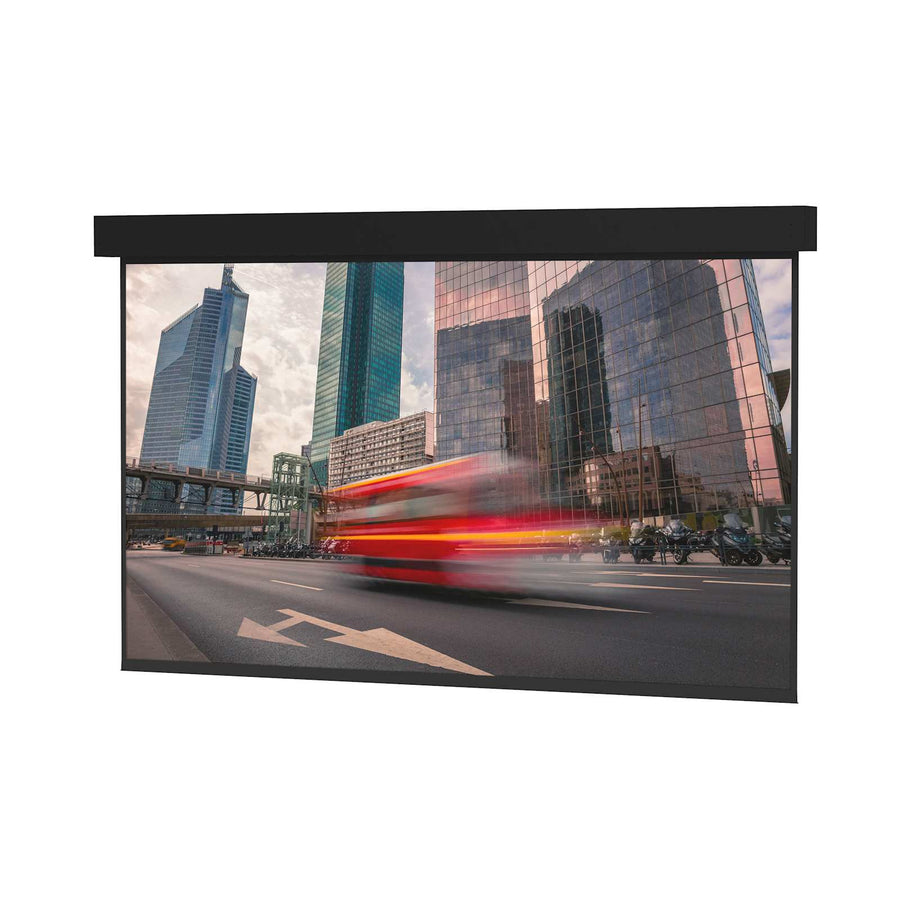

Da-Lite Professional Electrol, 195" x 260" with Matte White - 38698E
Large venue electric projection screen for front projection, 195" x 260" with Matte White non-tensioned surface
The Da-Lite 38698E is a Professional Electrol series projection screen designed for large venue installations. Featuring a 195" x 260" area and a 325" diagonal, this electric screen is optimized for front projection and utilizes a Matte White non-tensioned surface. The screen housing is constructed from wood and includes adjustable brackets, allowing for versatile installation as either a ceiling recessed unit, a wall mount, or a suspended system. This specific model features a black painted case and standard black backing to help retain projected brightness during use. This unit is equipped with a 220V (50Hz) motor specifically for export applications. Note that this SKU is a non-tensioned model; if your installation requires a Tensioning Cable System, you must look for the Tensioned Professional Electrol variant. This TAA compliant solution is built for professional environments requiring high-quality video (4:3) projection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 325 in (825.5 cm) |
| Screen Height | 195 in (495.3 cm) |
| Shipping Dimensions | 281" x 15.75" x 26.13" (713.7 x 40 x 66.4 cm) |
| Shipping Weight | 706.6 lbs (320.5 kg) |
| Size | 195" x 260" or 325" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068642416 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 38698E screen fit a 4:3 video projection setup?
Yes, this screen is specifically configured for a 4:3 Video screen format.
Does this model include the Tensioning Cable System?
No, this is the non-tensioned Matte White version. For a Tensioning Cable System, you will need the Tensioned Professional Electrol.
What mounting options are available for the 38698E?
This screen can be installed via ceiling recessed, wall mount, or suspended from the ceiling using its included adjustable brackets.
Is this screen TAA compliant?
Yes, this product is TAA compliant and is designed with a 220V (50Hz) motor for export use.
What accessories are compatible with this screen's controls?
You can add a Da-Lite Single Motor Low Voltage Control System 220 Volt (SKU 40973E) or a Da-Lite Locking Switch Cover Plate (SKU 98837).
