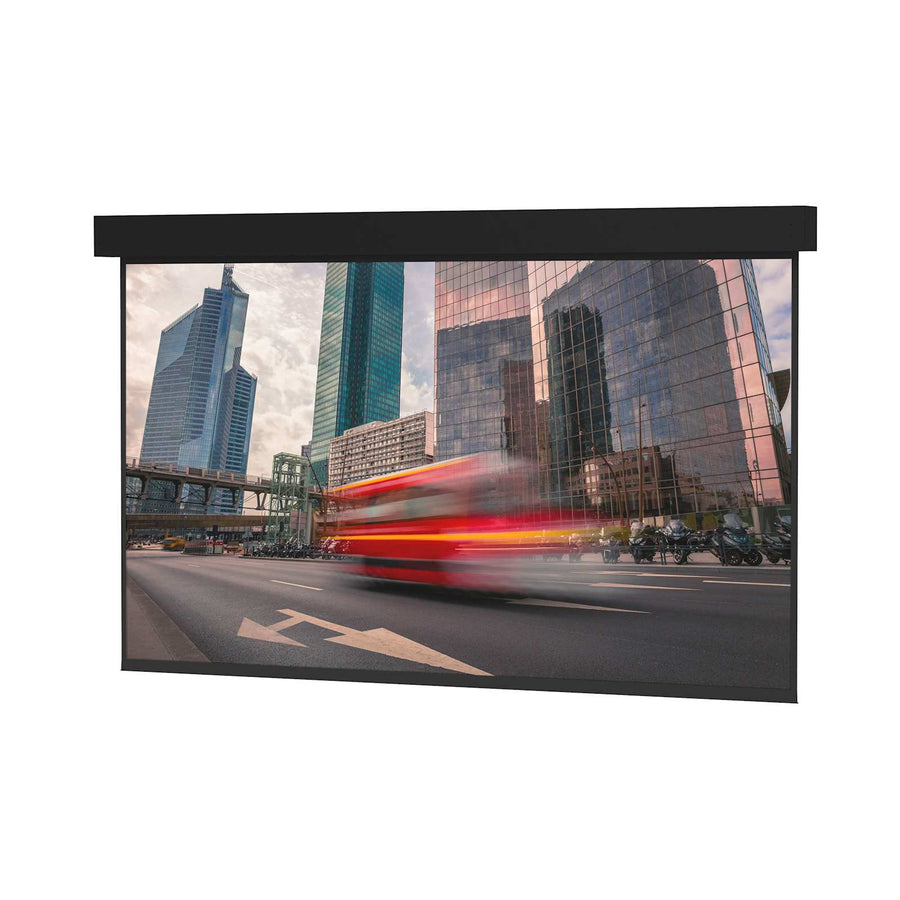

Da-Lite Professional Electrol, 195" x 260" with Matte White - 38698
Large venue projection screen, 195" x 260" with Matte White non-tensioned surface, 325" diagonal
The Da-Lite 38698 is a Professional Electrol® series projection screen designed for large venue environments. This 195" x 260" (325" diagonal) unit features a Matte White non-tensioned surface optimized for front projection. The screen utilizes a black painted case and standard black backing to ensure projected brightness is retained during use. This specific model is a non-tensioned version; installers requiring the Tensioning Cable System should look for the Tensioned Professional Electrol variant. For installation versatility, the 38698 can be ceiling recessed, wall mounted, or suspended from the ceiling using the included wooden housing and adjustable brackets. It operates on a standard 120V (60Hz) motor and is TAA compliant. The screen format is 4:3 for video applications, providing seamless surfaces for heights up to and including 16’.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 325 in (825.5 cm) |
| Screen Height | 195 in (495.3 cm) |
| Shipping Weight | 905.31 lbs (410.6 kg) |
| Size | 195" x 260" or 325" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 38698 screen fit my specific room layout?
The 38698 can be ceiling recessed, wall mounted, or suspended. It uses a wooden housing with adjustable brackets to accommodate various installation types.
Does this model include a tensioning system?
No, this SKU features a non-tensioned Matte White surface. If you require a Tensioning Cable System, you must purchase the Tensioned Professional Electrol version instead.
What power requirements are needed for the 38698 motor?
The screen is equipped with a standard 120V (60Hz) motor for electric operation.
What accessories are compatible with the Professional Electrol series?
You can add the Da-Lite Single Motor Low Voltage Control System (SKU 40973) or various switch options like the Key Operated 110 Volt Switch (SKU 74490).
Is this projection screen suitable for front projection setups?
Yes, the 38698 is designed specifically for front projection applications in large venue environments.
