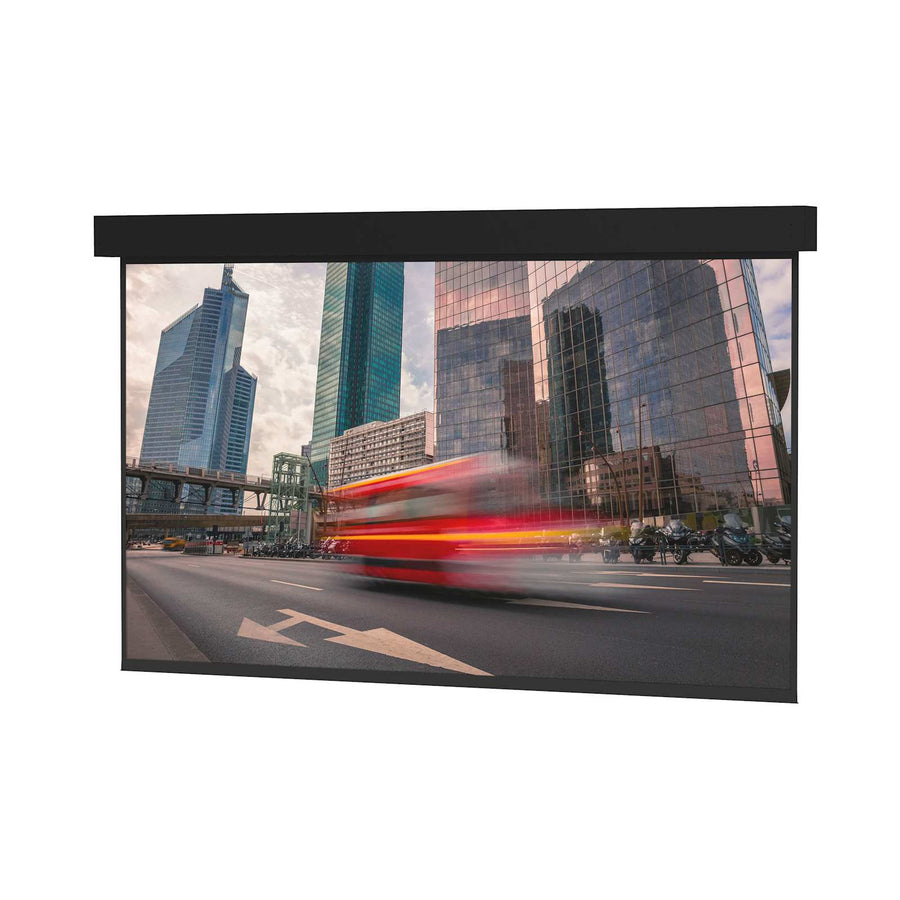

Da-Lite Professional Electrol, 192" x 192" with Matte White - 81625E
Large venue square projection screen with 192" x 192" Matte White non-tensioned surface and 220V motor
The Da-Lite 81625E is a large venue projection solution featuring a 192" x 192" square screen format. This Professional Electrol model is built with a black painted case and standard black backing to ensure maximum projected brightness. It is designed for front projection applications and utilizes a non-tensioned Matte White surface. This specific SKU is configured with a 220V (50Hz) motor intended for export markets. For installation flexibility, the unit can be ceiling recessed, wall mounted, or suspended from the ceiling via its wooden housing and adjustable brackets. Please note that this is a non-tensioned model; if your installation requires the Da-Lite Tensioning Cable System, you must select a Tensioned Professional Electrol instead. This TAA compliant screen is ideal for high-impact large venue environments where a seamless surface up to 16’ high is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 272 in (690.9 cm) |
| Screen Height | 192 in (487.7 cm) |
| Shipping Dimensions | 209" x 15.75" x 26.13" (530.9 x 40 x 66.4 cm) |
| Shipping Weight | 547.04 lbs (248.1 kg) |
| Size | 192" x 192" |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068512115 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 81625E screen work with my current installation setup?
Yes, the 81625E features a wooden housing with adjustable brackets, allowing it to be ceiling recessed, wall mounted, or suspended from the ceiling.
Does this model include the Tensioning Cable System?
No, this is the non-tensioned Matte White version. For installations requiring a Tensioned Professional Electrol with the Tensioning Cable System, you must choose a different SKU.
What voltage motor is used in the 81625E?
This model is equipped with a 220V (50Hz) motor specifically designed for export use.
What accessories are available for the Professional Electrol series?
You can add a Da-Lite Locking Switch Cover Plate (SKU 98837) or a Da-Lite Single Motor Low Voltage Control System 220 Volt (SKU 40973E).
Is this screen TAA compliant?
Yes, the 81625E is TAA compliant and is manufactured in the US.
