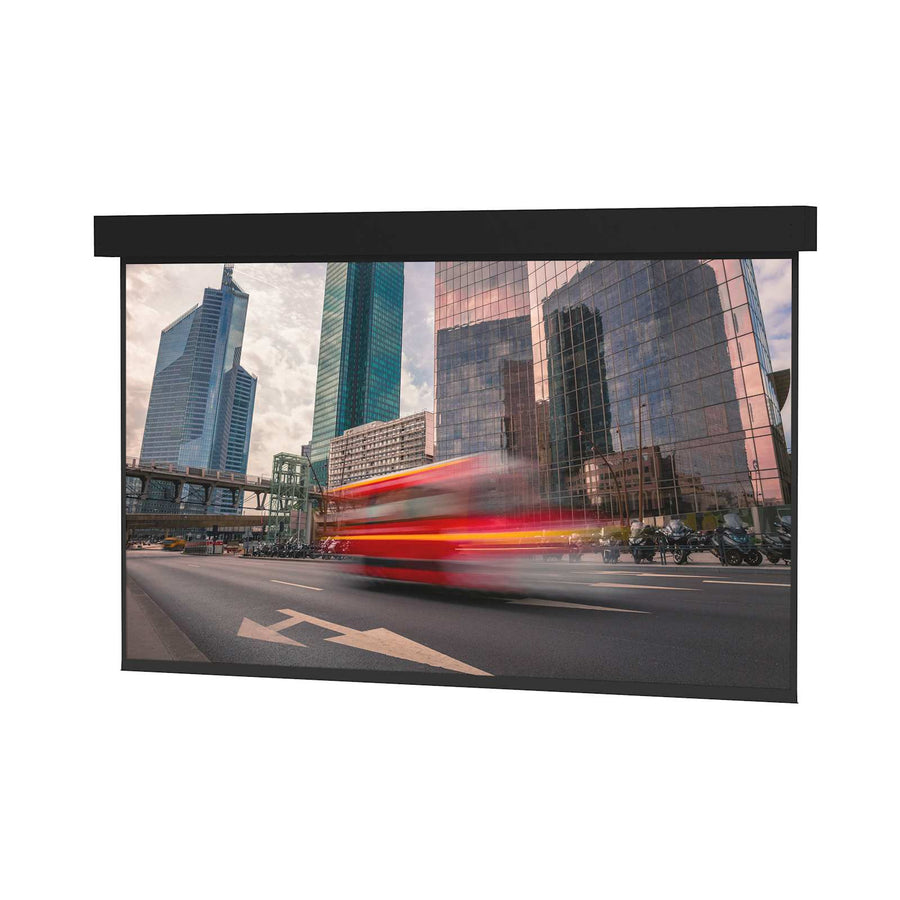

Da-Lite Professional Electrol, 177.5" x 284" with Matte White - 14209E
Large venue electric projection screen, 177.5" x 284" area, Matte White non-tensioned surface, 220V motor
The Da-Lite 14209E is a Professional Electrol series electric screen designed for large venue applications. This specific model features a massive 177.5" x 284" area, providing a 335" diagonal projection surface. It is configured with a Wide (16:10) screen format and utilizes a Matte White non-tensioned surface to provide standard resolution projection. Built for diverse installation needs, this unit can be ceiling recessed, wall mounted, or suspended from the ceiling using the included wooden housing and adjustable brackets. This particular SKU is equipped with a 220V (50Hz) motor intended for export markets. It features a standard black backing to help retain projected brightness and a black painted case. Please note that this is a non-tensioned model; if your application requires a Tensioning Cable System, you must look for the Tensioned Professional Electrol series instead.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 335 in (850.9 cm) |
| Screen Height | 177.5 in (450.9 cm) |
| Shipping Dimensions | 305" x 15.75" x 26.13" (774.7 x 40 x 66.4 cm) |
| Shipping Weight | 783.83 lbs (355.5 kg) |
| Size | 177.5" x 284" or 335" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068760592 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Does this screen include a tensioning system?
No, the 14209E is a non-tensioned model. If your installation requires a Tensioning Cable System, you should select a Tensioned Professional Electrol model.
What voltage is the motor for this model?
This SKU is equipped with a 220V (50Hz) motor specifically designed for export use.
How can this screen be mounted in a large venue?
The Professional Electrol housing includes adjustable brackets, allowing for ceiling recessed, wall mounted, or suspended ceiling installations.
What is the required screen format for the 14209E?
This model features a Wide (16:10) screen format with a 177.5" x 284" projection area.
Which documents are available for submittals?
Installers can access the Professional Electrol Specification Sheet, Installation and Connections instructions, and BIM/CAD models via the Resources tab.
