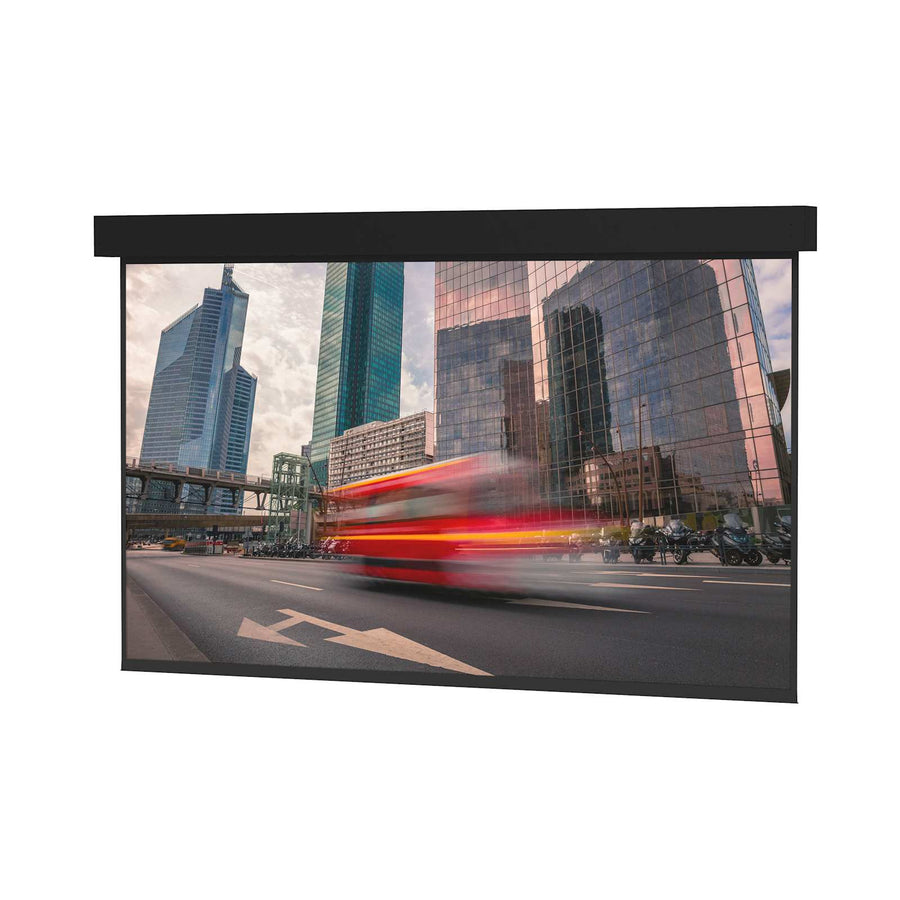

Da-Lite Professional Electrol, 147.5" x 236" with Matte White - 14208E
Large venue 16:10 projection screen with a 147.5" x 236" matte white surface and 220V export motor
The Da-Lite 14208E is a Professional Electrol series projection screen designed for large venue environments. This electric screen features a matte white, non-tensioned surface with a wide 16:10 aspect ratio, measuring 147.5" x 236" (374.7 x 650.5 cm) with a 278" (706.1 cm) diagonal. It is built with a black painted wooden housing and includes adjustable brackets to facilitate various mounting configurations, including ceiling recessed, wall mounted, or suspended from the ceiling. For international installations, this model is equipped with a 220V (50Hz) motor for export. This specific SKU does not include the Tensioning Cable System; installers requiring a tensioned solution should look for the Tensioned Professional Electrol series. The screen surface features standard resolution capability and includes a black backing to help retain projected brightness. This product is TAA Compliant and is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 278 in (706.1 cm) |
| Screen Height | 147.5 in (374.7 cm) |
| Shipping Dimensions | 267" x 18" x 23" (678.2 x 45.7 x 58.4 cm) |
| Shipping Weight | 836 lbs (379.2 kg) |
| Size | 147.5" x 236" or 278" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068760554 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen fit my 16:10 projection setup?
Yes, the 14208E is a Wide (16:10) format screen with a 147.5" height and 236" width, making it suitable for large venue wide-format projections.
Does this model include a tensioning system?
No, this specific SKU is a non-tensioned model. If your installation requires a Tensioning Cable System, you must select the Tensioned Professional Electrol version.
Can I install this in a recessed ceiling application?
Yes, the Professional Electrol series is designed for ceiling recessed, wall mounted, or suspended installation using the included adjustable brackets.
What voltage is required for this motor?
This model is configured for export with a 220V (50Hz) motor.
Is this screen TAA compliant for government contracts?
Yes, the 14208E is TAA Compliant and is manufactured in the US.
