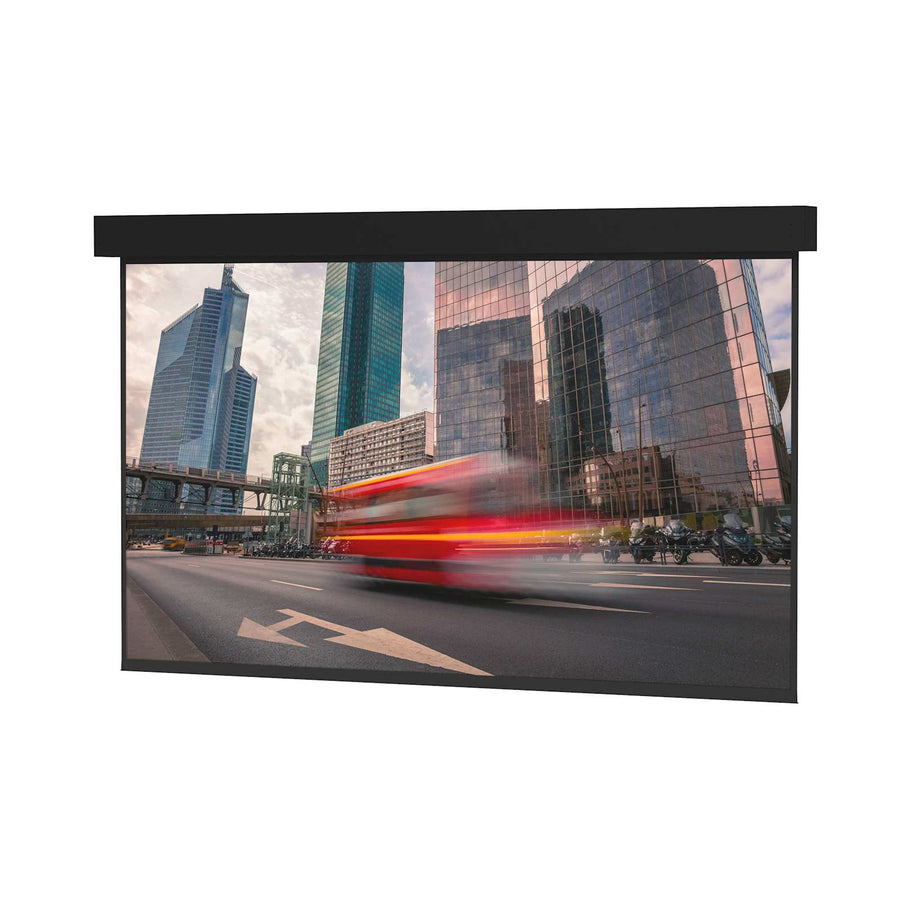

Da-Lite Professional Electrol, 141" x 188" with Matte White - 81634E
Professional Electrol electric screen for large venue front projection, 141" x 188" with Matte White surface
The Da-Lite 81634E is a Professional Electrol series electric screen designed for large venue front projection. This 240" diagonal (141" x 188") screen features a Matte White, non-tensioned surface and is engineered for high-impact visual performance. The housing is constructed from wood and includes adjustable brackets, providing versatility for ceiling recessed, wall mounted, or suspended installations. For high-brightness applications, the black painted case and standard black backing work together to retain projected brightness. This specific SKU is configured with a 220V (50Hz) motor for export markets. It is important to note that this model is a non-tensioned version; if your application requires the Tensioning Cable System, you should instead specify the Tensioned Professional Electrol series. This unit is TAA compliant and includes a three-position, Decora-style switch for controlled operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 240 in (609.6 cm) |
| Screen Height | 141 in (358.1 cm) |
| Shipping Dimensions | 209" x 15.75" x 26.13" (530.9 x 40 x 66.4 cm) |
| Shipping Weight | 547.04 lbs (248.1 kg) |
| Size | 141" x 188" or 240" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068512429 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 81634E fit a 4:3 video projection setup?
Yes, this screen is specifically configured with a 4:3 video format and a 240" diagonal to accommodate standard video aspect ratios.
Is the 81634E a tensioned screen?
No, this SKU features a non-tensioned Matte White surface. For installations requiring the Tensioning Cable System, you must select the Tensioned Professional Electrol version.
What voltage motor is used in the 81634E?
This model is equipped with a 220V (50Hz) motor intended for export applications.
How is the screen operated?
The unit features a three-position, Decora-style switch for manual control of the electric screen movement.
Does this screen include the mounting hardware?
The wooden housing includes adjustable brackets that facilitate ceiling recessed, wall, or suspended mounting for the installer.
