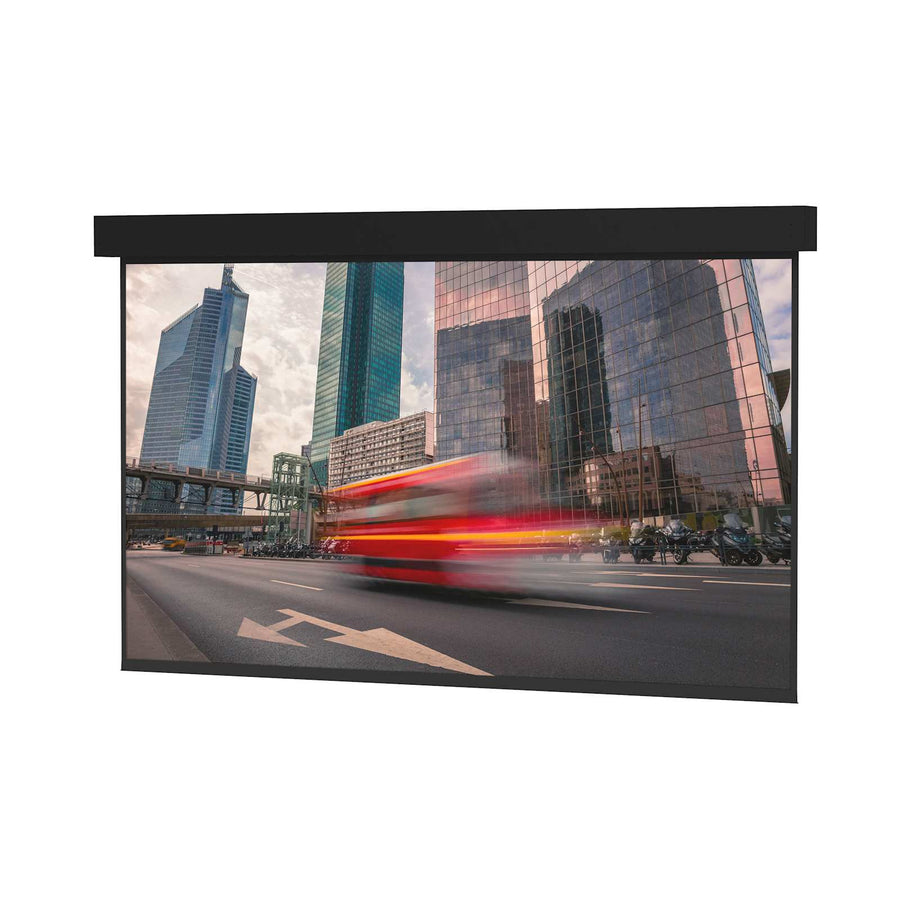

Da-Lite Professional Electrol, 141" x 188" with Matte White - 81634
Large venue electric projection screen with 141" x 188" matte white surface and 240" diagonal for front projection
The Da-Lite 81634 is a Professional Electrol series electric projection screen designed for large venue applications. This non-tensioned screen features a 141" x 188" matte white surface with a 4:3 video aspect ratio, providing a 240" diagonal viewing area for front projection. The unit is housed in a black painted wooden case equipped with adjustable brackets to facilitate various installation methods, including ceiling recessed, wall mounting, or suspension from the ceiling. It operates on a standard 120V (60Hz) motor and includes a three-position, Decora-style switch. For environments requiring higher-end stability, note that this specific model does not include the Tensioning Cable System; you must select the Tensioned Professional Electrol version if a tensioned system is required for your installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 240 in (609.6 cm) |
| Screen Height | 141 in (358.1 cm) |
| Shipping Weight | 635.08 lbs (288.1 kg) |
| Size | 141" x 188" or 240" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 81634 fit my projection setup?
This screen is designed for front projection with a 4:3 video format and a 240" diagonal (609.6 cm) viewing area.
How is this screen installed in a large venue?
The 81634 can be ceiling recessed, wall mounted, or suspended using the adjustable brackets included with the wooden housing.
Does this screen include a tensioning system?
No, this model is a non-tensioned screen. If your application requires a Tensioning Cable System, you must purchase the Tensioned Professional Electrol version.
What is the voltage requirement for the motor?
The motor is a standard 120V (60Hz) unit and operates via a three-position, Decora-style switch.
Which documents are available for submittals?
You can access the Professional Electrol Specification Sheet, CAD models, BIM models, and installation instructions through the product resources.
