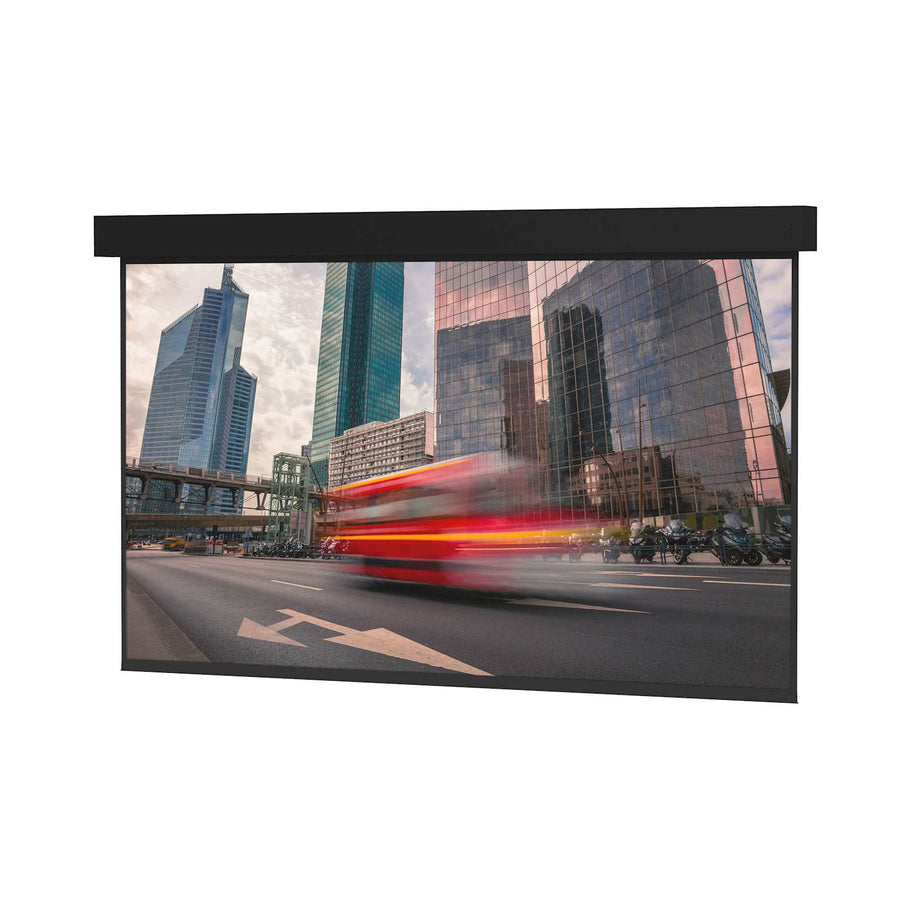

Da-Lite Professional Electrol, 132.5" x 212" with Matte White - 14207E
Large venue electric projection screen with 132.5" x 212" matte white surface for front projection in ceiling or wall installs
The Da-Lite 14207E is a Professional Electrol series electric screen designed specifically for large venue environments. This 250 in (635 cm) diagonal screen features a 132.5 in (336.6 cm) x 212 in (335.6 cm) wide (16:10) format and is fitted with a matte white non-tensioned surface. It is engineered for front projection and utilizes a black painted case with standard black backing to help maintain projected brightness. The unit features a wooden housing with adjustable brackets, providing the versatility required for ceiling recessed, wall mounted, or suspended installations. This specific model is equipped with a 220V (50Hz) motor intended for export markets and is TAA compliant. For installers requiring a tensioned surface, note that this non-tensioned SKU does not include the Tensioning Cable System; for that feature, refer to the Tensioned Professional Electrol series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 250 in (635 cm) |
| Screen Height | 132.5 in (336.6 cm) |
| Shipping Dimensions | 243" x 18" x 23" (617.2 x 45.7 x 58.4 cm) |
| Shipping Weight | 748 lbs (339.3 kg) |
| Size | 132.5" x 212" or 250" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068760233 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 14207E fit my specific display setup?
This screen features a 16:10 wide aspect ratio and is designed for front projection. It is verified for large venue use with a 132.5" x 212" surface area.
What is the difference between this and the Tensioned Professional Electrol?
The 14207E is a non-tensioned model. Unlike the Tensioned Professional Electrol, this SKU does not include the Tensioning Cable System.
What mounting requirements are needed for this screen?
The housing includes adjustable brackets that allow for ceiling recessed, wall, or suspended mounting. It is intended for professional large venue installs.
Is this product TAA compliant?
Yes, the 14207E is TAA compliant and is manufactured in the US.
What control accessories are compatible with this model?
You can pair this screen with the Da-Lite Single Motor Low Voltage Control System 220 Volt (40973E) or a Da-Lite Locking Switch Cover Plate (98837).
