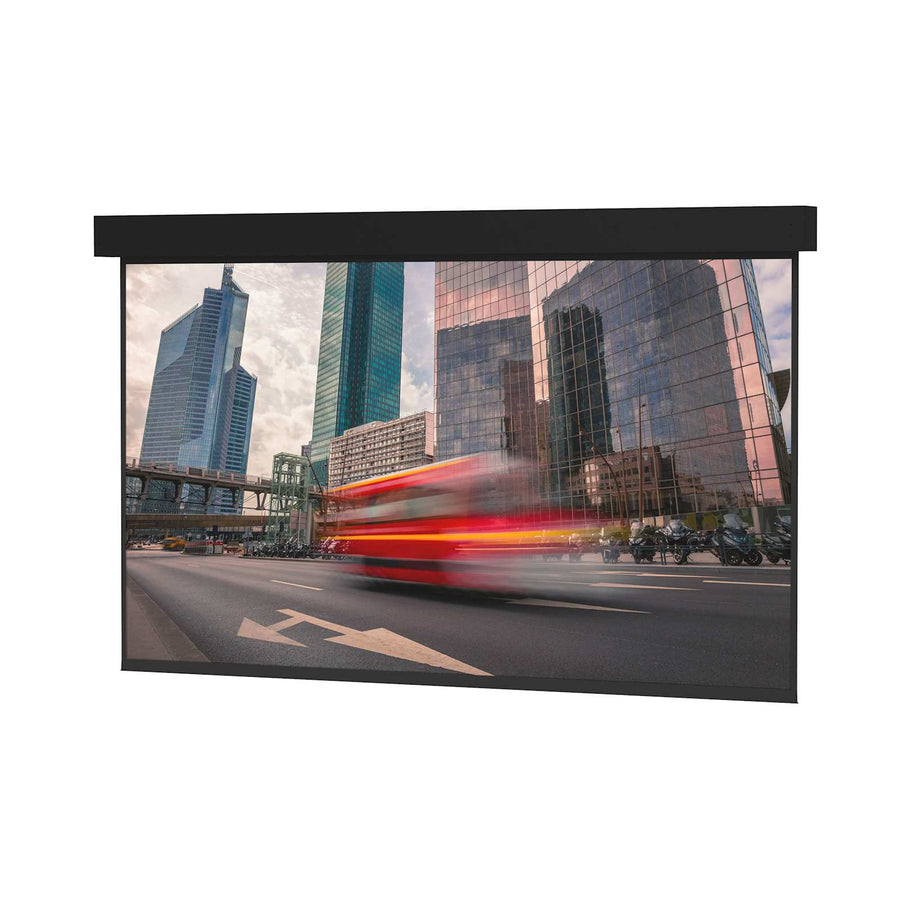

Da-Lite Professional Electrol, 123" x 164" with Matte White - 81633
Matte White electric projection screen for large venues, 123" x 164" (210" diagonal) in a 4:3 video format
The Da-Lite 81633 is a Professional Electrol series electric projection screen designed for large venue applications. This non-tensioned screen features a Matte White surface and is configured for 4:3 video format projection. The unit includes a black painted wooden housing with adjustable brackets, allowing for versatile installation as a ceiling recessed, wall mounted, or suspended unit. For maximum image brightness, the housing features a standard black backing. This specific model, SKU 81633, is a non-tensioned version; installers requiring the Tensioning Cable System should instead select a Tensioned Professional Electrol model. The screen operates via a standard 120V (60Hz) motor and is TAA compliant for federal use. The series is capable of providing seamless surfaces for heights up to and including 16’.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 210 in (533.4 cm) |
| Screen Height | 123 in (312.4 cm) |
| Shipping Weight | 540.99 lbs (245.4 kg) |
| Size | 123" x 164" or 210" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 81633 fit my 4:3 projection setup?
Yes, this screen is specifically configured for 4:3 video format projection with a 123" x 164" surface area.
Does this screen include a tensioning system?
No, this SKU is a non-tensioned model. For projects requiring the Tensioning Cable System, you must purchase the Tensioned Professional Electrol series.
What mounting options are available for the 81633?
The Professional Electrol housing includes adjustable brackets, enabling ceiling recessed, wall mounted, or suspended installations.
What accessories are compatible with the Professional Electrol?
Compatible accessories include the Da-Lite Single Motor Low Voltage Control System (40973) and various replacement wall switches like the stainless steel (92055) or white (80575) models.
Is this screen TAA compliant for government contracts?
Yes, the 81633 is TAA compliant and the country of origin is the US.
