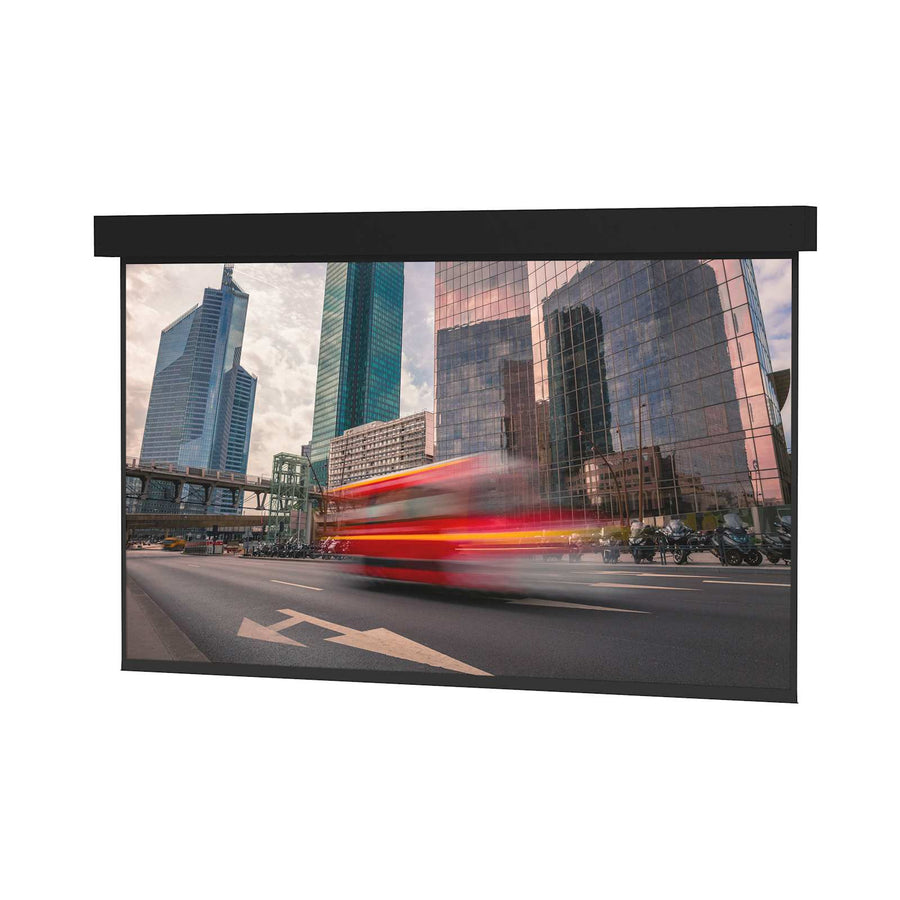

Da-Lite Professional Electrol, 120" x 160" with Matte White - 33027E
200" diagonal motorized projection screen, 120" x 160" Matte White surface, 220V (50Hz) motor for export
The Da-Lite 33027E is a Professional Electrol series motorized projection screen designed for large venue environments. Measuring 120" x 160" (200" diagonal), this screen features a Matte White non-tensioned surface optimized for standard resolution front projection. The unit is built with a black painted wooden housing equipped with adjustable brackets, allowing for versatile installation as a ceiling recessed, wall mounted, or suspended unit. This specific model is configured for export with a 220V (50Hz) motor and includes a black backing to help retain projected brightness. Because this is a non-tensioned surface, it does not include the Tensioning Cable System; installers looking for a tensioned solution should specify the Tensioned Professional Electrol instead. This large-venue screen is TAA compliant and is suitable for professional installations where seamless surfaces up to 16' high are required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 200 in (508 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Dimensions | 181" x 15.75" x 26.13" (459.7 x 40 x 66.4 cm) |
| Shipping Weight | 456 lbs (206.8 kg) |
| Size | 120" x 160" or 200" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068093102 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 33027E fit my projection setup?
This screen is designed for front projection on a 4:3 video format. It features a 120" x 160" Matte White non-tensioned surface for standard resolution applications.
What do I need to purchase to control this screen?
This unit is compatible with the Da-Lite Single Motor Low Voltage Control System 220 Volt (SKU 40973E) or a Da-Lite Replacement Wall Switch 220V (SKU 80575E).
Does this screen include a tensioning system?
No, this SKU (33027E) features a non-tensioned surface. If your installation requires a Tensioning Cable System, you must order the Tensioned Professional Electrol instead.
Can this screen be mounted in a ceiling?
Yes, the Professional Electrol series is designed for multiple mounting types, including ceiling recessed, wall mounting, or suspension from a ceiling via its adjustable brackets.
What is the electrical requirement for this model?
This specific export model operates on a 220V (50Hz) motor and is intended for international power standards.
