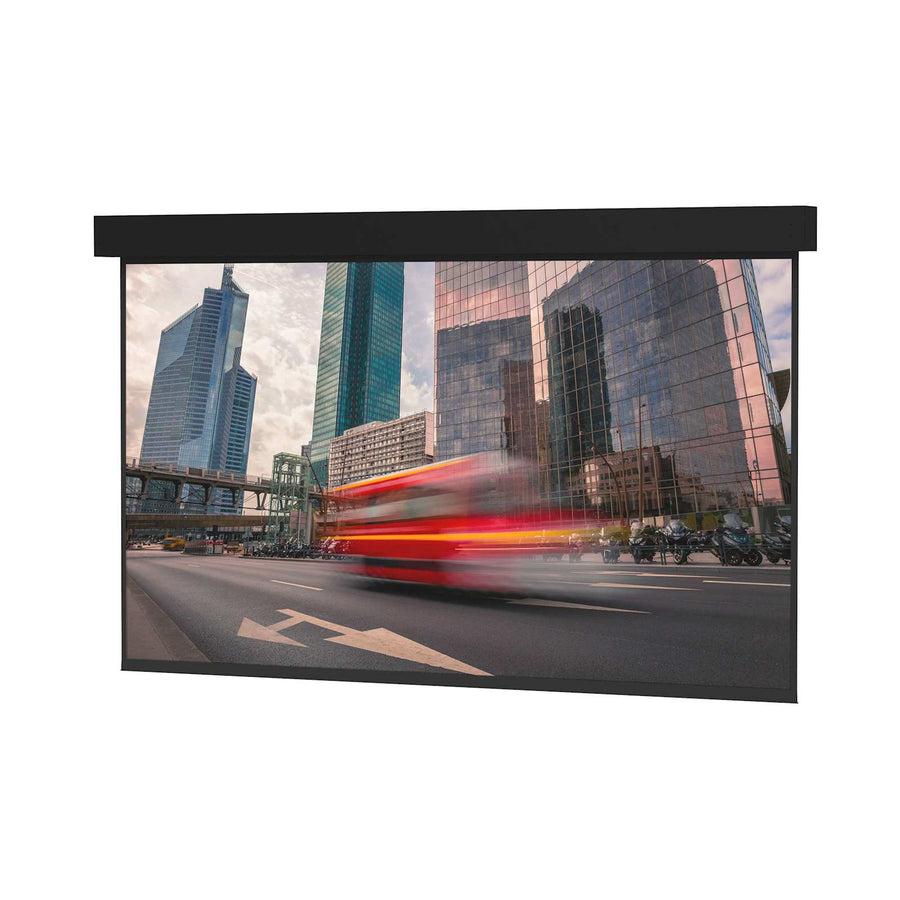

Da-Lite Professional Electrol, 119" x 212" with Matte White - 99780E
Large venue electric projection screen, 119" x 212" dimensions, with a Matte White non-tensioned surface and 220V motor
The Da-Lite 99780E is a Professional Electrol series projection screen designed for large venue applications. This electric screen features a 119" x 212" (302.3 x 538.2 cm) area with a 243" (617.2 cm) diagonal, optimized for 16:9 HDTV aspect ratios. It utilizes a non-tensioned Matte White surface that maintains high brightness through a standard black backing. This specific model is engineered for international use, equipped with a 220V (50Hz) motor. The unit is housed in a black painted wooden casing and includes adjustable brackets to accommodate various installation methods, including ceiling recessed, wall mounted, or suspended from the ceiling. This SKU is a non-tensioned model; for installations requiring a Tensioning Cable System, installers should look for the Tensioned Professional Electrol series. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 243 in (617.2 cm) |
| Screen Height | 119 in (302.3 cm) |
| Shipping Dimensions | 233" x 15.75" x 26.13" (591.8 x 40 x 66.4 cm) |
| Shipping Weight | 599.38 lbs (271.9 kg) |
| Size | 119" x 212" or 243" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068088207 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 99780E screen work with my 16:9 display format?
Yes, this screen features a 16:9 HDTV format, making it suitable for standard high-definition content projection.
Is this screen suitable for international installations?
Yes, this specific SKU is equipped with a 220V (50Hz) motor designed for export use.
What are the mounting requirements for the Professional Electrol series?
The 99780E can be installed via ceiling recessed, wall mounting, or by suspending the unit from a ceiling using its included adjustable brackets.
Does this model include the Tensioning Cable System?
No, this SKU is a non-tensioned model. For a version with a Tensioning Cable System, you must select the Tensioned Professional Electrol series.
What accessories are compatible with the 99780E?
Compatible accessories include the Da-Lite 98837 Locking Switch Cover Plate and the Da-Lite 40973E Single Motor Low Voltage Control System (220 Volt).
