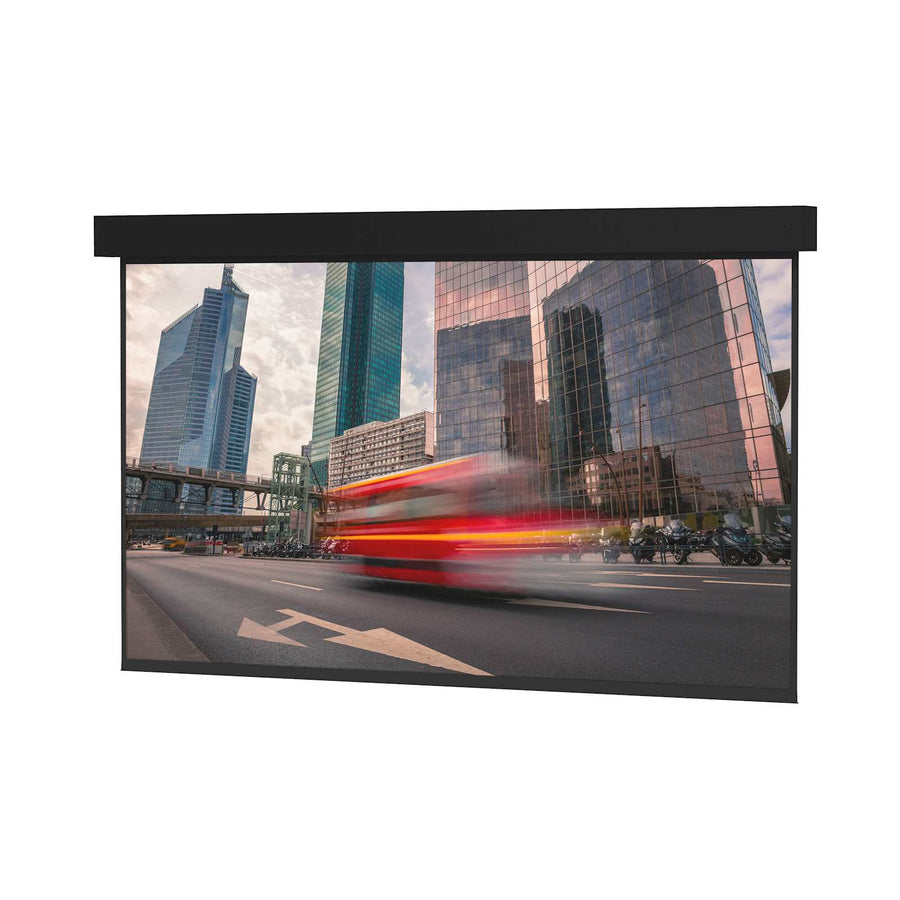

Da-Lite Professional Electrol, 117.5" x 188" with Matte White - 14206
Electric wide 16:10 projection screen, 117.5" x 188" with Matte White surface for large venue applications
The Da-Lite 14206 Professional Electrol is an electric projection screen designed for large venue environments. This 222" diagonal (117.5" x 188") screen features a Matte White, non-tensioned surface and is configured for a Wide 16:10 aspect ratio. It is built with a black painted case and a standard black backing to help retain projected brightness during front projection applications. This model is suitable for ceiling recessed, wall, or suspended installations thanks to its wooden housing and adjustable mounting brackets. This specific SKU is a non-tensioned model; installers requiring a tensioned solution should look for the Tensioned Professional Electrol series. The unit operates on a standard 120V (60Hz) motor and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 222 in (563.9 cm) |
| Screen Height | 117.5 in (298.5 cm) |
| Shipping Weight | 605 lbs (274.4 kg) |
| Size | 117.5" x 188" or 222" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 14206 fit my 16:10 projection setup?
Yes, this screen is specifically configured for a Wide 16:10 aspect ratio with a 117.5" height and 188" width.
What mounting options are available for the 14206 Professional Electrol?
The wooden housing includes adjustable brackets that allow for ceiling recessed, wall mounting, or suspension from the ceiling.
Does this screen include a tensioning system?
No, the 14206 is a non-tensioned model. For applications requiring a Tensioning Cable System, you should select the Tensioned Professional Electrol version.
What electrical requirements are needed for installation?
This unit uses a standard 120V (60Hz) motor. You can enhance control with accessories like the Da-Lite 40973 Low Voltage Control System.
What documentation is available for submittals?
Technical details are available in the Professional Electrol Specification Sheet, and CAD/BIM models are provided for planning.
