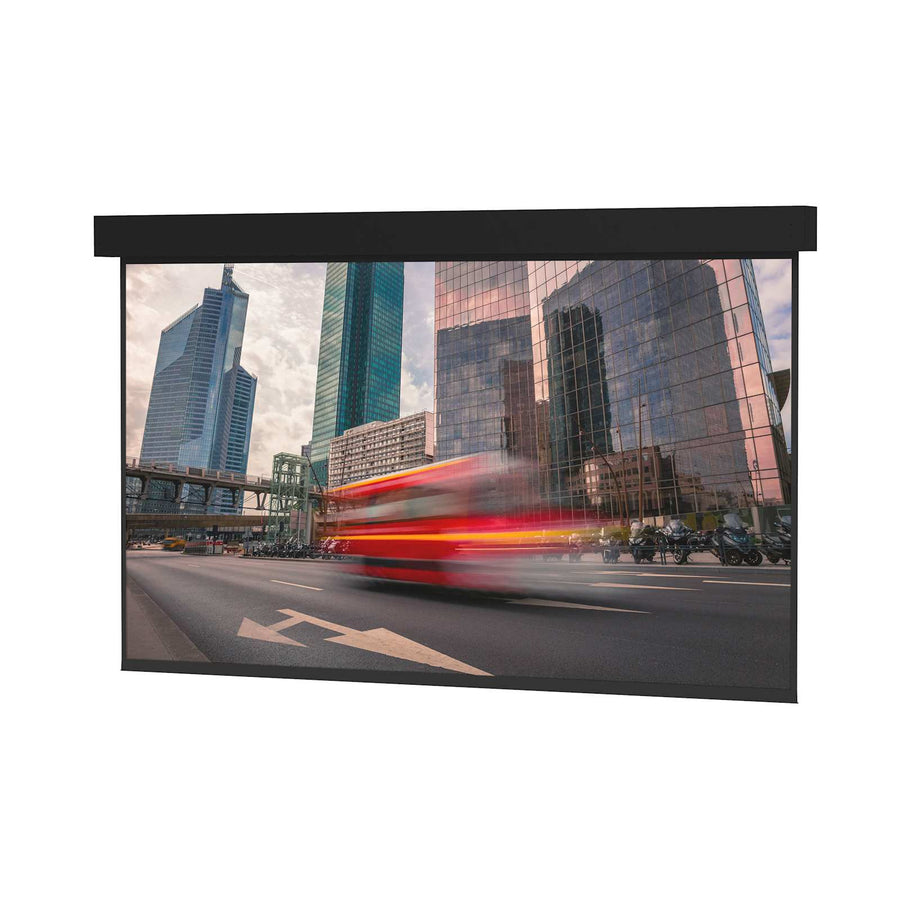

Da-Lite Professional Electrol, 110" x 176" with Matte White - 14205E
Large venue electric projection screen measuring 110" x 176" with a Matte White non-tensioned surface
The Da-Lite 14205E is a Professional Electrol® projection screen designed for large venue applications, offering a wide 16:10 screen format with a 110" x 176" (208" diagonal) dimension. This electric screen features a Matte White non-tensioned surface and is built with a black painted case and standard black backing to help retain projected brightness. It is configured with a 220V (50Hz) motor intended for export markets. This model is suitable for ceiling recessed, wall mounted, or suspended installations via an adjustable bracket system within its wooden housing. Because this is a non-tensioned model, it does not include the Tensioning Cable System; integrators requiring a tensioned surface should instead look for the Tensioned Professional Electrol series. This SKU is TAA compliant and features a three-position, Decora-style switch for operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Shipping Dimensions | 214" x 18" x 26" (543.6 x 45.7 x 66 cm) |
| Shipping Weight | 512 lbs (232.2 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068760158 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 14205E screen work for my projection setup?
This screen is designed for front projection on a 16:10 wide format. It features a Matte White surface and is optimized for large venue environments.
Is this the tensioned version of the Professional Electrol?
No, this SKU is a non-tensioned model. If your installation requires a Tensioning Cable System, you should select a Tensioned Professional Electrol model instead.
What kind of mounting options are available for the 14205E?
The 14205E can be installed as a ceiling recessed unit, wall mounted, or suspended from the ceiling using its included adjustable brackets.
Does this screen come with the motor and switch?
This unit includes an electric 220V (50Hz) motor for export and utilizes a three-position, Decora-style switch for control.
Which documents are available for submittals and installation?
You can access the Professional Electrol Specification Sheet, Installation and Connections instructions, and BIM/CAD models via the Resources tab.
