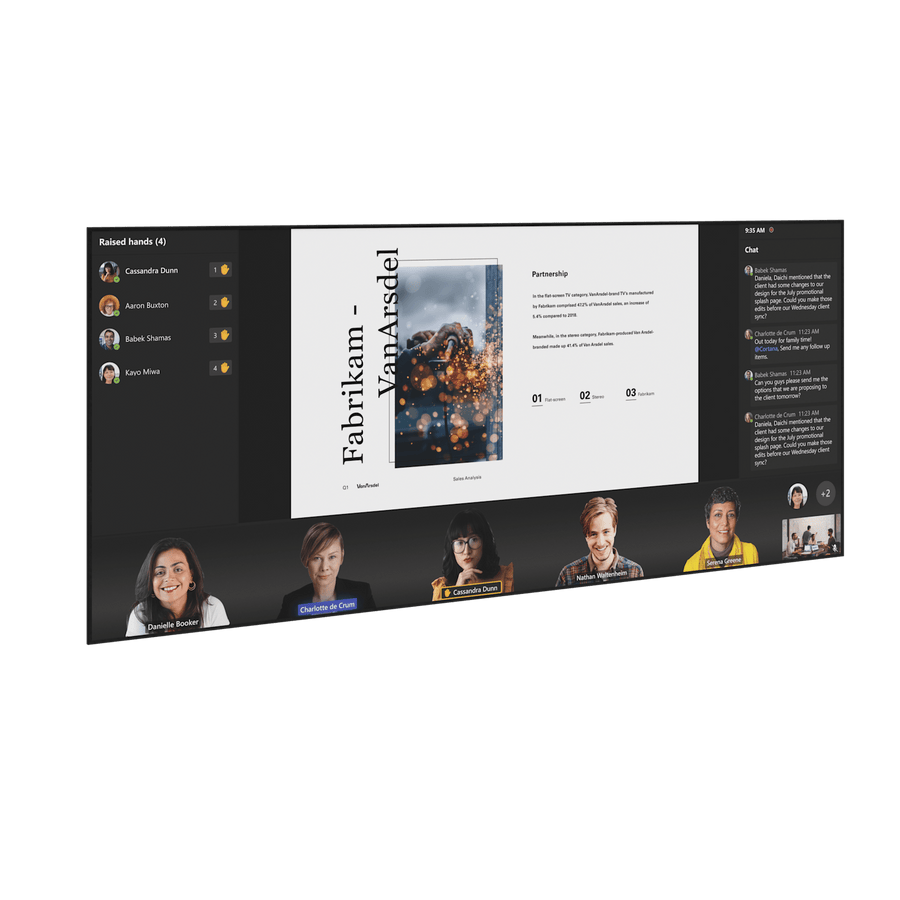

Da-Lite Parallax Thin, 21:9 51.5" x 121" (128 x 300 cm) with Parallax Pure UST 0.6
Ultrawide 21:9 fixed frame screen, 130" diagonal, featuring Parallax Pure UST 0.6 ambient light rejecting technology
The Da-Lite DL17007 is a Parallax Thin series fixed frame screen designed for ultrawide 21:9 formats. This 130" diagonal screen measures 51.5" x 120" and is an ideal solution for Microsoft Teams Front Row setups and collaboration spaces where ambient light control is necessary. This model features the Parallax Pure UST 0.6 surface, which utilizes a micro-layered optical lens system to reject light. This technology includes a special saw-toothed-shaped layer to block light from above, helping to preserve high-contrast, bright images in brightly lit environments. This screen offers a 160° viewing angle and is a high-resolution, ambient light rejecting (ALR) surface. Designed as a wall application, this thin series provides a convenient alternative to rigid screens that ship fully assembled, allowing for a smaller shipping footprint and improved logistics efficiency. This unit ships flat and includes the necessary mounting hardware for installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.62 in (4.1 cm) |
| Height | 51.5 in (130.8 cm) |
| Screen Diagonal | 130 in (330.2 cm) |
| Screen Height | 50.5 in (128.3 cm) |
| Screen Width | 120 in (304.8 cm) |
| Shipping Dimensions | 68" x 9.5" x 10.5" (172.7 x 24.1 x 26.7 cm) |
| Shipping Weight | 46 lbs (20.9 kg) |
| Size | 50.5" x 120" or 130" diagonal |
All other specifications 15
| Viewing Angle | 160° |
| Width | 121 in (307.3 cm) |
| Application | Wall |
| Federal Ops Country of Origin | China |
| Gain | 0.6 |
| Manufacturer | Da-Lite |
| Mounting Hardware Included | Yes |
| Projection Type | Front Projection |
| Screen Format | Ultrawide (21:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Ships Flat | Yes |
| Surface | Parallax Pure UST 0.6 |
| UPC | 840236916443 |
| Warranty | 5 years |
Resources
Questions about this part
What is the exact size of the Da-Lite DL17007 screen?
The Da-Lite DL17007 is specifically designed in a 21:9 ultrawide format with a 130" (330.2 cm) diagonal, measuring 51.5" (130.8 cm) in height and 120" (304.8 cm) in screen width.
What is the purpose of the Parallax Pure UST 0.6 surface?
The Parallax Pure UST 0.6 is an ambient light rejecting (ALR) surface that uses a micro-layered optical lens system and a saw-toothed-shaped layer to block light from above, helping maintain high-contrast images in lit rooms.
What mounting hardware is needed for the DL17007?
The DL17007 includes the necessary mounting hardware for its wall application, and the unit is shipped flat to facilitate easier logistics than large, assembled rigid screens.
Is the Da-Lite DL17007 suitable for bright conference rooms?
Yes, the high-resolution Parallax Pure UST 0.6 surface is designed to mimic the look of a television, preserving bright images even when there is glare from windows or lighting fixtures.
Where can I find the technical drawings for this screen?
Technical documentation for the DL17007 is available, including the Parallax Thin Specification Sheet, Parallax Thin Instructions, and CAD models for 2D design.
