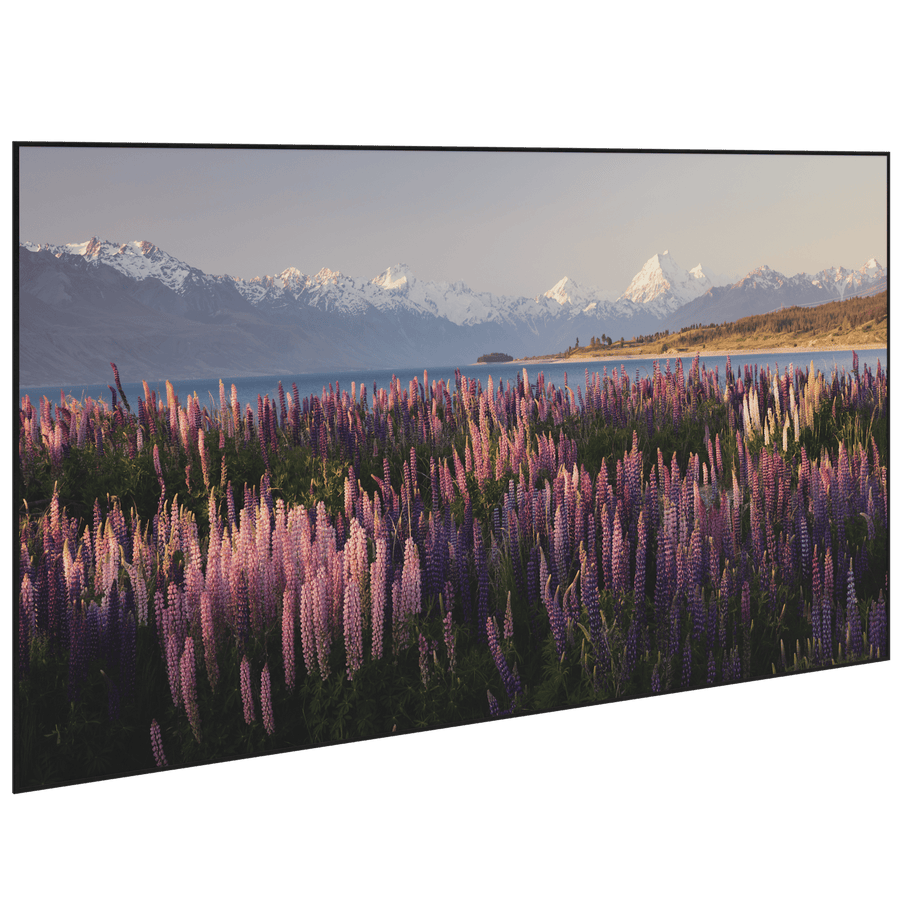

Da-Lite Parallax Thin, 16:9 64.5" x 114" (164 x 290 cm) with Parallax Pure 0.8
Fixed frame 16:9 projection screen with Parallax Pure 0.8 Ambient Light Rejection surface, 130" diagonal, 64.5" x 114" size
The Da-Lite DL18201 is a Parallax Thin series fixed frame screen designed for front projection in environments with significant ambient light. This 130" (330.2 mm) diagonal screen features a 16:9 HDTV format with a width of 114 in (289.6 mm) and a height of 63.5 in (161.3 cm). It utilizes the Parallax Pure 0.8 surface, an Ambient Light Rejecting (ALR) technology that employs a micro-layered optical lens system. This saw-toothed-shaped layer architecture blocks light from above to preserve high-contrast imagery, providing a visual experience similar to a television. This model is a wall application with a 1/2" thin bezel and a 160° viewing angle. Because it ships flat, it avoids the logistical challenges of large, pre-assembled crates while maintaining a high-resolution projection surface for professional collaboration spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.62 in (4.1 cm) |
| Height | 64.5 in (163.8 cm) |
| Screen Diagonal | 130 in (330.2 cm) |
| Screen Height | 63.5 in (161.3 cm) |
| Screen Width | 113 in (287 cm) |
| Shipping Dimensions | 81" x 9.5" x 10.5" (205.7 x 241.3 x 26.7 cm) |
| Shipping Weight | 73 lbs (33.1 kg) |
| Size | 63.5" x 113" or 130" diagonal |
All other specifications 14
| Viewing Angle | 160° |
| Width | 114 in (289.6 cm) |
| Application | Wall |
| Federal Ops Country of Origin | China |
| Gain | 0.8 |
| Manufacturer | Da-Lite |
| Mounting Hardware Included | Yes |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Ships Flat | Yes |
| Surface | Parallax Pure 0.8 |
| Warranty | 5 years |
Resources
Questions about this part
Will the DL18201 work in a room with ambient light?
Yes, the Parallax Pure 0.8 surface uses Ambient Light Rejecting (ALR) technology with a micro-layered optical lens system to maintain high contrast in lit environments.
What are the dimensions of the DL18201 screen?
The screen has a width of 114 in (289.6 cm), a height of 63.5 in (161.3 cm), and a total screen diagonal of 130 in (330.2 mm).
What documentation is available for submittals and installation?
Installers can access the Parallax Thin Specification Sheet, Product Information Sheet, User Manual, and BIM/CAD models via the Resources tab.
What is the difference between the Parallax Thin and traditional rigid screens?
The Parallax Thin series is re-engineered to ship flat, offering a smaller shipping footprint and easier logistics than traditional rigid screens that arrive in large crates.
How long is the warranty for this screen?
This Da-Lite Parallax Thin screen is backed by a 5-year warranty.
