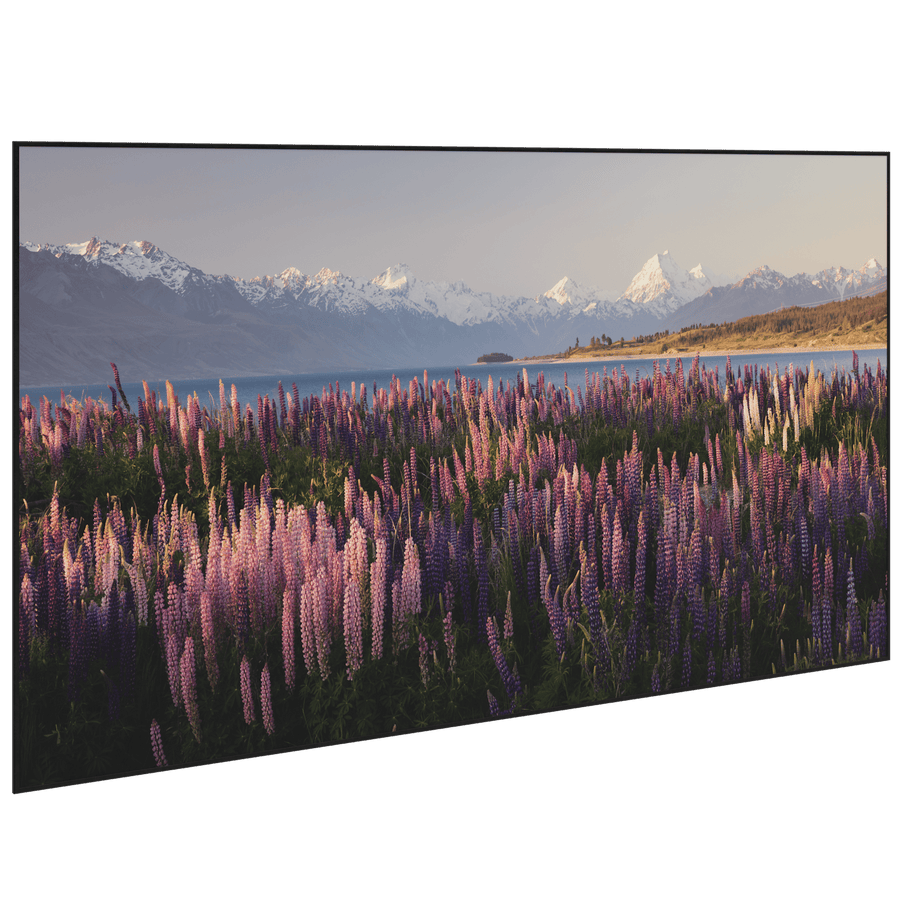

Da-Lite Parallax Thin, 16:9 60" x 105.5" (150 x 266 cm) with Parallax Pure UST 0.6
120" fixed frame screen with Parallax Pure UST 0.6 ambient light rejecting surface and 16:9 HDTV format
The Da-Lite DL17005 is a 120" (304.8 cm) diagonal Parallax Thin fixed frame screen designed for high-performance projection in environments with ambient light. This 16:9 HDTV format screen features the Parallax Pure UST 0.6 surface, which utilizes a micro-layered optical lens system to reject light from above. This technology allows the screen to maintain high-contrast, bright images in brightly lit rooms, mimicking the appearance of a television while eliminating glare from windows or overhead lighting fixtures. The screen measures 105.5 in (268 cm) in width and 59 in (149.9 cm) in height, with a slim 1.62 in (4.1 cm) depth profile. Because it is part of the Parallax Thin series, this screen ships flat to provide a more efficient logistics solution compared to rigid, fully assembled screens. It is intended for wall application and includes the necessary mounting hardware for installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.62 in (4.1 cm) |
| Height | 60 in (152.4 cm) |
| Screen Diagonal | 120 in (304.8 cm) |
| Screen Height | 59 in (149.9 cm) |
| Screen Width | 104.5 in (265.4 cm) |
| Shipping Dimensions | 78" x 9.5" x 10.5" (198.1 x 24.1 x 26.7 cm) |
| Shipping Weight | 55 lbs (25 kg) |
| Size | 59" x 104.5" or 120" diagonal |
All other specifications 15
| Viewing Angle | 160° |
| Width | 105.5 in (268 cm) |
| Application | Wall |
| Federal Ops Country of Origin | China |
| Gain | 0.6 |
| Manufacturer | Da-Lite |
| Mounting Hardware Included | Yes |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Ships Flat | Yes |
| Surface | Parallax Pure UST 0.6 |
| UPC | 840236916429 |
| Warranty | 5 years |
Resources
Questions about this part
Is the DL17005 compatible with ultra short throw projectors?
Yes, this model features the Parallax Pure UST 0.6 surface, which is specifically designed for ultra short throw projection applications.
What mounting requirements are needed for the DL17005?
This is a wall application screen that comes with the necessary mounting hardware included in the package.
How does the Parallax Thin series differ from traditional rigid screens?
The Parallax Thin series is designed to ship flat, offering a smaller shipping footprint and more efficient logistics than large, fully assembled rigid screens.
What is the viewing angle for this Da-Lite screen?
The DL17005 provides a 160° viewing angle, making it suitable for wide-seating areas in collaborative spaces.
Where can I find the installation instructions and CAD models for the DL17005?
You can download the Parallax Thin Instructions (PDF) and 2D CAD Models (zip) from the product's resource section.
