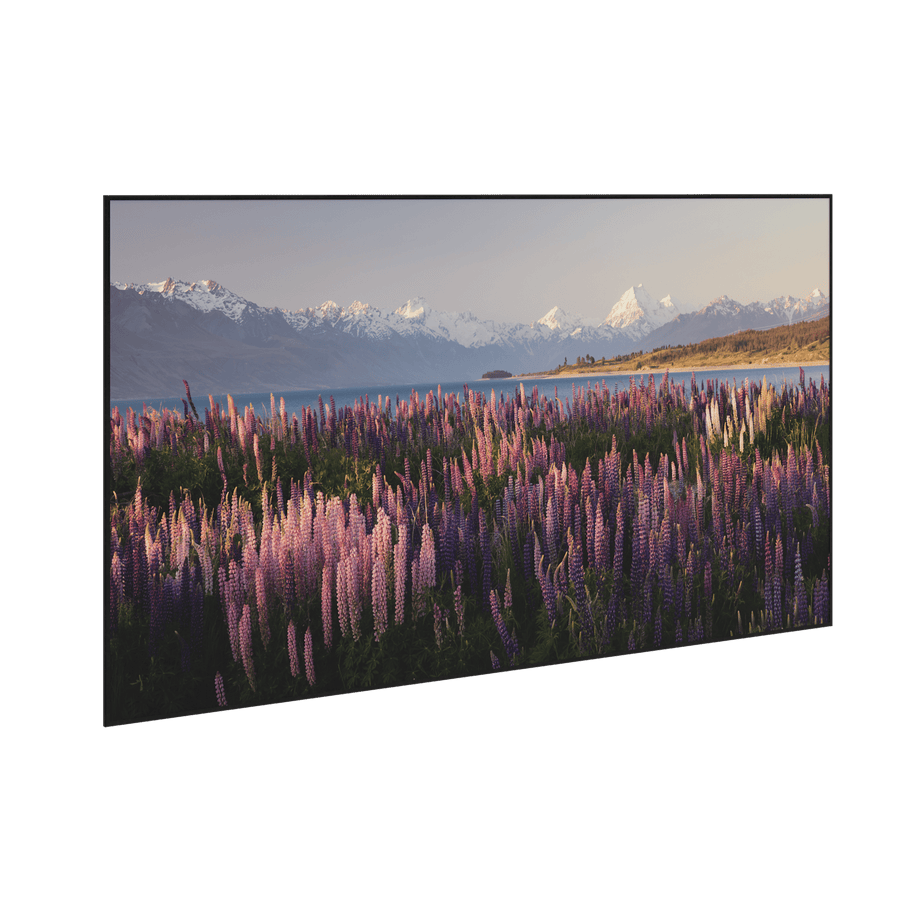

Da-Lite Parallax Thin, 16:9 50" x 88" (124 x 221 cm) with Parallax Pure 0.8
100" diagonal fixed frame screen with 16:9 format and Parallax Pure 0.8 ambient light rejecting surface
The Da-Lite DL18198 is a 100" diagonal fixed frame screen from the Parallax Thin series, designed as a high-performance alternative to traditional rigid screens that require large shipping crates. This model features a slim 1.62 in (4.1 cm) depth and a 1/2" thin bezel, making it a space-efficient solution for wall applications. It utilizes the Parallax Pure 0.8 surface, which employs a micro-layered optical lens system with a saw-toothed-shaped layer to block overhead light and absorb ambient light. This ambient light rejecting (ALR) technology preserves high-contrast, bright images, providing a viewing experience that mimics a television without the glare from windows or ceiling fixtures. This 16:9 HDTV format screen is ideal for collaboration spaces and high-resolution front projection applications where ambient light control is essential to maintaining image integrity and a 160° viewing angle.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.62 in (4.1 cm) |
| Height | 50 in (127 cm) |
| Screen Diagonal | 100 in (254 cm) |
| Screen Height | 49 in (124.5 cm) |
| Screen Width | 87 in (221 cm) |
| Shipping Dimensions | 65" x 9.5" x 10.5" (165.1 x 24.1 x 26.7 cm) |
| Shipping Weight | 37 lbs (16.8 kg) |
| Size | 49" x 87" or 100" diagonal |
All other specifications 14
| Viewing Angle | 160° |
| Width | 88 in (223.5 cm) |
| Application | Wall |
| Federal Ops Country of Origin | China |
| Gain | 0.8 |
| Manufacturer | Da-Lite |
| Mounting Hardware Included | Yes |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Ships Flat | Yes |
| Surface | Parallax Pure 0.8 |
| Warranty | 5 years |
Resources
Questions about this part
Will the DL18198 fit my 100 inch display setup?
Yes, this DL18198 model is a 100 in (254 cm) diagonal screen with an 87 in (221 cm) screen width and a 49 in (124.5 cm) screen height, specifically configured for 16:9 HDTV formats.
How does the Parallax Pure 0.8 surface work in bright rooms?
The Parallax Pure 0.8 surface uses a micro-layered optical lens system and a saw-toothed-shaped layer to block light from above, allowing for high-contrast images in environments with ambient light.
What is required for wall installation of this screen?
This is a wall application fixed frame screen that ships flat. While mounting hardware is included with the DL18198, you should consult the Parallax Thin Instructions PDF for specific wall backing requirements.
Can this screen be used for front projection?
Yes, the DL18198 is designed specifically for front projection applications to provide high-resolution, ambient light-rejecting performance.
Is this screen part of a larger series of sizes?
Yes, the DL18198 is one variant in the Parallax Thin series; other configurations in this series include different sizes such as 41.5" x 97" or 64.5" x 114".
