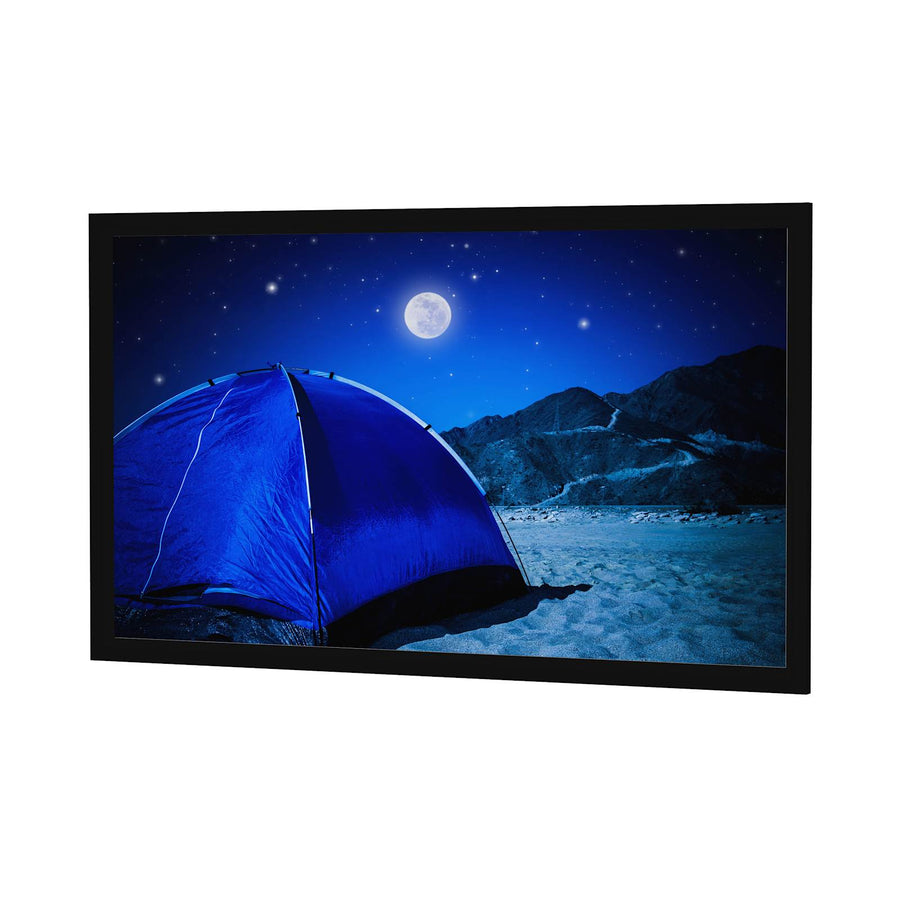

Da-Lite Parallax, 59" x 104.5" with Parallax Pure UST 0.6
120" diagonal fixed frame screen with Parallax Pure UST 0.6 ambient light rejecting surface for ultra short-throw projectors
The Da-Lite 28807V is a 120" diagonal fixed frame screen designed specifically for high-performance environments using ultra short-throw projection. This unit features a 59" x 104.5" HDTV 16:9 format with a Parallax Pure UST 0.6 surface. This specific surface is engineered for ultra short-throw projectors with a throw ratio of 0.4:1 or less. The screen utilizes a 2.5" thick aluminum frame finished with black Pro-Trim® fabric, which helps absorb light surrounding the viewing area to increase perceived contrast. The Parallax Pure technology employs a micro-layered optical lens system with sawtoothed-shaped layers to block overhead light while preserving high-contrast, bright imagery. This surface mimics a television appearance by rejecting ambient light from windows or fixtures. For installation, the screen surface attaches to the frame using O-rings and ships unassembled. This TAA compliant model is suitable for both professional AV installations and residential settings.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Product Weight | 34 lbs (15.4 kg) |
| Screen Diagonal | 120 in (304.8 cm) |
| Screen Height | 59 in (149.9 cm) |
| Screen Width | 104_5 |
| Shipping Dimensions | 119" x 8" x 9" (302.3 x 20.3 x 22.9 cm) |
| Shipping Weight | 34 lbs (15.4 kg) |
| Size | 59" x 104.5" or 120" diagonal |
| Viewing Angle | 80° |
All other specifications 14
| Application | Wall |
| Federal Ops Country of Origin | US |
| Frame Type | Pro-Trim |
| Gain | 0.6 |
| Mounting Method | Wall Bracket |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Pure UST 0.6 |
| TAA Compliant | Yes |
| UPC | 717068440579 |
| Certifications | TAA |
| Warranty | 5 years |
Resources
Questions about this part
The 28807V features the Parallax Pure UST 0.6 surface, which is specifically designed for ultra short-throw projectors with a throw ratio of 0.4:1 or less.
The 28807V features the Parallax Pure UST 0.6 surface, which is specifically designed for ultra short-throw projectors with a throw ratio of 0.4:1 or less.
While the 28807V uses the UST 0.6 surface for ultra short-throw projectors, the Parallax Pure 0.8 surface is intended for standard throw projectors with a 1.5:1 throw ratio or greater.
While the 28807V uses the UST 0.6 surface for ultra short-throw projectors, the Parallax Pure 0.8 surface is intended for standard throw projectors with a 1.5:1 throw ratio or greater.
This is a wall-mount application using a wall bracket. The screen ships unassembled and the surface is secured to the frame with O-rings.
This is a wall-mount application using a wall bracket. The screen ships unassembled and the surface is secured to the frame with O-rings.
Yes, the Parallax Pure UST 0.6 surface uses ambient light rejecting (ALR) technology with a micro-layered optical lens system to maintain high-contrast images in brightly lit environments.
Yes, the Parallax Pure UST 0.6 surface uses ambient light rejecting (ALR) technology with a micro-layered optical lens system to maintain high-contrast images in brightly lit environments.
Installers can access the Parallax Specification Sheet, the Parallax Instructions PDF, or the Parallax CAD Models for detailed planning.
Installers can access the Parallax Specification Sheet, the Parallax Instructions PDF, or the Parallax CAD Models for detailed planning.
