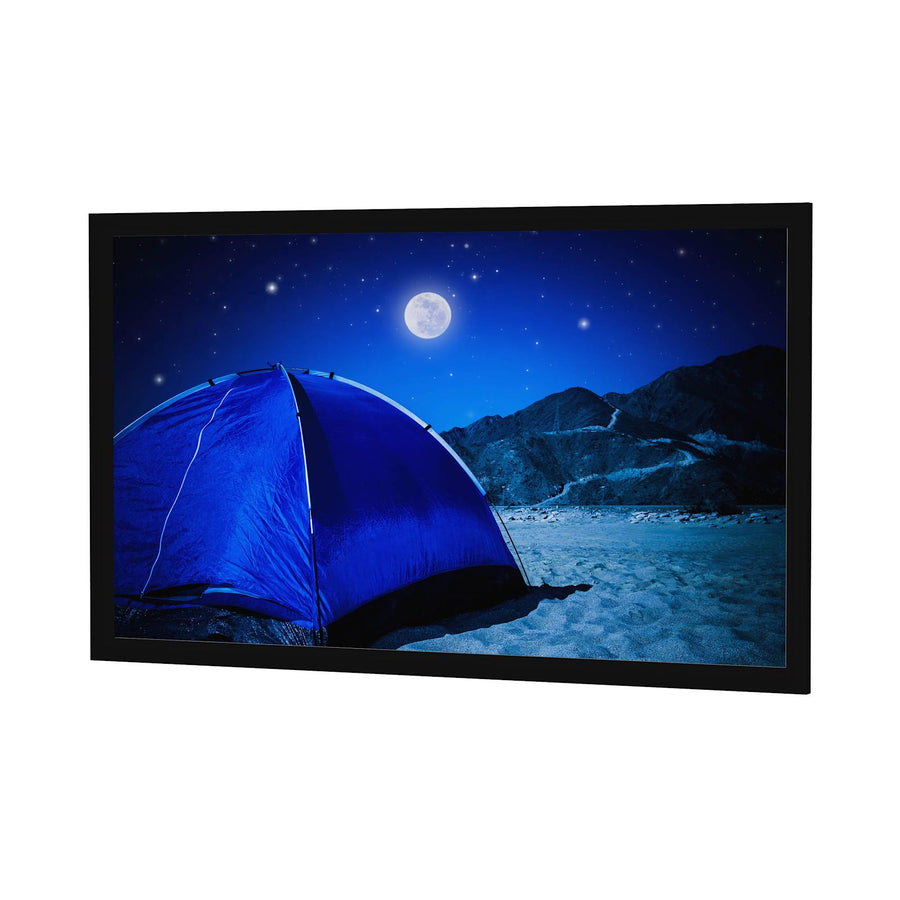

Da-Lite Parallax, 58" x 136.5" with Parallax Pure 0.8
Fixed frame Cinemascope screen, 58" x 136.5" with Parallax Pure 0.8 ambient light rejecting surface
The Da-Lite 28858V is a fixed frame screen measuring 58" x 136.5" (148" diagonal) designed for professional cinema environments. This model features the Parallax Pure 0.8 surface, which utilizes a micro-layered optical lens system to reject ambient light. This technology is specifically engineered for standard throw projectors with a throw ratio of 1.5:1 or greater, effectively mimicking the high-contrast appearance of a television by absorbing or blocking light from above. The 2.5" thick aluminum frame is finished with black Pro-Trim® fabric to maximize light absorption around the viewing area. This Cinemascope (2.35:1) format is ideal for Pro AV applications, providing high-resolution imagery in brightly lit rooms. For installation, this unit arrives unassembled and is secured using an O-ring system that attaches the surface to the Pro-Trim® frame. This TAA-compliant, US-made solution is backed by a 5-year warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Product Weight | 39 lbs (17.7 kg) |
| Screen Diagonal | 148 in (375.9 cm) |
| Screen Height | 58 in (147.3 cm) |
| Screen Width | 136_5 |
| Shipping Dimensions | 151" x 10" x 12" (383.5 x 25.4 x 30.5 cm) |
| Shipping Weight | 39 lbs (17.7 kg) |
| Size | 58" x 136.5" or 148" diagonal |
| Viewing Angle | 85° |
All other specifications 14
| Application | Wall |
| Federal Ops Country of Origin | US |
| Frame Type | Pro-Trim |
| Gain | 0.8 |
| Mounting Method | Wall Bracket |
| Projection Type | Front Projection |
| Screen Format | Cinemascope (2.35:1) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Pure 0.8 |
| TAA Compliant | Yes |
| UPC | 717068439887 |
| Certifications | TAA |
| Warranty | 5 years |
Resources
Questions about this part
What projector throw ratio is required for the 28858V?
This SKU features the Parallax Pure 0.8 surface, which is intended for use with standard throw projectors with a 1.5:1 throw ratio or greater.
Is this screen suitable for high ambient light environments?
Yes, the Parallax Pure 0.8 surface uses ambient light rejecting (ALR) technology to maintain high-contrast imagery even when light is present in the room.
How is the screen surface attached to the frame?
The Parallax screen surface is secured to the 2.5" thick Pro-Trim® frame using a specialized O-ring system.
Does this screen come pre-assembled?
This model ships unassembled to ensure safe transport, but is designed for easy installation upon arrival.
What documentation is available for submittals?
For technical submittals, you can access the Parallax Specification Sheet, CAD models, or the Parallax Instructions PDF through the resources tab.
