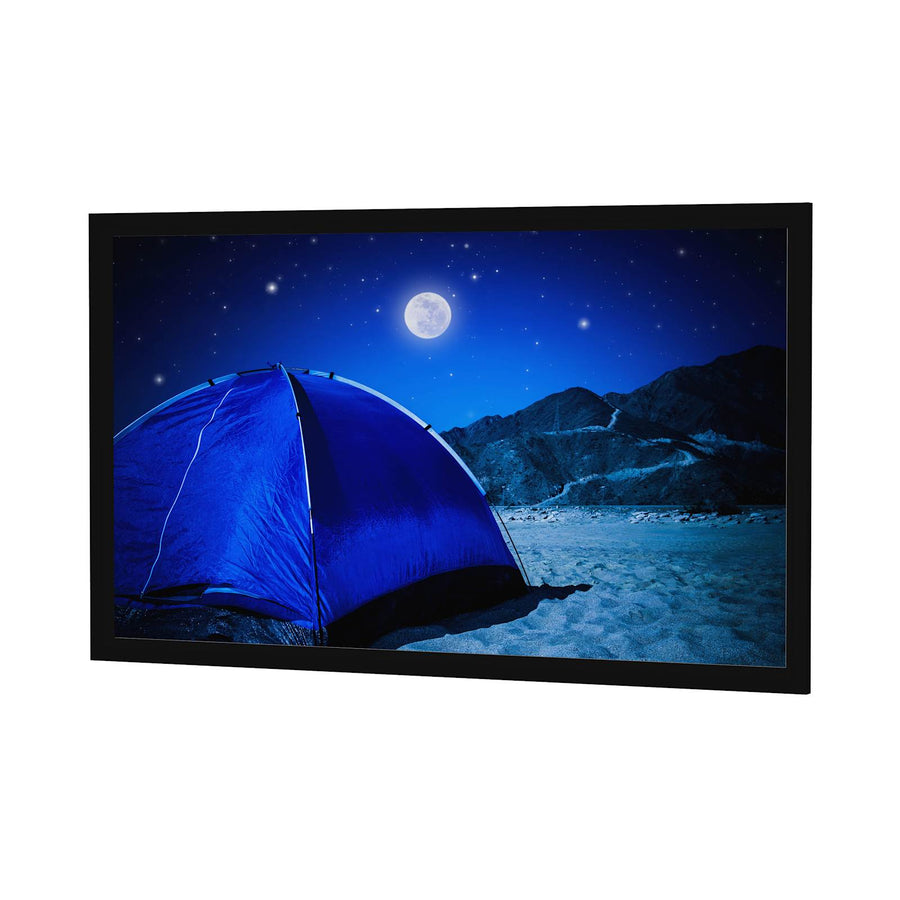

Da-Lite Parallax, 57.5" x 92" with Parallax Pure 0.8
109" diagonal fixed frame screen with 16:10 Wide format and Parallax Pure 0.8 ambient light rejecting surface
The Da-Lite 28851V is a 109" diagonal fixed frame screen designed for high-performance projection in environments with ambient light. This unit features a 16:10 Wide screen format and utilizes a Parallax Pure 0.8 surface, which is specifically engineered for standard throw projectors with a ratio of 1.5:1 or greater. The screen utilizes Ambient Light Rejection (ALR) technology, employing a micro-layered optical lens system and a saw-toothed-shaped layer to block overhead light and preserve high-contrast, bright images. This technology allows the screen to mimic the appearance of a television by rejecting glare from windows or lighting fixtures. The 57.5" x 92" screen is housed in a 2.5" thick aluminum frame finished with black Pro-Trim® fabric to help absorb light around the viewing area. For installation, this screen ships unassembled and uses O-rings to attach the surface to the frame. It is TAA compliant and includes a 5-year warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Product Weight | 31 lbs (14.1 kg) |
| Screen Diagonal | 109 in (276.9 cm) |
| Screen Height | 57.5 in (146.1 cm) |
| Screen Width | 92 in (233.7 cm) |
| Shipping Dimensions | 106" x 8" x 9" (269.2 x 20.3 x 22.9 cm) |
| Shipping Weight | 32 lbs (14.5 kg) |
| Size | 57.5" x 92" or 109" diagonal |
| Viewing Angle | 85° |
All other specifications 14
| Application | Wall |
| Federal Ops Country of Origin | US |
| Frame Type | Pro-Trim |
| Gain | 0.8 |
| Mounting Method | Wall Bracket |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Pure 0.8 |
| TAA Compliant | Yes |
| UPC | 717068439818 |
| Certifications | TAA |
| Warranty | 5 years |
Resources
Questions about this part
Will this Parallax screen work with my projector?
The 28851V features a Parallax Pure 0.8 surface which is designed for standard throw projectors with a throw ratio of 1.5:1 or greater. For ultra short-throw projectors with a ratio of 0.4:1 or less, a Parallax Pure UST 0.6 surface would be required.
What is the mounting requirement for the 28851V?
This is a fixed frame screen designed for wall application using a wall bracket. It is also suitable for flown installations when used with the support of spreader bars.
How does the ALR surface handle ambient light?
The Parallax Pure 0.8 surface uses a micro-layered optical lens system and a saw-toothed-shaped layer to block light from above, preserving image brightness in brightly lit environments.
What documentation is available for submittals?
Detailed technical information is available in the Parallax Specification Sheet and the Parallax Product Information Sheet. For CAD needs, a zip file containing Parallax CAD Models is available.
Is this screen TAA compliant?
Yes, this model is TAA compliant and is manufactured in the US.
