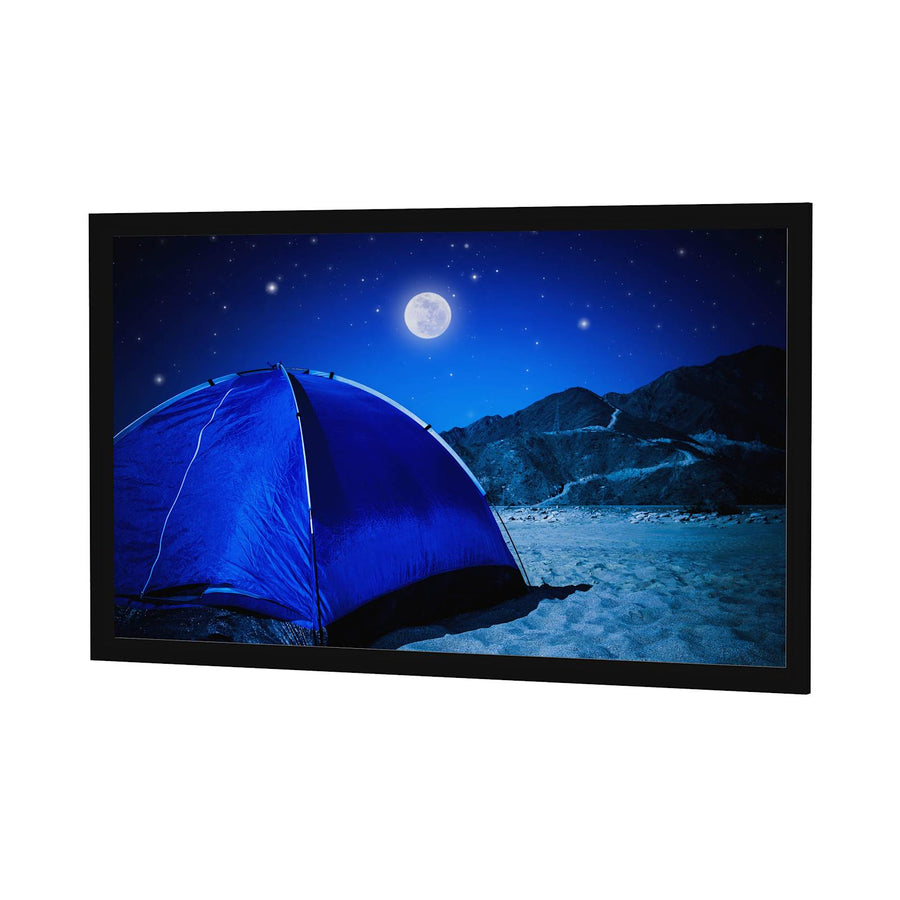

Da-Lite Parallax, 54" x 126" with Parallax Pure 0.8
54" x 126" Cinemascope fixed frame screen with Parallax Pure 0.8 Ambient Light Rejecting surface
The Da-Lite 28857V is a fixed frame screen measuring 54" x 126" (137.2 x 320 mm) with a 138" (350.5 cm) diagonal. This unit features a 2.35:1 Cinemascope format, making it an ideal choice for professional AV environments and high-end residential installations. It utilizes the Parallax Pure 0.8 surface, an Ambient Light Rejecting (ALR) technology that employs a micro-layered optical lens system to maintain high-contrast, bright images even in environments with significant ambient light. This specialized surface uses saw-toothed layers to block light from above, providing a visual experience similar to a television without the interference of glare from windows or overhead lighting. The 2.5" thick aluminum frame is finished with Pro-Trim® black fabric to absorb surrounding light and enhance image clarity. This TAA compliant screen is designed for front projection and is shipped unassembled for simplified installation using the included O-rings to secure the surface to the frame.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Product Weight | 36 lbs (16.3 kg) |
| Screen Diagonal | 138 in (350.5 cm) |
| Screen Height | 54 in (137.2 cm) |
| Screen Width | 126 in (320 cm) |
| Shipping Weight | 36 lbs (16.3 kg) |
| Size | 54" x 126" or 138" diagonal |
| Viewing Angle | 85° |
| Application | Wall |
All other specifications 11
| Federal Ops Country of Origin | US |
| Frame Type | Pro-Trim |
| Gain | 0.8 |
| Mounting Method | Wall Bracket |
| Projection Type | Front Projection |
| Screen Format | Cinemascope (2.35:1) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Pure 0.8 |
| Certifications | TAA |
| Warranty | 5 years |
Resources
Questions about this part
Is the Da-Lite 28857V compatible with ultra short-throw projectors?
No, this specific model features the Parallax Pure 0.8 surface designed for standard throw projectors with a ratio of 1.5:1 or greater. For ultra short-throw projectors with a 0.4:1 throw or less, you would need the Parallax Pure UST 0.6 surface.
What are the dimensions of this Parallax screen?
This screen has a width of 126" (320 mm), a height of 54" (137.2 mm), and a total diagonal of 138" (350.5 cm).
How is the screen surface attached to the frame?
The Parallax Pure 0.8 surface is secured to the 2.5" thick aluminum frame using O-rings.
What is the viewing angle for the 28857V?
The Parallax 28857V provides a viewing angle of 85°.
Which documents are available for submittals for this model?
You can download the Parallax Specification Sheet, the Parallax Product Information Sheet, or the Parallax Instructions PDF for technical and installation guidance.
