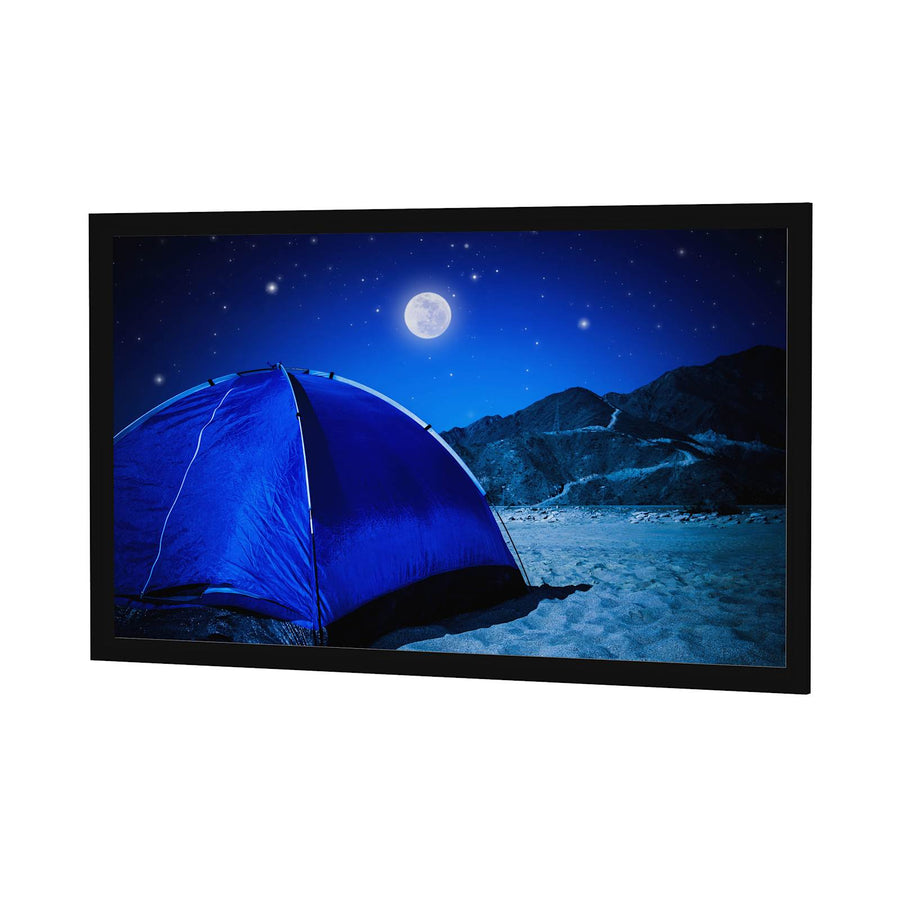

Da-Lite Parallax, 52" x 92" with Parallax Pure 0.8
Fixed frame projection screen with Parallax Pure 0.8 ambient light rejecting surface, 52" x 92" dimensions, and Pro-Trim finish
The Da-Lite 28846V is a 52" x 92" fixed frame screen designed for high-performance projection in environments with ambient light. This unit features a 106 in (269.2 cm) diagonal area and is equipped with a 2.5" thick bezel aluminum frame. To enhance visual contrast and absorb light surrounding the viewing area, the frame is finished with black Pro-Trim® fabric. The included Parallax Pure 0.8 surface utilizes a micro-layered optical lens system and a saw-toothed-shaped layer to block light from above, maintaining high-contrast, bright images even in brightly lit rooms. This surface is specifically engineered for standard throw projectors with a throw ratio of 1.5:1 or greater. The screen surface attaches to the frame using O-rings and is shipped unassembled to facilitate easier installation on-site. This TAA compliant, front-projection solution is suitable for both professional AV installs and residential settings.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Product Weight | 31 lbs (14.1 kg) |
| Screen Diagonal | 106 in (269.2 cm) |
| Screen Height | 52 in (132.1 cm) |
| Screen Width | 92 in (233.7 cm) |
| Shipping Dimensions | 106" x 8" x 9" (269.2 x 20.3 x 22.9 cm) |
| Shipping Weight | 31 lbs (14.1 kg) |
| Size | 52" x 92" or 106" diagonal |
| Viewing Angle | 85° |
All other specifications 14
| Application | Wall |
| Federal Ops Country of Origin | US |
| Frame Type | Pro-Trim |
| Gain | 0.8 |
| Mounting Method | Wall Bracket |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Pure 0.8 |
| TAA Compliant | Yes |
| UPC | 717068952553 |
| Certifications | TAA |
| Warranty | 5 years |
Resources
Questions about this part
Will the Da-Lite 28846V work with my projector?
This screen uses the Parallax Pure 0.8 surface, which is designed for standard throw projectors with a 1.5:1 throw ratio or greater. For ultra short-throw projectors with a 0.4:1 throw ratio or less, a different surface like Parallax Pure UST 0.6 is required.
What is required for mounting this screen?
The 28846V is a wall-mounted fixed frame screen that utilizes a wall bracket mounting method. It is suitable for both residential installations and professional AV applications.
What is the difference between this and the Parallax Pure UST surface?
This SKU (28846V) features the Parallax Pure 0.8 surface meant for standard throw projectors. The UST variant is a different surface optimized for ultra short-throw projectors with a 0.4:1 throw ratio or less.
Which documents are available for submittals and installation?
You can access the Parallax Specification Sheet, CAD models, and the Parallax Installation and Connections PDF via the resources section to assist with project submittals and setup.
Is this screen suitable for bright environments?
Yes, the Parallax Pure 0.8 surface is an Ambient Light Rejecting (ALR) material that uses a micro-layered optical lens system to preserve high-contrast images in environments with ambient light.
