Da-Lite Parallax, 49" x 87" with Parallax Pure UST 0.6
100 inch fixed frame screen with Parallax Pure UST 0.6 ambient light rejecting surface for ultra short-throw projection

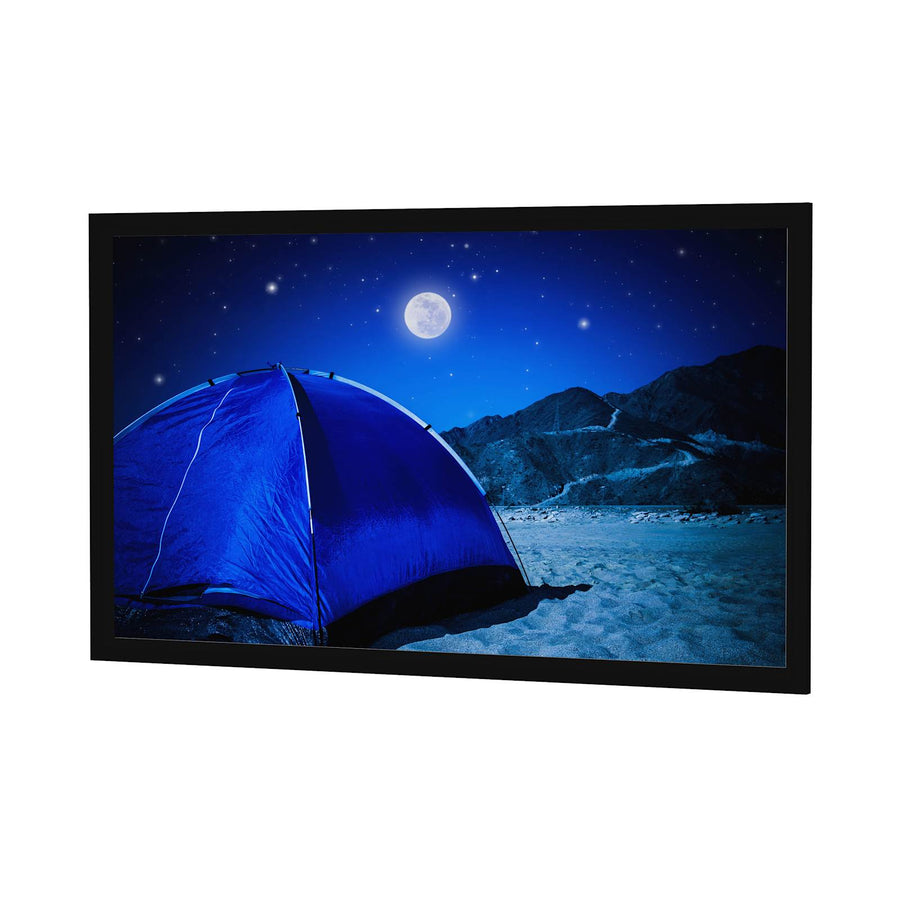

The Da-Lite 28804V is a fixed frame screen specifically engineered for ultra short-throw (UST) projection environments. Featuring the Parallax Pure UST 0.6 surface, this 100 inch (254 cm) diagonal screen is designed to work with projectors with a throw ratio of 0.4:1 or less. This ambient light rejecting (ALR) technology utilizes a micro-layered optical lens system and a saw-toothed layer to block overhead light, preserving high-contrast images even in brightly lit rooms. The 49" x 87" (124.5 x 221 cm) screen is housed in a 2.5" thick Pro-Trim aluminum frame, which is finished in black fabric to help absorb stray light around the viewing area. This 16:9 HDTV format screen is TAA compliant and includes a 5-year warranty. Because the surface attaches to the frame using O-rings, it provides a stable and high-resolution viewing experience that mimics a large-format television.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Product Weight | 30 lbs (13.6 kg) |
| Screen Diagonal | 100 in (254 cm) |
| Screen Height | 49 in (124.5 cm) |
| Screen Width | 87 in (221 cm) |
| Shipping Dimensions | 101" x 8" x 9" (256.5 x 20.3 x 22.9 cm) |
| Shipping Weight | 30 lbs (13.6 kg) |
| Size | 49" x 87" or 100" diagonal |
| Viewing Angle | 80° |
All other specifications 14
| Application | Wall |
| Federal Ops Country of Origin | US |
| Frame Type | Pro-Trim |
| Gain | 0.6 |
| Mounting Method | Wall Bracket |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Pure UST 0.6 |
| TAA Compliant | Yes |
| UPC | 717068440470 |
| Certifications | TAA |
| Warranty | 5 years |
Resources
Questions about this part
Will the 28804V work with my ultra short-throw projector?
Yes, this SKU features the Parallax Pure UST 0.6 surface, which is specifically designed for projectors with a throw ratio of 0.4:1 or less.
What is the difference between the UST 0.6 and the Parallax Pure 0.8?
The 0.6 surface is for ultra short-throw projectors (0.4:1 or less), whereas the Parallax Pure 0.8 surface is intended for standard throw projectors with a 1.5:1 ratio or greater.
What do I need to know about the frame and installation?
The screen features a 2.5" thick Pro-Trim aluminum frame that arrives unassembled for easy installation and attaches to the frame using O-rings.
Is this screen suitable for bright rooms?
Yes, the Parallax Pure UST 0.6 surface uses micro-layered optical technology to reject ambient light, helping to maintain brightness and contrast in lit environments.
What documentation is available for submittals?
Technical details can be found in the Parallax Specification Sheet or the Parallax Product Information Sheet provided in the resources section.
