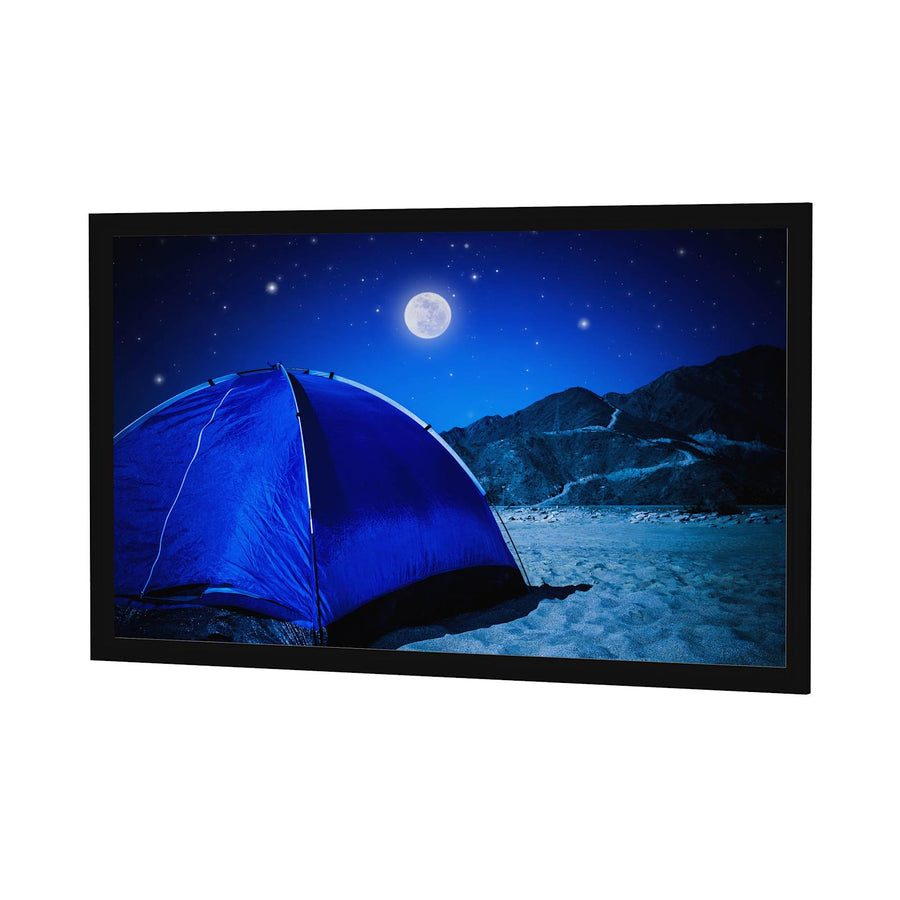

Da-Lite Parallax, 45" x 80" with Parallax Pure UST 0.6
Fixed frame screen for ultra short-throw projectors, featuring Parallax Pure UST 0.6 ambient light rejecting surface, 45" x 80" size
The Da-Lite 28803V is a 45" x 80" fixed frame screen designed for high-performance environments. This model features the Parallax Pure UST 0.6 surface, which is specifically engineered for ultra short-throw (UST) projectors with a throw ratio of 0.4:1 or less. Utilizing advanced ambient light rejecting (ALR) technology, the screen employs a micro-layered optical lens system to maintain high contrast and brightness even in brightly lit rooms. This surface includes a special saw-toothed layer that blocks light from above, allowing the screen to mimic the appearance of a television without the glare typically caused by windows or overhead lighting. The 92-inch diagonal screen is housed in a 2.5" thick Pro-Trim aluminum frame, which is finished in black fabric to absorb surrounding light and improve image definition. For professional AV installations, the screen arrives unassembled and is designed for easy installation using O-rings to secure the surface to the frame.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Product Weight | 28 lbs (12.7 kg) |
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Screen Width | 80 in (203.2 cm) |
| Shipping Dimensions | 94" x 8" x 9" (238.8 x 20.3 x 22.9 cm) |
| Shipping Weight | 28 lbs (12.7 kg) |
| Size | 45" x 80" or 92" diagonal |
| Viewing Angle | 80° |
All other specifications 14
| Application | Wall |
| Federal Ops Country of Origin | US |
| Frame Type | Pro-Trim |
| Gain | 0.6 |
| Mounting Method | Wall Bracket |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Pure UST 0.6 |
| TAA Compliant | Yes |
| UPC | 717068440432 |
| Certifications | TAA |
| Warranty | 5 years |
Resources
Questions about this part
What projector throw ratio does the Parallax Pure UST 0.6 fit?
The Parallax Pure UST 0.6 surface is specifically designed for ultra short-throw projectors with a throw ratio of 0.4:1 or less.
Is this screen suitable for rooms with high ambient light?
Yes. The Parallax Pure UST 0.6 uses ambient light rejecting (ALR) technology with a saw-toothed-shaped layer to block light from above, preserving bright, high-contrast images.
How is the screen surface attached to the frame?
The screen surface attaches to the aluminum Pro-Trim frame using O-rings.
What is the difference between this and the Parallax Pure 0.8 surface?
While the UST 0.6 is for ultra short-throw projectors (0.4:1 or less), the Parallax Pure 0.8 is designed for standard throw projectors with a 1.5:1 ratio or greater.
Which documentation is needed for a submittal?
For technical submittals, you can use the Parallax Specification Sheet or the Parallax CAD Models available in the Resources tab.
