Da-Lite Parallax, 40.5" x 95" with Parallax Pure 0.8
Cinemascope fixed frame screen with Parallax Pure 0.8 Ambient Light Rejecting surface, 95" x 40.5" size

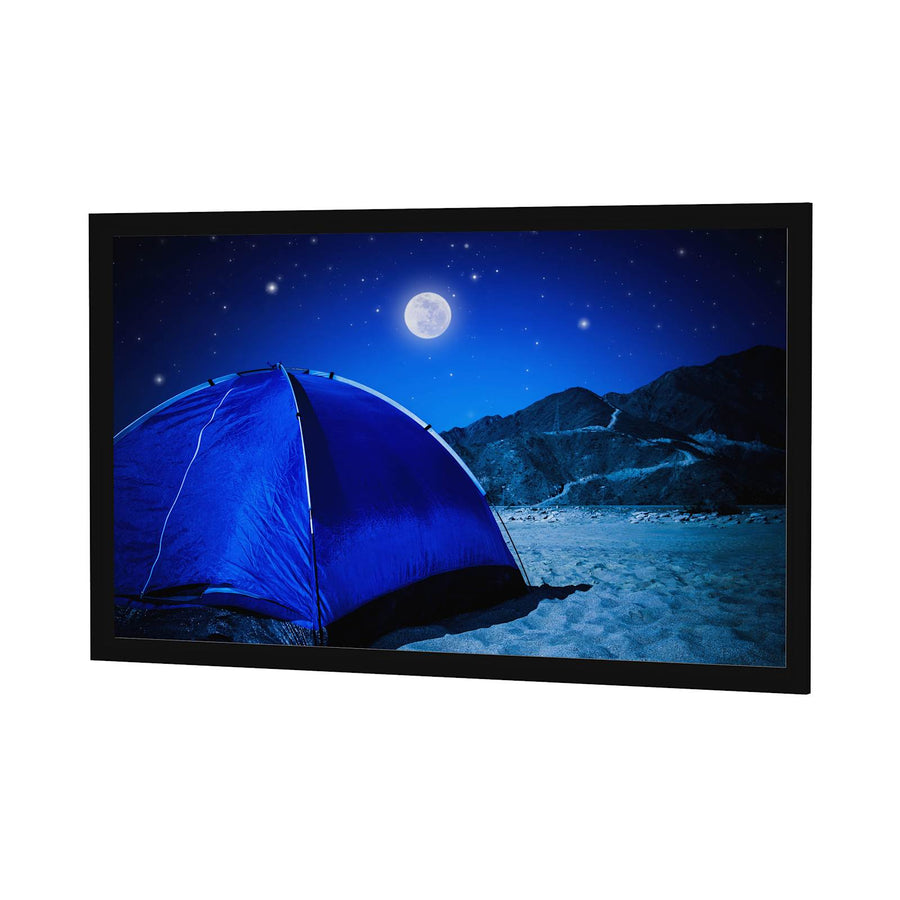

The Da-Lite 28853V is a fixed frame projector screen featuring a 2.35:1 Cinemascope format designed for high-performance Pro AV environments. Measuring 95" wide by 40.5" high (103" diagonal), this screen utilizes the Parallax Pure 0.8 surface, which is specifically engineered for standard throw projectors with a throw ratio of 1.5:1 or greater. This Ambient Light Rejecting (ALR) technology uses a micro-layered optical lens system with a saw-toothed-shaped layer to block overhead light, preserving high-contrast images in brightly lit rooms. The 2.5" thick aluminum frame is finished with black Pro-Trim® fabric to absorb surrounding light and enhance visual impact. This TAA-compliant unit is designed for wall mounting but can be flown using spreader bars. The screen surface attaches to the Pro-Trim frame using O-rings and ships unassembled to simplify the installation process in residential or professional settings.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Product Weight | 30 lbs (13.6 kg) |
| Screen Diagonal | 103 in (261.6 cm) |
| Screen Height | 40.5 in (102.9 cm) |
| Screen Width | 95 in (241.3 cm) |
| Shipping Dimensions | 109" x 8" x 9" (276.9 x 20.3 x 22.9 cm) |
| Shipping Weight | 30 lbs (13.6 kg) |
| Size | 40.5" x 95" or 103" diagonal |
| Viewing Angle | 85° |
All other specifications 14
| Application | Wall |
| Federal Ops Country of Origin | US |
| Frame Type | Pro-Trim |
| Gain | 0.8 |
| Mounting Method | Wall Bracket |
| Projection Type | Front Projection |
| Screen Format | Cinemascope (2.35:1) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Pure 0.8 |
| TAA Compliant | Yes |
| UPC | 717068439832 |
| Certifications | TAA |
| Warranty | 5 years |
Resources
Questions about this part
Will this Parallax screen work with my projector throw ratio?
The Parallax Pure 0.8 surface included with this 28853V SKU is designed for standard throw projectors with a ratio of 1.5:1 or greater. For ultra short-throw projectors with a 0.4:1 ratio or less, a different Parallax Pure UST 0.6 surface is required.
What is the difference between the Parallax Pure 0.8 and 0.6 surfaces?
The Parallax Pure 0.8 is intended for standard throw applications, while the Parallax Pure UST 0.6 is specifically designed for ultra short-throw (UST) projection environments.
Does this screen come assembled?
The 28853V ships unassembled to simplify the installation process. The screen surface is designed to be attached to the Pro-Trim frame using O-rings.
What kind of installation is required for the 28853V?
This is a wall-mounted fixed frame screen. It can be mounted using a wall bracket or flown in professional environments using spreader bars.
Is this screen suitable for bright rooms?
Yes, the Parallax Pure 0.8 surface uses Ambient Light Rejecting (ALR) technology, including a saw-toothed-shaped layer to block light from above, helping to maintain high-contrast images in high ambient light environments.
