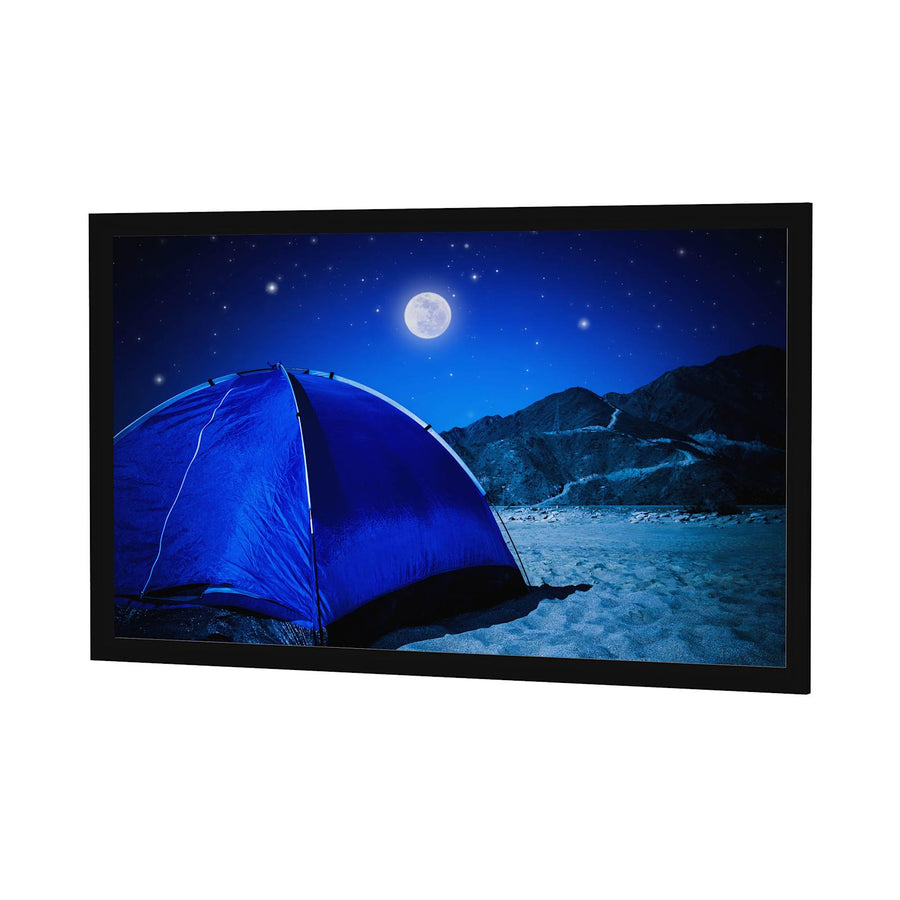

Da-Lite Parallax, 37.5" x 88" with Parallax Pure 0.8
Cinemascope fixed frame screen, 37.5" x 88" dimensions, featuring Parallax Pure 0.8 Ambient Light Rejecting surface
The Da-Lite 28852V is a 37.5" x 88" (96" diagonal) fixed frame screen designed for high-performance projection in environments with ambient light. Featuring a 2.35:1 Cinemascope format, this screen is an ideal solution for professional AV installations and residential cinema setups. The Parallax series utilizes a 2.5" thick aluminum frame equipped with a Pro-Trim finish, which helps absorb surrounding light to enhance image contrast. This specific model includes the Parallax Pure 0.8 surface, which utilizes a micro-layered optical lens system to reject ambient light, including light from above, to maintain high-resolution imagery. The screen surface is secured to the frame using O-rings for a stable, professional finish. Designed for front projection, the 85° viewing angle and 0.8 gain surface provide a viewing experience that mimics a television without the interference of glare from windows or overhead lighting fixtures. This TAA-compliant product arrives unassembled for easy installation and is backed by a 5-year warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Product Weight | 28 lbs (12.7 kg) |
| Screen Diagonal | 96 in (243.8 cm) |
| Screen Height | 37.5 in (95.3 cm) |
| Screen Width | 88 in (223.5 cm) |
| Shipping Weight | 28 lbs (12.7 kg) |
| Size | 37.5" x 88" or 96" diagonal |
| Viewing Angle | 85° |
| Application | Wall |
All other specifications 11
| Federal Ops Country of Origin | US |
| Frame Type | Pro-Trim |
| Gain | 0.8 |
| Mounting Method | Wall Bracket |
| Projection Type | Front Projection |
| Screen Format | Cinemascope (2.35:1) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Pure 0.8 |
| Certifications | TAA |
| Warranty | 5 years |
Resources
Questions about this part
Is this screen compatible with ultra short-throw projectors?
No, this 28852V model uses the Parallax Pure 0.8 surface intended for standard throw projectors with a 1.5:1 throw ratio or greater. For ultra short-throw applications, you would require a Parallax Pure UST 0.6 surface.
How is the screen surface attached to the frame?
The Parallax screen surface is secured to the 2.5" aluminum frame using O-rings, ensuring a taut and professional mounting.
What is required for installation of the 28852V?
The unit ships unassembled and is intended for wall mounting via a wall bracket. For more details on the specific installation process, refer to the Parallax Instructions PDF.
Will this screen work in a room with significant ambient light?
Yes, the Parallax Pure 0.8 surface uses micro-layered optical technology and a saw-toothed shape to block overhead light, maintaining high contrast in brightly lit environments.
What documentation is available for submittals and planning?
You can access the Parallax Specification Sheet, CAD Models, and CSI 3-Part Specifications through the Resources tab to assist with technical planning.
