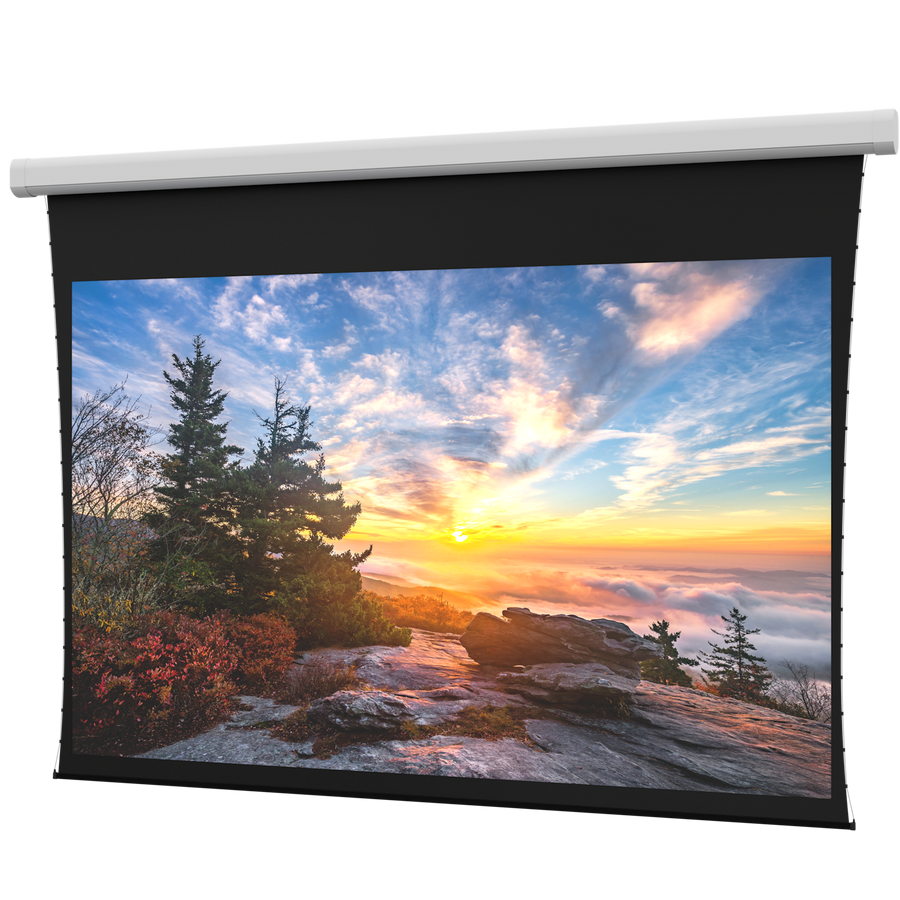

Da-Lite Myriad Reveal, 94.5" x 168" with HD Progressive ReView 0.9 - DL100105EL
94.5" x 168" rear projection screen with HD Progressive ReView 0.9 surface, 220V motor, and standard black drop
The Da-Lite DL100105EL is a large venue, electric projection screen designed for high-performance rear projection in professional environments. This Myriad Reveal series model features a 94.5" x 168" (240 x 426.7 mm) screen area with a 193" (490.2 cm) diagonal. It is configured with an HD Progressive ReView 0.9 surface, optimized for high-resolution rear projection applications. This specific SKU is built for international use, featuring a 220V (50Hz) motor for export. The system is TAA compliant and utilizes low voltage control for integrated operation. Installation is streamlined via adjustable mounting brackets that allow for ±0.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering. This unit is designed for both ceiling and wall mounting applications, making it a versatile choice for lecture halls, hotel ballrooms, and large conference centers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 193 in (490.2 cm) |
| Screen Height | 94.5 in (240 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 204" x 13" x 20.25" (518.2 x 33 x 51.4 cm) |
| Shipping Weight | 400 lbs (181.4 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| TAA Compliant | Yes |
| UPC | 840236911943 |
| Certifications | TAA |
Resources
Questions about this part
What is the screen size for the DL100105EL?
This model has a 94.5" x 168" (240 x 426.7 mm) viewing area and a 193 in (490.2 cm) diagonal.
Will this screen work with my existing control system?
The DL100105EL includes built-in low voltage control for integrated system management.
How do I adjust the screen position during installation?
The mounting brackets allow for vertical case leveling of ±0.5" (12.7 mm) and horizontal centering of ±6" (152.4 mm).
Is this screen suitable for international projects?
Yes, this SKU is TAA compliant and features a 220V (50Hz) motor designed for export.
What kind of projection does the ReView 0.9 surface support?
The HD Progressive ReView 0.9 surface is specifically designed for rear projection applications.
