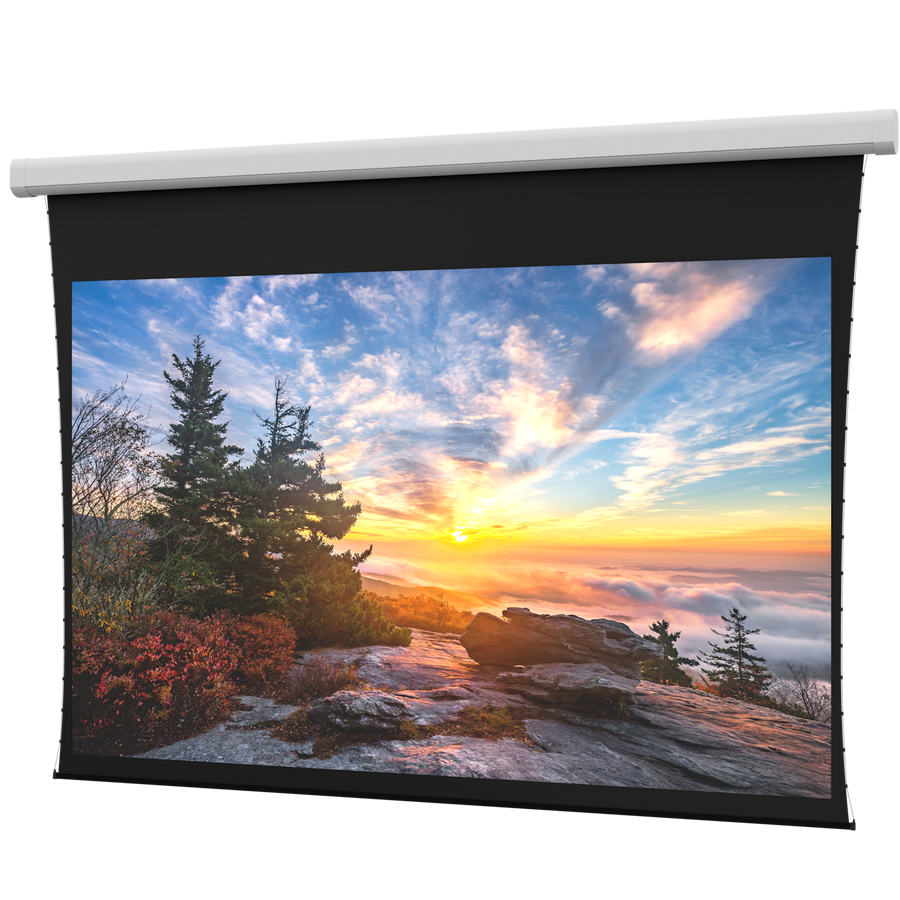

Da-Lite Myriad Reveal, 120" x 192" with Parallax Stratos 1.0 - DL100140EL
Large venue electric projection screen, 120" x 192" (226" diagonal) with Parallax Stratos 1.0 ambient light rejecting surface
The Da-Lite DL100140EL is a large venue electric projection screen measuring 120" x 192" (304.8 x 487.7 mm) with a 226" (574 cm) diagonal. This Myriad Reveal series screen features a Parallax Stratos 1.0 surface, providing high-resolution and ambient light rejecting (ALR) properties for optimized viewing in bright environments. Designed for front projection in large meeting spaces, conference centers, lecture halls, and ballrooms, this screen is available for both ceiling and wall mounting. It utilizes a 220V (50Hz) motor for export markets and includes low voltage control for integrated operation. The standard configuration for this model features a standard black drop. The Myriad Reveal series is highly versatile, offering built-in case leveling to assist with installation, including ±0.5" (12.7 mm) vertical adjustment and ±6" (152.4 mm) horizontal centering. This TAA compliant solution is manufactured in the US, making it suitable for federal projects and global rollouts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 230.25" x 13" x 20.25" (584.8 x 33 x 51.4 cm) |
| Shipping Weight | 452 lbs (205 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Parallax Stratos 1.0 |
| TAA Compliant | Yes |
| UPC | 840236912537 |
| Certifications | TAA |
Resources
Questions about this part
Will the DL100140EL fit my projection setup?
This 120" x 192" screen is designed for front projection and features a 16:10 wide aspect ratio with a Parallax Stratos 1.0 ambient light rejecting surface.
Where can the DL100140EL be mounted?
This Myriad Reveal screen is versatile and can be installed in either ceiling or wall mounting configurations.
Does this screen include the necessary motor and controls?
The DL100140EL includes a 220V (50Hz) motor for export and features built-in low voltage control for integration into your system.
Is this screen TAA compliant for government projects?
Yes, the DL100140EL is TAA compliant and was manufactured in the US.
Which documents are available for submittals?
You can access the Myriad Reveal Specification Sheet, CAD models, and installation instructions via the Resources tab on the product page.
