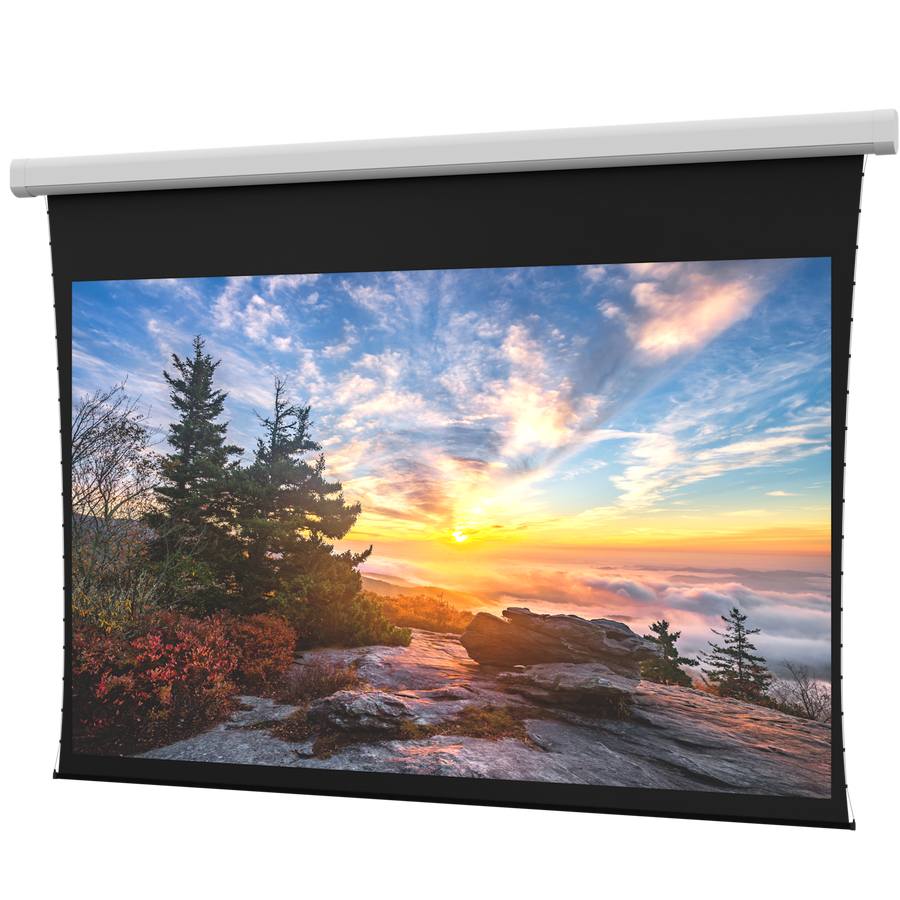

Da-Lite Myriad Reveal, 110" x 176" with HD Progressive 1.3 - DL100136EL
Electric front projection screen, 110" x 176" wide format, featuring HD Progressive 1.3 surface and TAA compliance
The DL100136EL is a Myriad Reveal series electric projection screen designed for large venue applications such as lecture halls, conference centers, and ballrooms. This wide format (16:10) unit features an HD Progressive 1.3 surface designed for high-resolution front projection. This specific model is TAA compliant and is configured for 220V (50Hz) export use with low voltage control. The screen is suitable for both ceiling and wall mounting applications. It utilizes a standard black drop configuration, which is common for non-tensioned models to provide a consistent border when retracted. Installation is streamlined by adjustable brackets that allow for ±.5" (12.7 mm) of vertical case leveling and ±6" (152.4 mm) of horizontal centering to ensure the screen is perfectly aligned in the installation space. This model is an ideal solution for large-scale professional AV environments requiring reliable, large-format projection surfaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 214" x 13" x 20.25" (543.6 x 33 x 51.4 cm) |
| Shipping Weight | 420 lbs (190.5 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 12
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| UPC | 840236912490 |
| Certifications | TAA |
Resources
Questions about this part
What is the exact size of the DL100136EL screen?
This Myriad Reveal model has a screen width of 176" (447 cm) and a height of 110" (279.4 cm), providing a 208" (528.3 cm) diagonal.
Will this screen work with my projection setup?
The DL100136EL is designed for front projection on a wide 16:10 aspect ratio surface with HD Progressive 1.3 features.
What are the mounting requirements for this screen?
This unit can be installed in either ceiling or wall applications and includes brackets with ±6" (152.4 mm) horizontal centering adjustability.
Is the DL100136EL TAA compliant?
Yes, this model is TAA compliant and is manufactured in the US.
What power requirement is needed for this model?
This specific SKU is configured with a 220V (50Hz) motor intended for export use.
