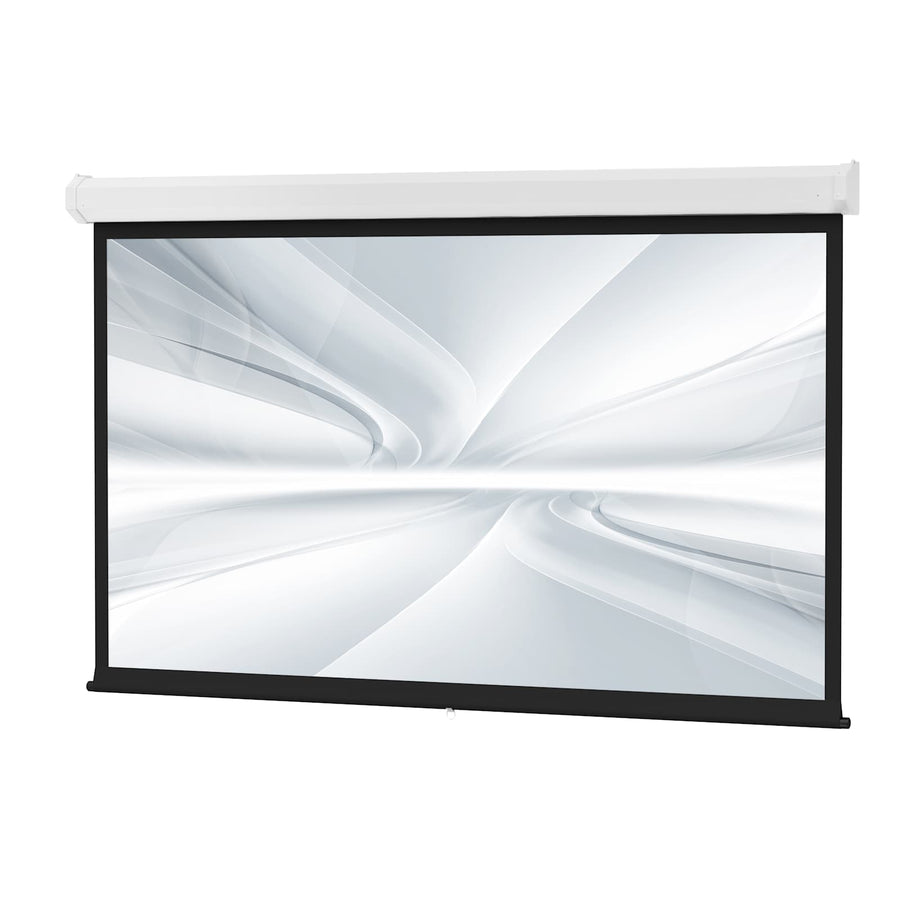

Da-Lite Model C with CSR, 78" x 139" with Matte White - 79888
Manual projection screen for ceiling or wall mounting, 78" x 139" size with Matte White surface
The Da-Lite Model C with CSR 79888 is a manual projection screen designed for large rooms that require a quiet, controlled return to the case. This 78" x 139" (159" diagonal) screen is engineered for front projection in an HDTV (16:9) format. It features a non-tensioned Matte White surface, providing standard resolution for various viewing environments. This model is suitable for both ceiling and wall applications. For installers requiring specific mounting configurations, Da-Lite offers optional floating mount brackets (SKU 77027 or 77028) that allow for left or right alignment on wall or ceiling studs. Because this unit utilizes the CSR mechanism, the screen must be fully extended to facilitate a controlled return. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 159 in (403.9 cm) |
| Screen Height | 78 in (198.1 cm) |
| Shipping Weight | 73 lbs (33.1 kg) |
| Size | 78" x 139" or 159" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Ceiling Trim Kit - 96384
96384$332.80
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80
Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
What is required to mount the Model C with CSR 79888 on a stud?
You can use Da-Lite Floating Mounting Brackets (SKU 77027 or 77028) to align the screen left or right on ceiling or wall studs.
Is the Da-Lite 79888 TAA compliant?
Yes, this model is TAA compliant and is manufactured in the USA.
Does this screen include a pull mechanism?
Yes, the Model C with CSR includes a pull cord for manual operation.
What mounting accessories are compatible with this screen?
Compatible accessories include Ceiling Trim Kits (SKU 96384), Pull Rods (SKU 74689), and various Mounting and Extension Brackets (such as SKU 40932, 40933, 40937, 40957, 98035, 98036, or 98037).
Can I use this for front or rear projection?
The 79888 is designed specifically for front projection applications.
