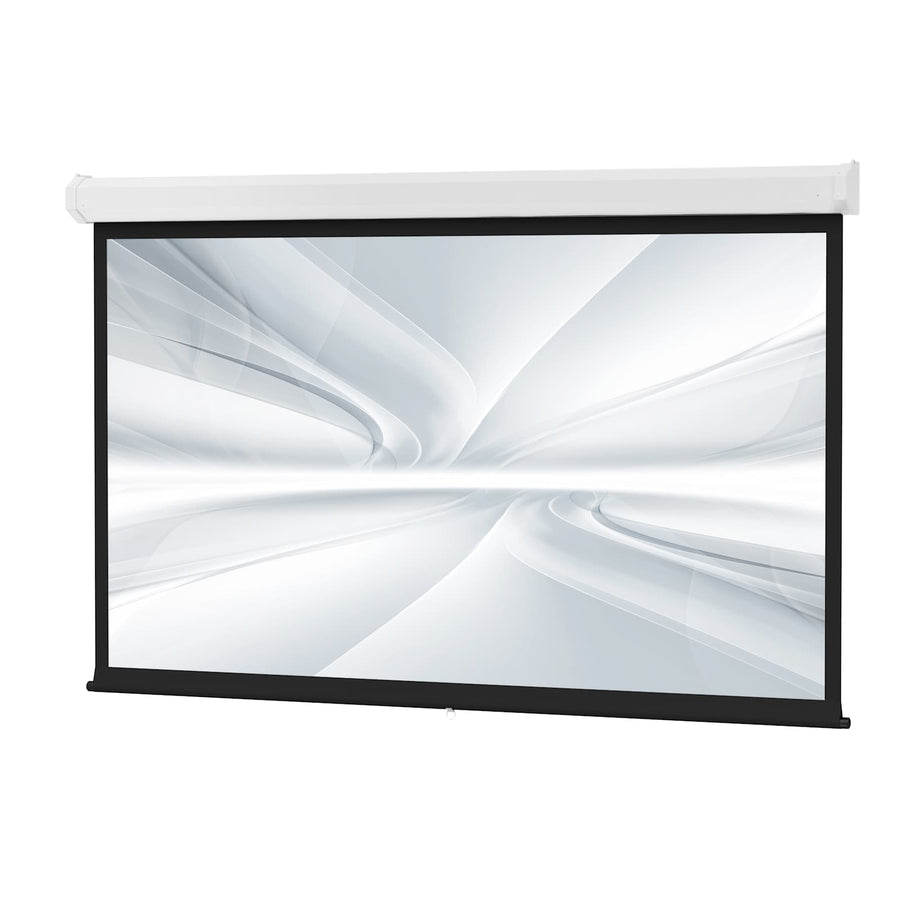

Da-Lite Model C with CSR, 72.5" x 116" with Matte White - 70296
Manual wide format projection screen, 72.5" x 116" with Matte White non-tensioned surface and quiet CSR return
The Da-Lite Model C with CSR 70296 is a manual projection screen designed for ceiling or wall mounting in larger rooms. This specific model features a 72.5" x 116" (137" diagonal) wide format (16:10) and is optimized for front projection using a Matte White non-tensioned surface. A key feature of the CSR series is the controlled screen return, which provides a quiet, smooth retraction into the case once the screen is fully extended. This unit is TAA compliant and manufactured in the US. For installation in a room with studs, you can use optional floating mount brackets, such as the 77027 or 77028, which allow for left or right alignment during setup.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 137 in (348 cm) |
| Screen Height | 72.5 in (184.2 cm) |
| Shipping Weight | 66 lbs (29.9 kg) |
| Size | 72.5" x 116" or 137" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80
Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
Will the Da-Lite 70296 fit a 16:10 aspect ratio display?
Yes, this screen is specifically configured in a Wide 16:10 format with a 72.5" height and 116" width.
What do I need to buy to mount this on a wall or ceiling stud?
You can use Da-Lite Floating Mounting Brackets, such as part number 77027 for white or 77028 for black, to allow for left or right alignment.
Is the screen surface tensioned?
No, this model features a Matte White non-tensioned surface intended for standard resolution front projection.
How does the CSR feature work during retraction?
The Controlled Screen Return (CSR) system ensures that when the screen is fully extended, it returns to the case in a quiet and controlled manner.
Which installation documents are available for submittals?
Installers can refer to the Model C with CSR Specification Sheet or the Model C with CSR Instructions for technical details and mounting guidance.
