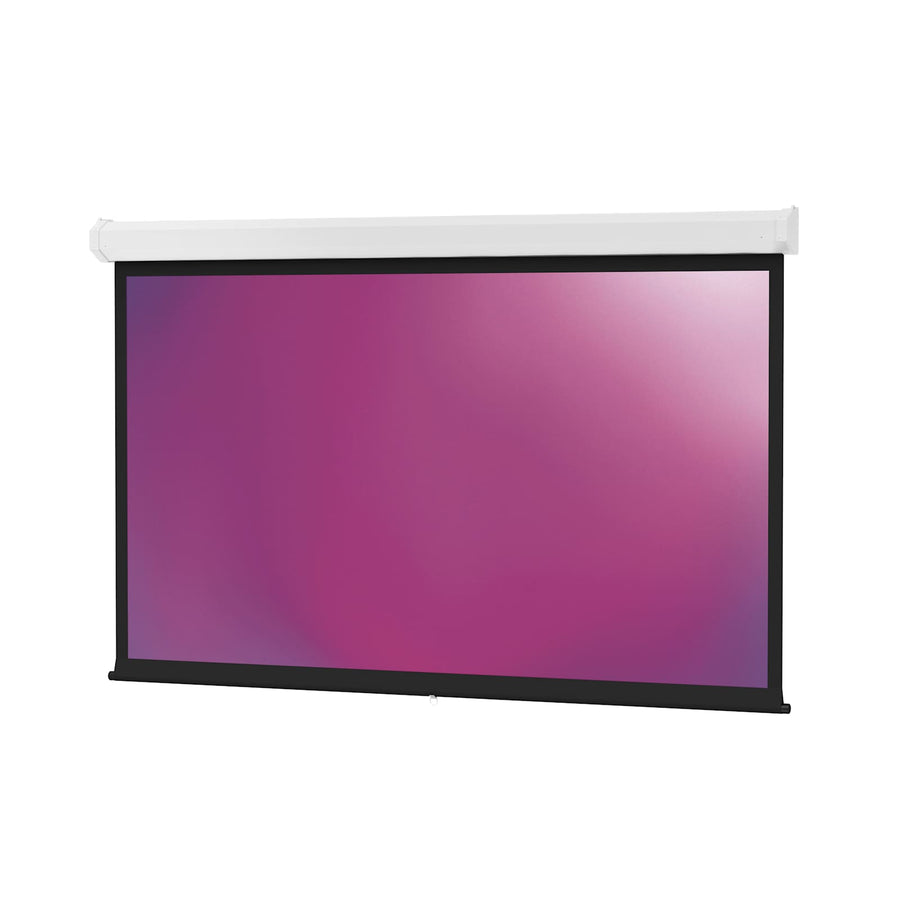

Da-Lite Model C, 87" x 139" with Matte White - 36449
Manual front projection screen with 87" x 139" dimensions and a Matte White non-tensioned surface
The Da-Lite Model C 36449 is a manual projection screen designed for both ceiling and wall mounting in larger rooms. This 164" diagonal (87" x 139") screen features a wide 16:10 aspect ratio and a standard resolution Matte White non-tensioned surface optimized for front projection. For smooth operation, the housing utilizes a heavy-duty spring assembly combined with nylon bushings and permanently lubricated steel ball bearings. This specific Model C configuration does not include the Controlled Screen Return (CSR) feature; installers seeking a quieter, smoother return to the case should look for the Model C with CSR. This unit is TAA compliant and is manufactured in the US. Standard finish is a white powder coat, though a black finish can be provided upon request.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 164 in (416.6 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Weight | 80 lbs (36.3 kg) |
| Size | 87" x 139" or 164" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Ceiling Trim Kit - 96384
96384$332.80
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80
Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
Will this screen fit my projection setup?
This is a front projection screen with a 16:10 Wide aspect ratio. It features an 87" x 139" surface area with a 164" diagonal.
Can I mount this screen on a wall or a ceiling?
Yes, the Model C is designed for both wall and ceiling applications. Floating mount brackets can be aligned to either the left or right side for installation.
What is the difference between this and the Model C with CSR?
This SKU (36449) is a standard manual screen. The Model C with CSR includes the Controlled Screen Return feature for a quieter and smoother return to the case.
What accessories are required for installation?
You can use Da-Lite 77027 or 77028 floating mounting brackets, or various mounting and extension brackets such as part number 40933, 40932, 40957, 98035, 98036, or 98037.
Which documentation is needed for submittals?
For technical details and installation requirements, you can refer to the Model C Specification Sheet or the Model C Instructions PDF.
